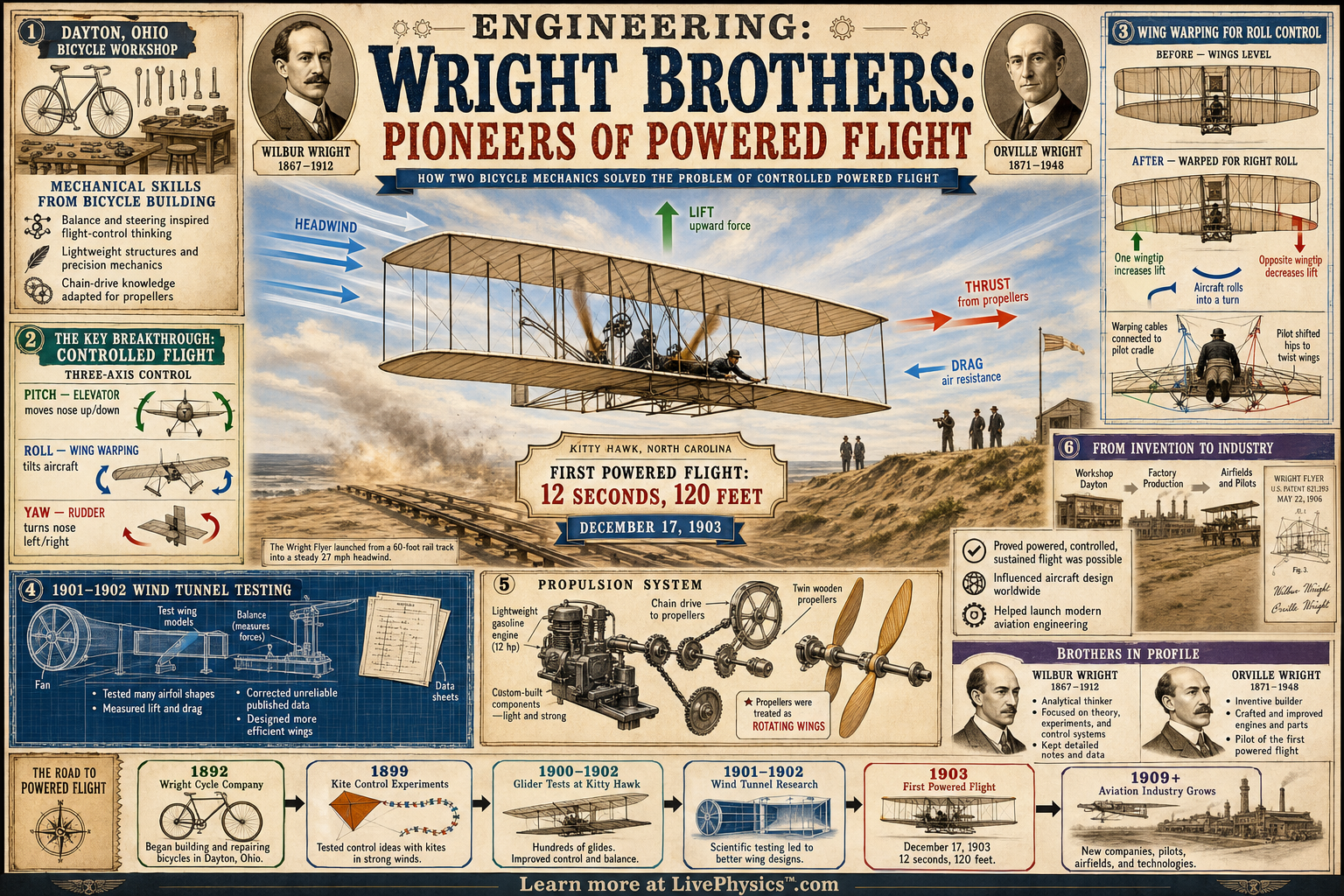

Wright Brothers: Pioneers of Powered Flight
Wing warping, wind tunnels, and Kitty Hawk 1903
Related Worksheets
Wilbur Wright and Orville Wright were bicycle builders from Dayton, Ohio who became pioneers of powered flight. Their workshop experience helped them think carefully about lightweight structures, chains, balance, and precise mechanical control. On December 17, 1903, at Kitty Hawk, North Carolina, their Wright Flyer made the first sustained, controlled, powered flight by a heavier than air machine. Their achievement matters because it turned flying from a dream into an engineering problem that could be tested, measured, and improved.
The Wright brothers succeeded by focusing on control as much as lift and power. They developed wing warping to roll the aircraft, used a movable rudder to help turn, and tested many wing shapes in a wind tunnel to improve lift and reduce drag. Their 1903 Flyer used a lightweight gasoline engine and two propellers driven by bicycle style chains. The ideas behind their work, including testing models, measuring forces, and refining designs, helped found the modern aviation industry.
Key Facts
- Wilbur Wright lived from 1867 to 1912, and Orville Wright lived from 1871 to 1948.
- The first powered flight took place at Kitty Hawk on December 17, 1903, lasting 12 seconds and traveling 120 ft.
- Lift force depends on air density, speed, wing area, and lift coefficient: L = 1/2 rho v^2 A C_L.
- Drag force also increases with speed squared: D = 1/2 rho v^2 A C_D.
- Average speed can be found with v = d/t, so the first flight averaged 120 ft / 12 s = 10 ft/s.
- The Wright Flyer used three axis control: roll by wing warping, yaw by rudder, and pitch by elevator.
Vocabulary
- Lift
- Lift is the upward aerodynamic force produced when air flows around a wing.
- Drag
- Drag is the aerodynamic force that acts opposite the motion of an aircraft through air.
- Wing warping
- Wing warping is a control method that twists the wings to change lift on each side and roll the aircraft.
- Wind tunnel
- A wind tunnel is a device that moves air over a model so engineers can measure forces and study airflow.
- Three axis control
- Three axis control means controlling pitch, roll, and yaw so an aircraft can be steered and stabilized.
Common Mistakes to Avoid
- Saying the Wright brothers only added an engine to a glider is wrong because their major breakthrough was controlled flight using wings, rudder, and elevator together.
- Confusing lift with thrust is wrong because lift supports the aircraft upward, while thrust pushes it forward through the air.
- Ignoring airspeed is wrong because lift and drag depend strongly on speed, and doubling speed can make aerodynamic forces about four times larger.
- Assuming the first flight was long and high is wrong because the first successful flight lasted only 12 seconds, but it proved sustained, controlled, powered flight was possible.
Practice Questions
- 1 The first Wright flight traveled 120 ft in 12 s. What was its average speed in ft/s and in miles per hour? Use 1 ft/s = 0.682 mph.
- 2 A model wing has area 0.50 m^2, air density 1.2 kg/m^3, speed 10 m/s, and lift coefficient 0.8. Use L = 1/2 rho v^2 A C_L to calculate the lift force.
- 3 Explain why the Wright brothers spent time building wind tunnels and testing wing shapes before trying powered flight.
