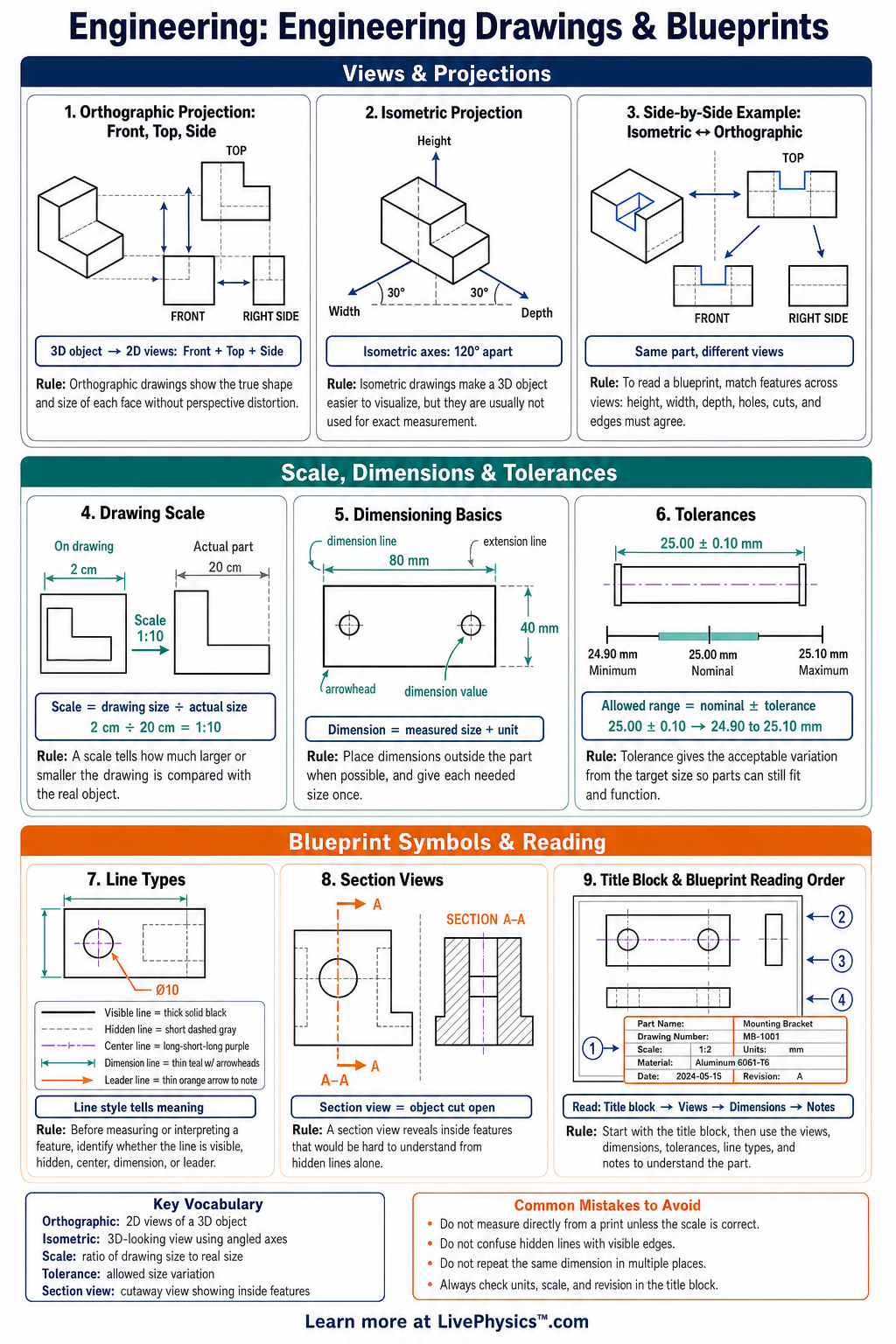

Engineering drawings and blueprints are technical communication tools that show how an object should be made, assembled, or inspected. This cheat sheet helps students read views, dimensions, scale, symbols, and notes without guessing. These skills are important in engineering, architecture, manufacturing, robotics, and construction.
A clear drawing lets different people build the same design correctly.
Key Facts
- Orthographic drawings usually show the front, top, and right-side views to describe a 3D object on flat paper.
- A dimension line shows size or distance, and the number on it gives the actual measurement of the feature.
- Scale compares drawing size to real size, such as 1:2 for half size or 2:1 for double size.
- Actual size can be found with actual size = drawing size x scale factor when the scale factor represents real size per drawing size.
- A tolerance gives the allowed variation from a dimension, such as 25.0 mm ± 0.2 mm meaning the part may range from 24.8 mm to 25.2 mm.
- Hidden lines are usually short dashed lines that show edges or features not visible from the current view.
- Centerlines mark the center of circles, holes, cylinders, or symmetry and are often drawn with alternating long and short dashes.
- The title block identifies the drawing name, part number, scale, units, date, drafter, revision, and other project information.
Vocabulary
- Blueprint
- A blueprint is a technical drawing that communicates the shape, size, materials, and instructions needed to build or inspect something.
- Orthographic Projection
- Orthographic projection is a drawing method that shows a 3D object in separate 2D views such as front, top, and side.
- Scale
- Scale is the ratio between a distance on the drawing and the corresponding real distance on the object.
- Dimension
- A dimension is a measured value on a drawing that tells the required size, location, or distance of a feature.
- Tolerance
- A tolerance is the allowed amount a measurement can vary while the part is still acceptable.
- Title Block
- A title block is the information box on a drawing that lists key details such as drawing title, scale, units, date, and revision.
Common Mistakes to Avoid
- Reading the drawing scale as the real size is wrong because scaled drawings are smaller or larger than the actual object.
- Mixing up front, top, and side views is wrong because each view shows different features from a specific direction.
- Ignoring units is wrong because 25 mm and 25 in describe very different sizes and can cause major build errors.
- Treating a tolerance as an exact target is wrong because tolerance describes an acceptable range around the nominal dimension.
- Dimensioning the same feature more than once is wrong because duplicate dimensions can conflict and confuse the builder.
Practice Questions
- 1 A drawing uses a scale of 1:4. If a line on the drawing is 6 cm long, what is the actual length of the part?
- 2 A hole is dimensioned as 12.0 mm ± 0.1 mm. What are the smallest and largest acceptable hole diameters?
- 3 A rectangular plate is 80 mm long and 50 mm wide. On a 1:2 scale drawing, what length and width should be drawn?
- 4 Why should an engineering drawing include multiple orthographic views instead of only one front view?
Understanding Engineering Drawings & Blueprints
A drawing works because every line follows a convention. Thick visible outlines show edges that can be seen from that direction. Thin lines carry dimensions, extension lines, and leaders that point to notes.
Dashed lines reveal internal holes, slots, or steps that would otherwise be hidden. A centerline is more than a marker.
It tells a machinist or builder where a circular feature is located and where a part is meant to be symmetrical. Mixing up these line types can lead to a part being cut in the wrong place.
The separate views must be read as linked evidence about one object. A width seen in the front view should match the width in the top view. A height shown on one view should agree with the related height on the side view.
Students can trace features between views by matching their position. For example, a hole near the upper left of the front view must appear at a corresponding location in the top or side view.
This skill is useful in design classes, robotics builds, woodworking, metalwork, and model making. It develops spatial thinking because the reader mentally rebuilds a solid object from flat shapes.
Dimensions are instructions, not measurements to take from a printed page. A drawing may be enlarged, reduced, photographed, or printed with slightly different margins. The written value remains the authority.
Units matter just as much. A length of twenty five could mean a tiny feature in millimetres or a large distance in inches. Good drawings avoid giving the same size in several places because conflicting numbers create uncertainty.
Dimensions are often measured from a chosen reference edge or centerline, called a datum. Using the same datum keeps features aligned and reduces the buildup of small errors across a part.
Tolerance explains the difference between a perfect design value and a part that can actually be manufactured. No drill, saw, printer, or machine makes every piece exactly identical. A hole that is too small may reject a bolt.
A shaft that is too large may not fit into its hole. Very tight tolerances can make parts costly because they require careful equipment and inspection. Students should notice whether a tolerance applies to one feature, a group of dimensions, or the whole drawing.
Before using any drawing, check the title block for the current revision, units, scale, and material notes. An older revision can look nearly identical while containing a critical change to a hole size, thickness, or assembly detail.
