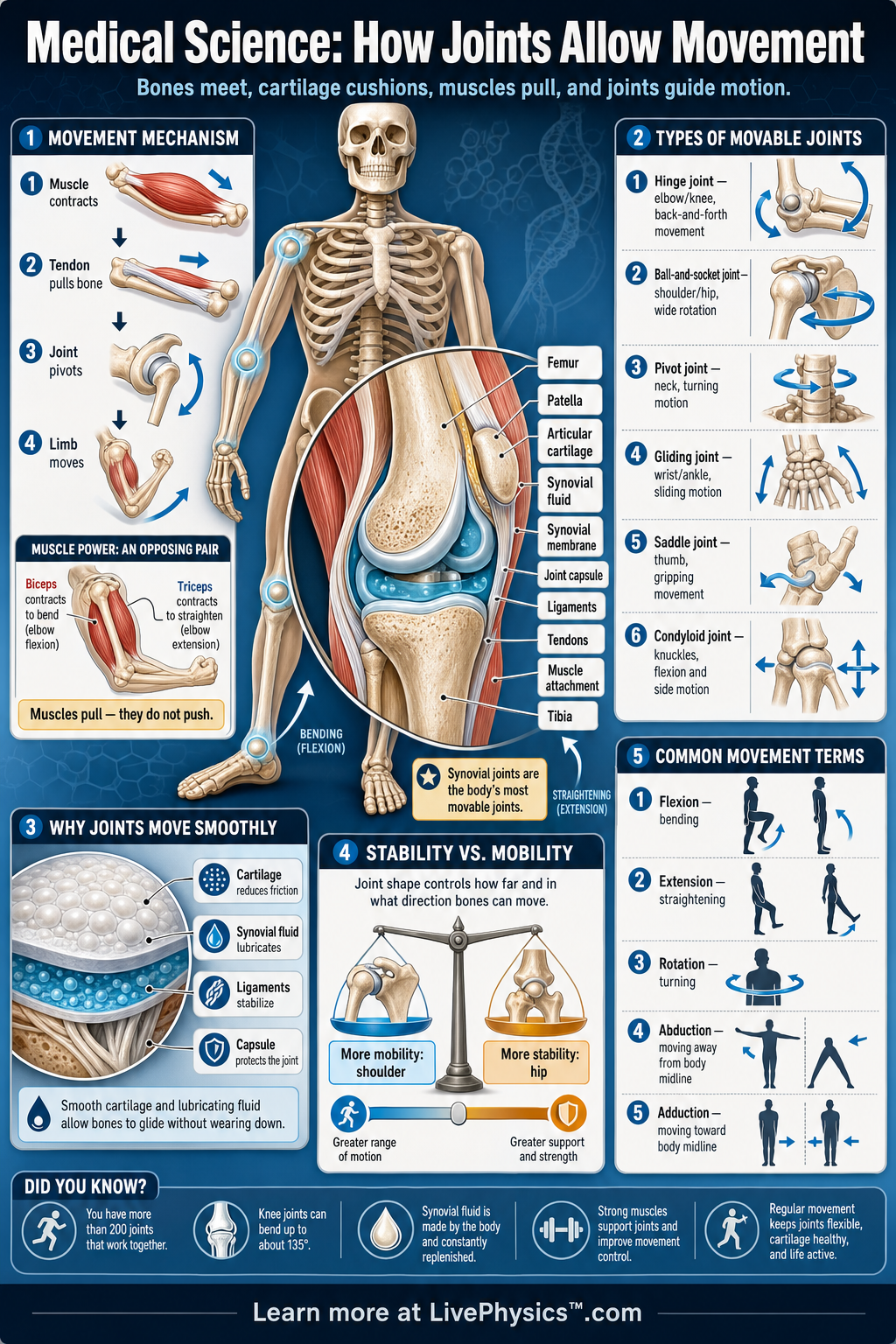

How Joints Allow Movement
Joints Allow Movement
Related Worksheets
Joints are the places where bones meet, and they make body movement possible while still giving the skeleton support. Some joints allow only a little motion, while synovial joints such as the knee, shoulder, elbow, and hip allow large, controlled movements. Understanding how joints work helps explain walking, throwing, bending, and many common injuries. It also connects anatomy with physics because joints use forces, levers, friction reduction, and stable alignment.
Key Facts
- A joint is an articulation where two or more bones meet.
- Synovial joints contain synovial fluid, which reduces friction between moving surfaces.
- Articular cartilage spreads force and protects the ends of bones from direct rubbing.
- Ligaments connect bone to bone and help stabilize a joint.
- Tendons connect muscle to bone, allowing muscle contraction to move the skeleton.
- Torque at a joint is τ = rF sinθ, where r is lever arm length, F is force, and θ is the angle between them.
Vocabulary
- Synovial joint
- A freely movable joint that contains a fluid-filled cavity between bones.
- Cartilage
- A smooth, flexible tissue that covers bone ends and reduces friction in a joint.
- Ligament
- A strong band of connective tissue that connects one bone to another bone.
- Tendon
- A tough connective tissue cord that connects muscle to bone.
- Range of motion
- The amount of movement a joint can make in one or more directions.
Common Mistakes to Avoid
- Confusing ligaments with tendons is wrong because ligaments connect bone to bone, while tendons connect muscle to bone.
- Thinking bones slide directly on bones is wrong because healthy synovial joints have cartilage and synovial fluid that reduce friction and protect the bone surfaces.
- Assuming all joints move freely is wrong because some joints, such as skull sutures, allow little or no movement.
- Ignoring joint alignment when analyzing movement is wrong because forces that are off-center create torque and can increase stress on cartilage, ligaments, and tendons.
Practice Questions
- 1 A muscle pulls on a tendon with a force of 300 N at a perpendicular distance of 0.04 m from the knee joint center. What torque does it produce about the knee?
- 2 During standing, one knee supports a force of 600 N spread over a cartilage contact area of 0.003 m². What pressure acts on the cartilage, using P = F/A?
- 3 Explain why the knee needs both smooth cartilage and strong ligaments to allow movement without becoming unstable.
