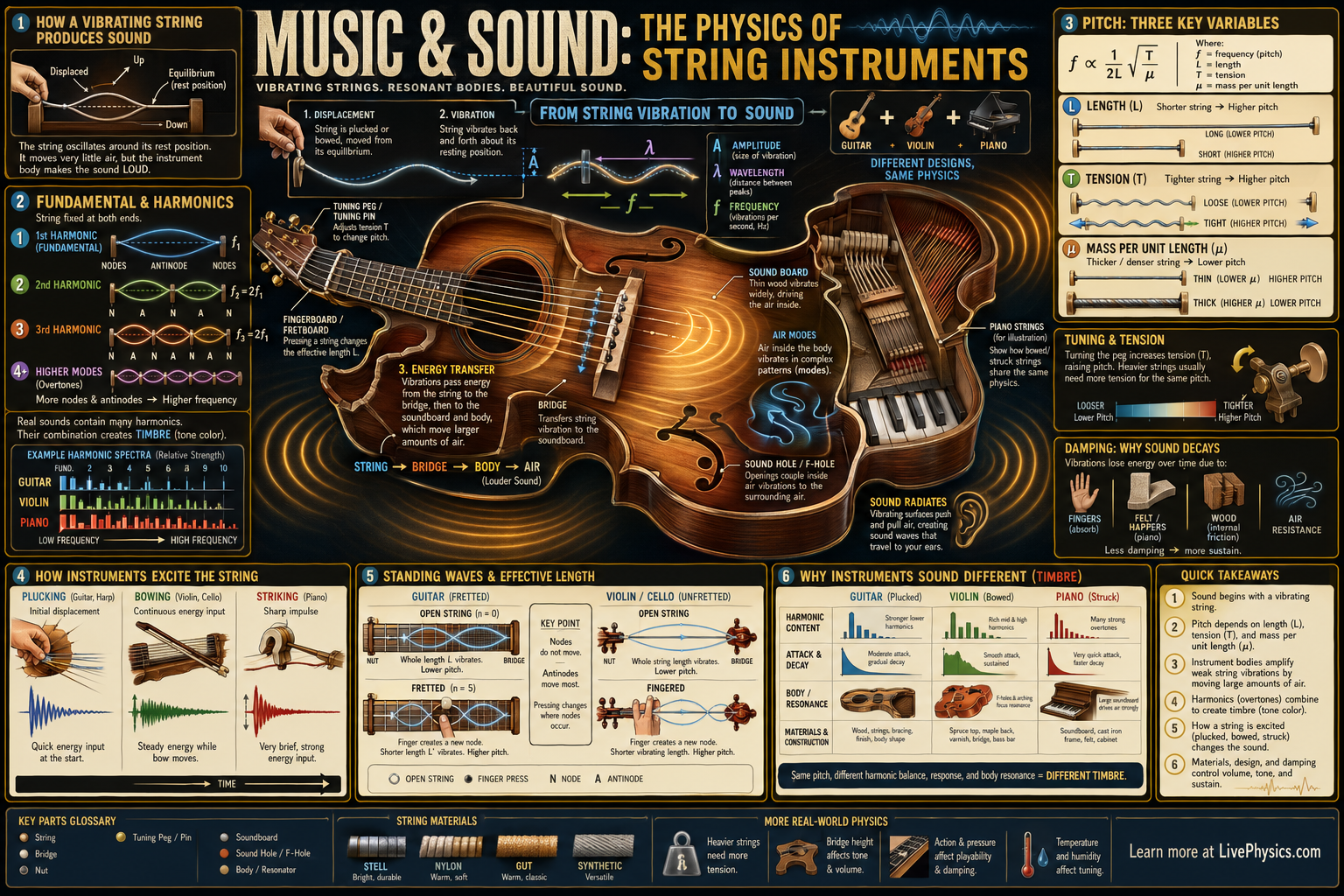

The Physics of String Instruments
Length, Tension, and Vibration
Related Tools
Related Labs
Related Worksheets
String instruments make sound by turning the motion of a stretched string into vibrations in the air. When a string is plucked, bowed, or struck, it vibrates at specific frequencies that our ears hear as pitch. The length, tension, and mass of the string all affect how fast it vibrates. This is why a violin, guitar, and piano can produce such different sounds even though all use strings.
A vibrating string alone does not move enough air to sound very loud, so the instrument body plays a crucial role. The bridge transfers the string's motion into a soundboard or hollow body, which resonates and amplifies the sound. Different vibration patterns called harmonics give each instrument its unique tone color. The physics of string instruments connects waves, resonance, energy transfer, and musical design.
Key Facts
- For a stretched string, wave speed is v = sqrt(T/mu), where T is tension and mu is linear mass density.
- The fundamental frequency of a string fixed at both ends is f1 = v/(2L).
- Higher harmonics occur at fn = n(v/2L) = nf1, where n = 1, 2, 3, ...
- Increasing tension raises pitch because a larger T makes v and therefore f larger.
- Shortening the vibrating length raises pitch because f is inversely proportional to L.
- A larger instrument body or soundboard increases loudness by coupling string vibrations to more air through resonance.
Vocabulary
- Frequency
- Frequency is the number of vibrations per second, measured in hertz, and it determines the pitch of a sound.
- Harmonic
- A harmonic is a vibration mode of a string whose frequency is a whole-number multiple of the fundamental frequency.
- Resonance
- Resonance is the strong response that occurs when an object vibrates most easily at a particular frequency.
- Tension
- Tension is the pulling force along a string that affects how fast waves travel on it.
- Soundboard
- A soundboard is the part of a string instrument that vibrates with the strings and helps radiate sound into the air.
Common Mistakes to Avoid
- Thinking the string alone makes the full sound, which is wrong because the string by itself moves very little air and the instrument body is needed to amplify the vibration.
- Assuming thicker strings always produce higher notes, which is wrong because greater linear mass density usually lowers frequency if length and tension stay the same.
- Forgetting that shortening a string raises pitch, which is wrong because the fundamental frequency f1 = v/(2L) increases when L decreases.
- Confusing loudness with pitch, which is wrong because pitch depends mainly on frequency while loudness depends more on vibration amplitude and sound radiation.
Practice Questions
- 1 A guitar string has length L = 0.65 m and wave speed v = 260 m/s. What is its fundamental frequency?
- 2 A piano string keeps the same wave speed, but its vibrating length is reduced from 1.20 m to 0.80 m. If its original fundamental frequency was 110 Hz, what is the new fundamental frequency?
- 3 A violin and a guitar can play the same note, but they still sound different. Explain using harmonics, resonance, and the instrument body.
