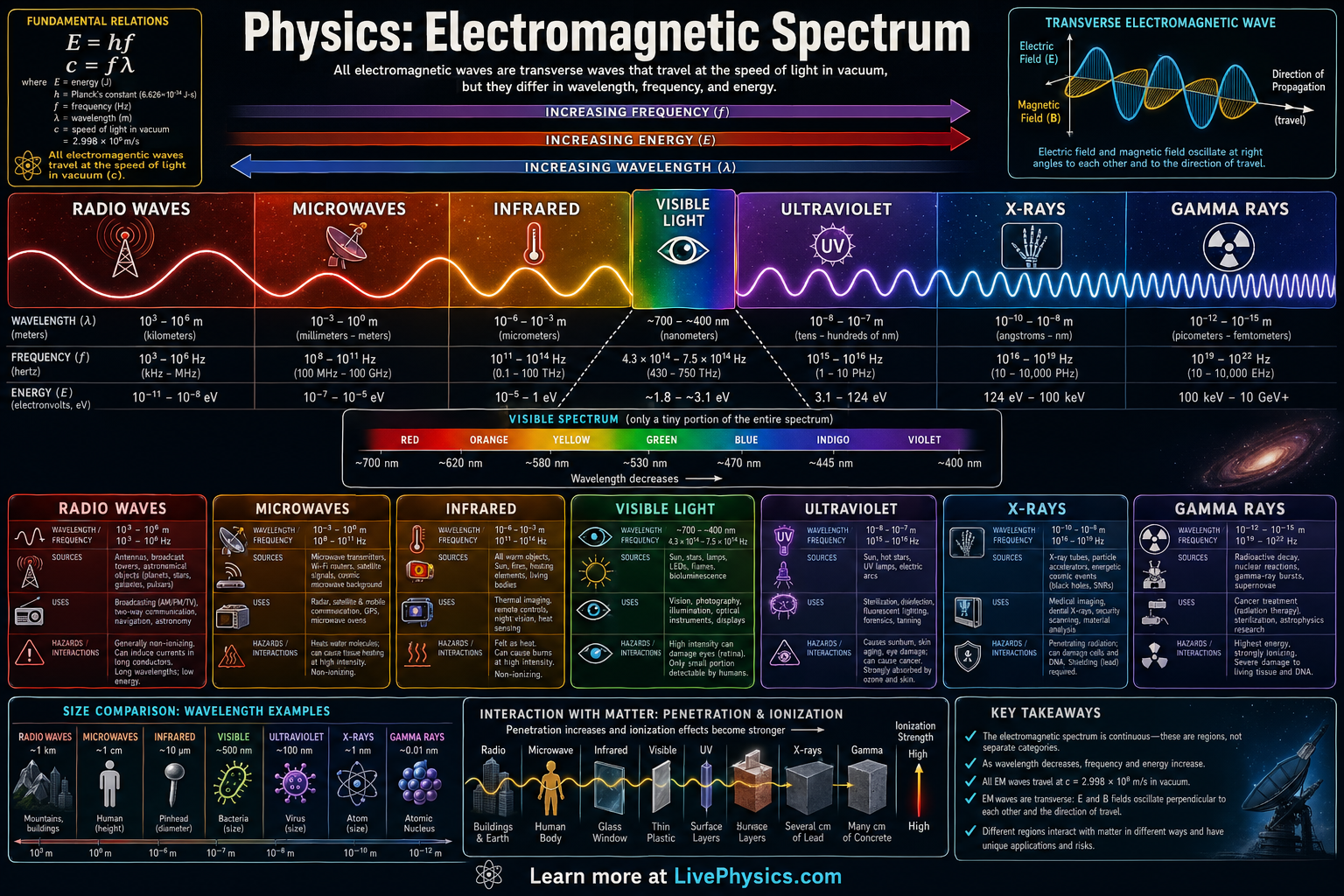

Electromagnetic Spectrum

Radio Waves to Gamma Rays

Download PNG Save to Pinterest

Related Tools

Wave Explorer

Related Labs

Related Worksheets

Related Cheat Sheets

All light - visible and invisible - is electromagnetic radiation: oscillating electric and magnetic fields traveling through space at c = 3 × 10⁸ m/s. The electromagnetic spectrum organizes this radiation by wavelength (or equivalently, frequency and energy). Visible light occupies a tiny slice in the middle; radio waves stretch to kilometers in length while gamma rays are smaller than an atomic nucleus.

The relationship between wavelength and frequency is $c = f\lambda$ : as wavelength gets shorter, frequency rises, and so does photon energy ( $E = hf$ ). This is why gamma rays are ionizing and dangerous while radio waves pass harmlessly through us. Understanding the spectrum is essential for technologies from MRI to fiber optics to astronomy.

Key Facts

Speed of light in vacuum: c = 3 × 10⁸ m/s
Wave equation: $c = f\lambda$ (speed = frequency $\times$ wavelength)
Photon energy: $E = hf$ ( $h = 6.626 \times 10^{-34}$ J·s)
From longest to shortest wavelength: Radio, Microwave, Infrared, Visible, UV, X-ray, Gamma
Visible light spans roughly 400 nm (violet) to 700 nm (red).
Higher frequency = shorter wavelength = more energy per photon.

Vocabulary

Wavelength (λ): Distance between successive wave crests, measured in meters (or nm for light).
Frequency (f): Number of wave cycles per second, measured in hertz (Hz).
Photon: A discrete packet (quantum) of electromagnetic energy.
Ionizing radiation: High-energy radiation (UV, X-ray, gamma) with enough energy per photon to remove electrons from atoms.
Electromagnetic wave: A transverse wave consisting of oscillating electric and magnetic fields that propagates without a medium.

Common Mistakes to Avoid

Thinking higher frequency means lower energy. It's the opposite: $E = hf$ means frequency and energy are directly proportional.
Confusing the speed of light (constant in vacuum) with wavelength or frequency, which both change when light enters a new medium.
Believing 'light' refers only to visible light. Physicists use 'light' to mean all electromagnetic radiation.
Assuming all EM radiation is harmful. Low-frequency radio waves and microwaves carry far too little energy per photon to damage DNA.

Practice Questions

1 A radio station broadcasts at 100 MHz. What is the wavelength of its waves?
2 Blue light has a wavelength of 450 nm. Calculate its frequency and the energy of one photon.
3 Why are X-rays used in medical imaging while radio waves pass through the body without forming an image?
