Science: The Electromagnetic Spectrum Worksheet

Question 1

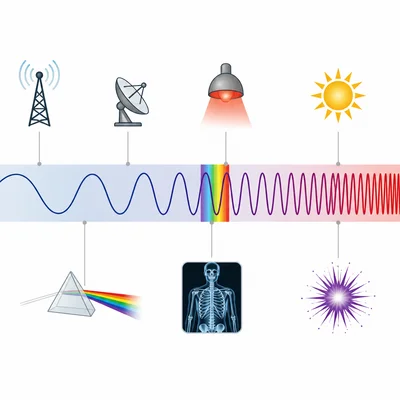

What is the electromagnetic spectrum?

Accepted Answer

The electromagnetic spectrum is the full range of electromagnetic waves arranged by their wavelengths and frequencies. It includes radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays.

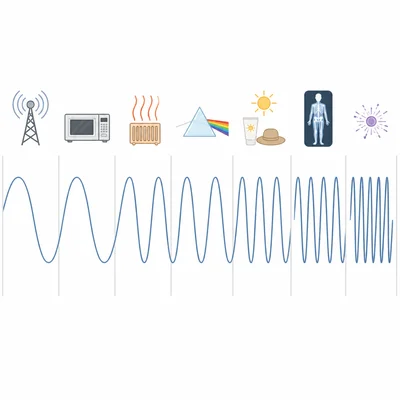

Question 2

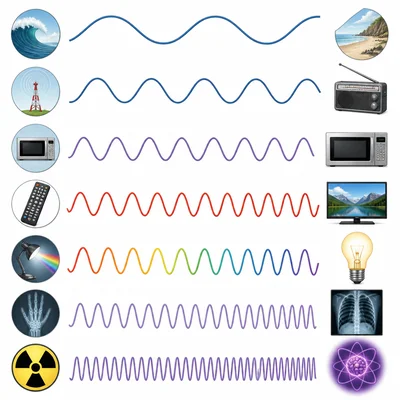

List the seven main types of electromagnetic waves in order from longest wavelength to shortest wavelength.

Accepted Answer

The seven main types in order from longest wavelength to shortest wavelength are radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays.

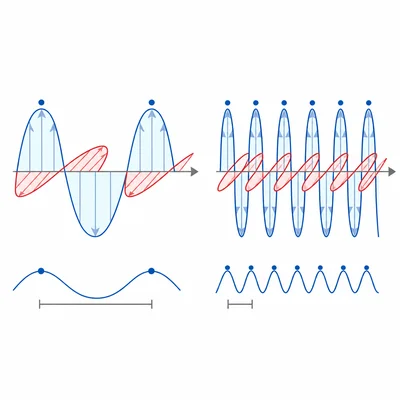

Question 3

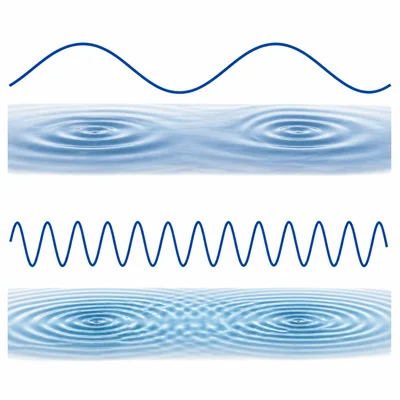

How are wavelength and frequency related in the electromagnetic spectrum?

Accepted Answer

Wavelength and frequency are inversely related. As wavelength gets shorter, frequency gets higher.

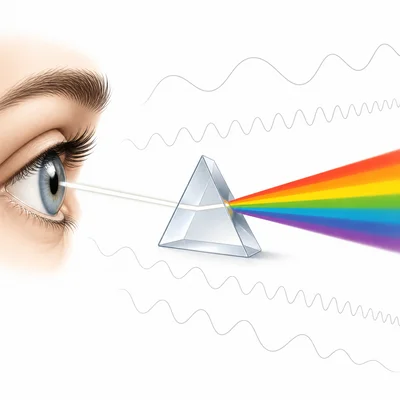

Question 4

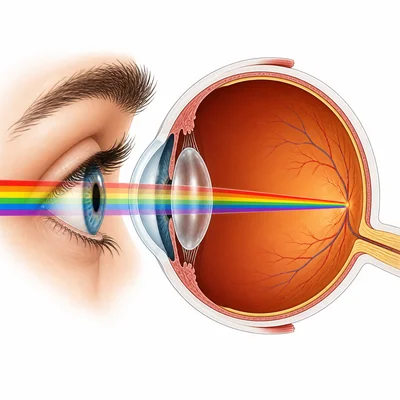

Which part of the electromagnetic spectrum can the human eye detect?

Accepted Answer

The human eye can detect visible light. This is the small part of the electromagnetic spectrum that includes the colors of the rainbow.

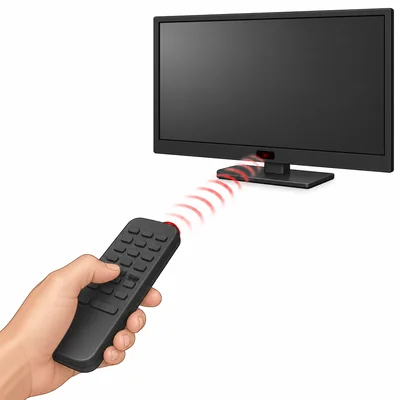

Question 5

A television remote control often uses infrared waves. What is one reason infrared is useful for this job?

Accepted Answer

Infrared is useful for remote controls because it can send signals over short distances without wires. Devices can detect the infrared signal and respond to the command.

Question 6

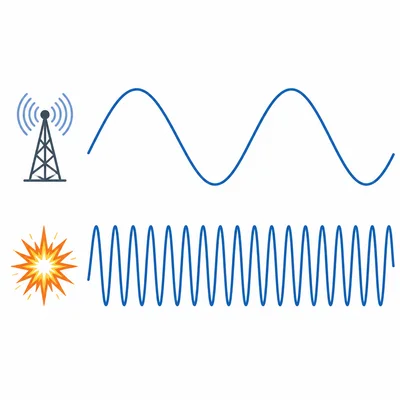

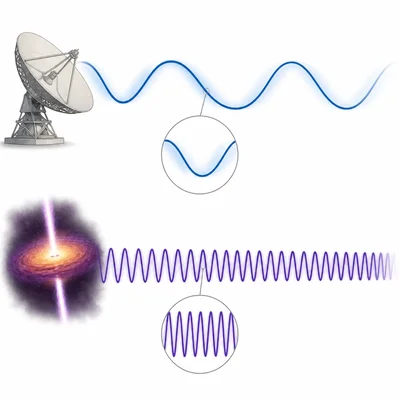

Radio waves and gamma rays are both electromagnetic waves. Describe one similarity and one difference between them.

Accepted Answer

One similarity is that both are electromagnetic waves and both can travel through space. One difference is that radio waves have very long wavelengths and low frequencies, while gamma rays have very short wavelengths and very high frequencies.

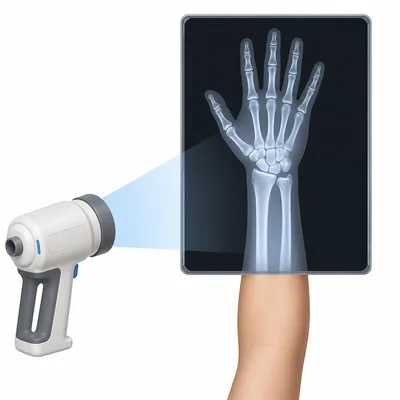

Question 7

Why are X-rays useful in medicine?

Accepted Answer

X-rays are useful in medicine because they can pass through soft tissue more easily than through bone. This helps doctors create images of bones and some internal structures.

Question 8

Ultraviolet waves from the Sun can be harmful. What is one way people protect themselves from too much ultraviolet exposure?

Accepted Answer

People can protect themselves from too much ultraviolet exposure by using sunscreen, wearing protective clothing, or staying in the shade. These actions help reduce damage to the skin.

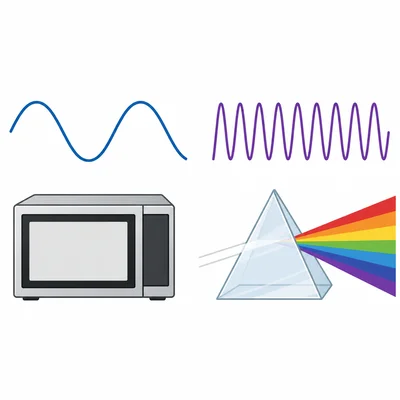

Question 9

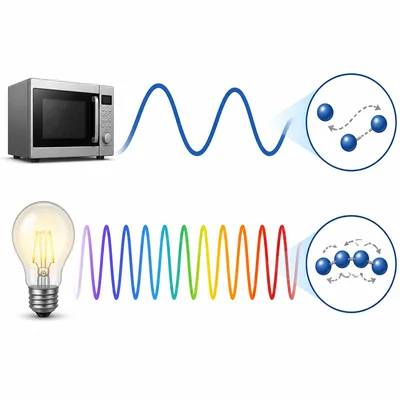

Compare visible light and microwaves. Which one has the shorter wavelength, and which one has the higher frequency?

Accepted Answer

Visible light has the shorter wavelength and the higher frequency. Microwaves have longer wavelengths and lower frequencies than visible light.

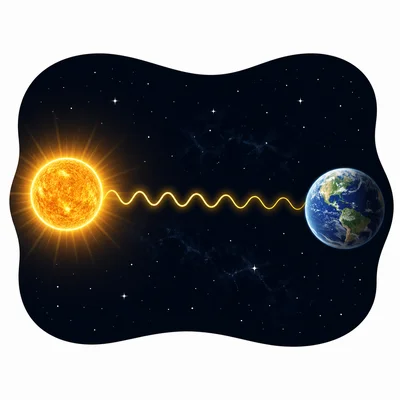

Question 10

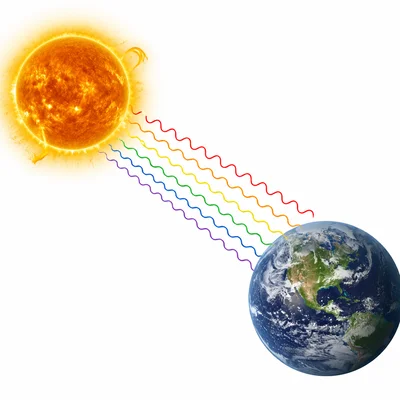

A student says that all electromagnetic waves need matter to travel through. Is the student correct? Explain.

Accepted Answer

The student is not correct. Electromagnetic waves do not need matter to travel, so they can move through empty space.

Question 11

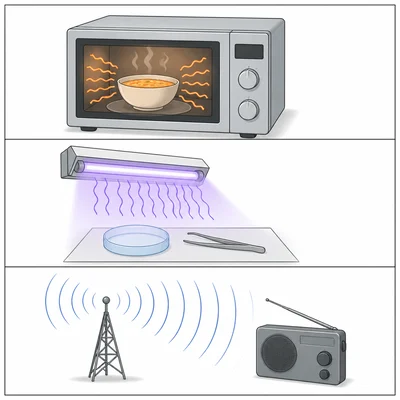

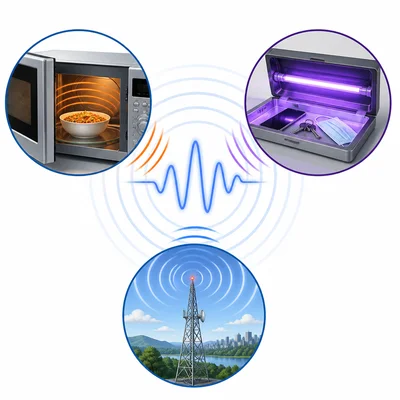

Give one common use for each of these types of waves: microwaves, ultraviolet, and radio waves.

Accepted Answer

Microwaves are used for cooking food or communication. Ultraviolet waves are used for sterilizing equipment or causing certain materials to glow. Radio waves are used for broadcasting radio and television signals or for communication.

Question 12

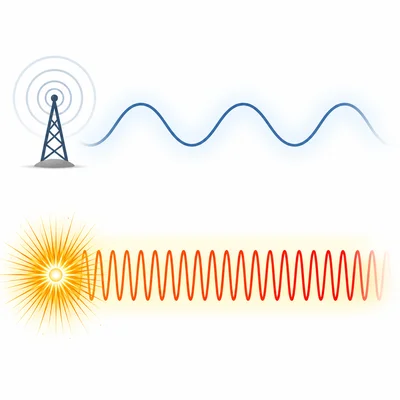

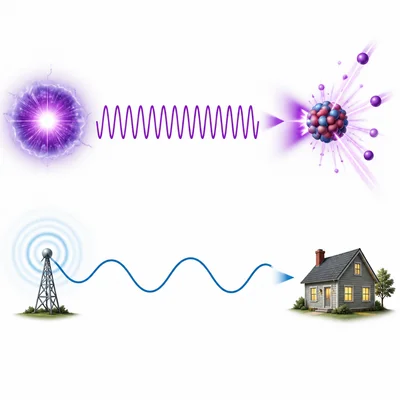

Why do gamma rays have more energy than radio waves?

Accepted Answer

Gamma rays have more energy than radio waves because gamma rays have much higher frequencies. In the electromagnetic spectrum, higher frequency means greater energy.
