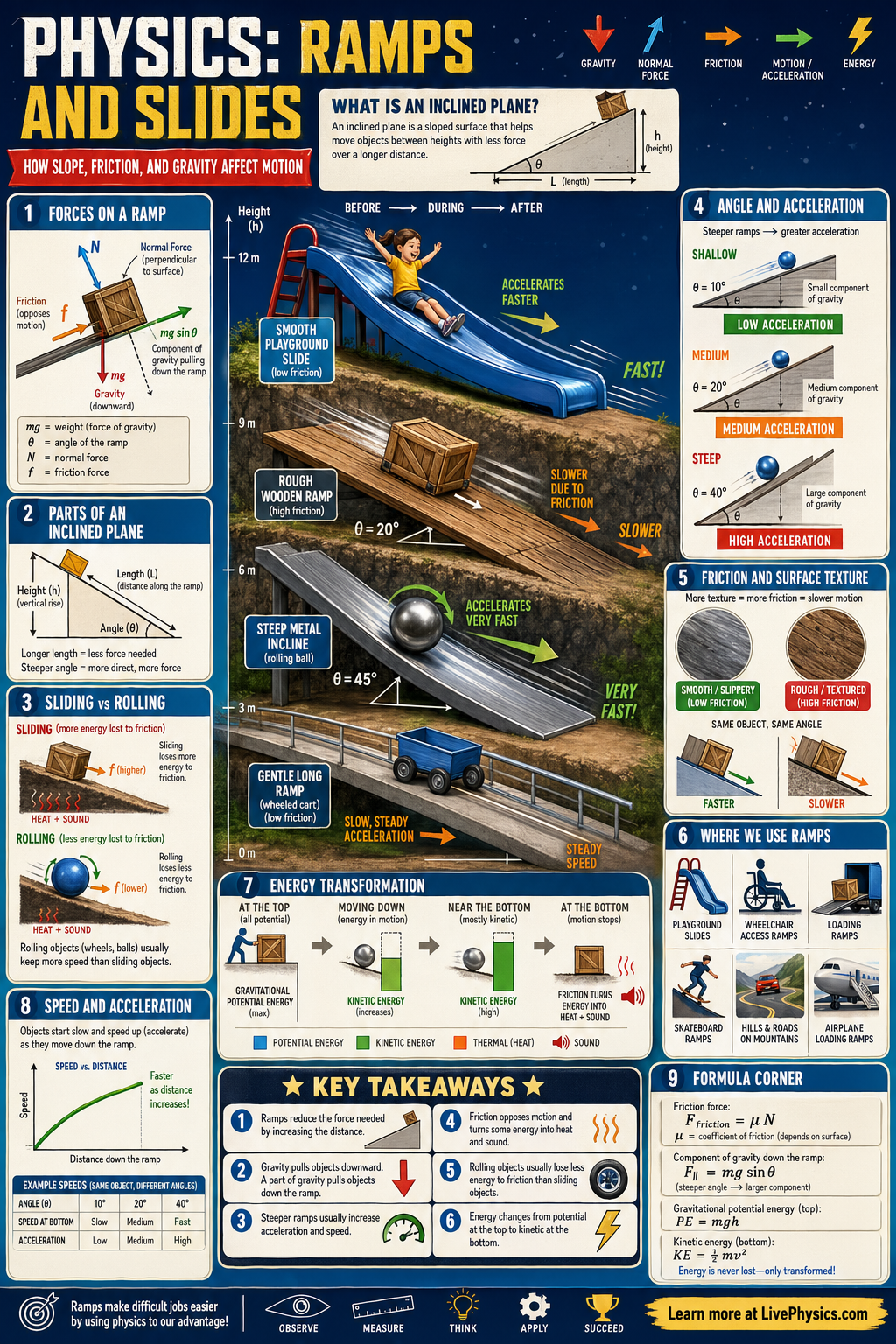

Ramps and slides are simple machines that make it easier to move objects by spreading a vertical rise over a longer distance. They appear in playgrounds, loading docks, roads, and roller coasters, so they connect physics to everyday life. Studying motion on an incline helps students understand how gravity, friction, and surface angle affect acceleration.
It also shows how forces can be broken into components to predict motion clearly.
On a ramp, gravity pulls straight downward, but only part of that force acts along the slope. The component parallel to the ramp causes the object to speed up, while the perpendicular component presses the object into the surface. Friction can oppose motion and reduce the acceleration, and the steeper the ramp, the larger the downhill component of gravity becomes.
Energy ideas also help, because gravitational potential energy changes into kinetic energy as an object moves down the slope.
Understanding Ramps and Slides
A useful first step is to draw a free body diagram. This is a simple sketch of one object with every force shown as an arrow. For a box resting on a slope, include its weight, the push from the surface, and friction if the surface is rough.
The surface force is called the normal force because it acts at a right angle to the ramp. It does not usually point straight up. A common mistake is drawing the normal force vertically.
Another common mistake is treating the downward part of gravity as a separate force. It is not separate. It is one gravitational force viewed in two chosen directions.
Choose axes that run along the ramp and through the ramp. This makes Newton's second law much easier to use. Along the surface, decide which direction is positive before doing any calculations.
If downhill is positive, the downhill gravity component is positive. Friction is negative when an object slides downhill because friction acts against relative motion. If an object is pushed uphill, friction points downhill.
Friction does not always point uphill. Its direction depends on the direction the surfaces would slide relative to each other. Careful signs prevent many wrong answers.
An object can remain still on a slope even though gravity pulls it downhill. Static friction can adjust to balance the downhill pull, up to a limit set by the surfaces. A parked car, a ladder against a surface, and shoes on a hill depend on this effect.
When the needed friction becomes greater than the maximum available static friction, the object begins to slip. Once sliding starts, kinetic friction applies. It is often smaller than the greatest possible static friction, which helps explain why starting a heavy object moving can feel harder than keeping it moving.
Energy provides a second way to study the same motion. If losses are small, an object reaching the same vertical drop has the same speed at the bottom, even if it followed ramps of different lengths and angles. The route changes the time taken and the forces felt, but the vertical change controls the energy released by gravity.
Real slides are not lossless. Friction changes some energy into thermal energy, while air resistance and vibrations take a smaller share. A rider may feel a warm slide after repeated use because energy has been transferred into the material.
When solving problems, state whether friction is ignored, and check whether the final result makes physical sense. A gentler ramp should usually give less acceleration along its surface than a steeper one.
Key Facts
- Weight of an object is .
- Component of gravity parallel to the ramp is .
- Component of gravity perpendicular to the ramp is .
- For a frictionless ramp, acceleration is .
- Kinetic friction is , where on a simple incline.
- Gravitational potential energy and kinetic energy are related by and .
Vocabulary
- Inclined plane
- An inclined plane is a flat surface set at an angle that helps raise or lower objects with less force.
- Normal force
- The normal force is the support force exerted by a surface perpendicular to that surface.
- Friction
- Friction is a force that opposes motion or attempted motion between surfaces in contact.
- Acceleration
- Acceleration is the rate at which velocity changes with time.
- Gravitational potential energy
- Gravitational potential energy is stored energy an object has because of its height above a reference level.
Common Mistakes to Avoid
- Using as the force pulling an object down the ramp, which is wrong because only the parallel component acts along the slope. The full weight points straight downward, not along the surface.
- Setting the normal force equal to on every ramp, which is wrong because the surface is tilted. On an incline without other vertical forces, the normal force is .
- Forgetting to subtract friction from the downhill force, which is wrong because friction acts opposite the direction of motion. The net force along the ramp must include both gravity's parallel component and friction.
- Assuming a steeper ramp always means less speed at the bottom, which is wrong when friction is small or absent. A steeper ramp gives a larger downhill component of gravity and usually a larger acceleration.
Practice Questions
- 1 A 5.0 kg box slides down a frictionless ramp at an angle of 30 degrees. Find the acceleration of the box and the component of its weight parallel to the ramp. Use .
- 2 A 10 kg crate is on a 20 degree ramp with coefficient of kinetic friction . Calculate the normal force, friction force, and net acceleration down the ramp. Use .
- 3 Two identical carts start from rest at the same height on two different frictionless ramps, one steep and one shallow. Explain which cart has greater acceleration during the motion and which has greater speed at the bottom.
