Waves carry energy from one place to another, and they change behavior when they meet a surface, enter a new material, or pass through an opening. Reflection, refraction, and diffraction explain many things students can observe, such as echoes, bent-looking straws in water, and sound traveling around a doorway. These interactions happen with water waves, sound waves, light waves, and many other types of waves.
Learning them helps connect diagrams and formulas to real-world motion and energy transfer.
Reflection happens when a wave bounces off a boundary, refraction happens when a wave changes speed and direction in a new medium, and diffraction happens when a wave spreads out after passing an edge or gap. The amount of bending or spreading depends on wave speed, wavelength, angle, and the size of the opening or obstacle. Scientists and engineers use these ideas in mirrors, lenses, eyeglasses, cameras, sonar, medical ultrasound, and wireless communication.

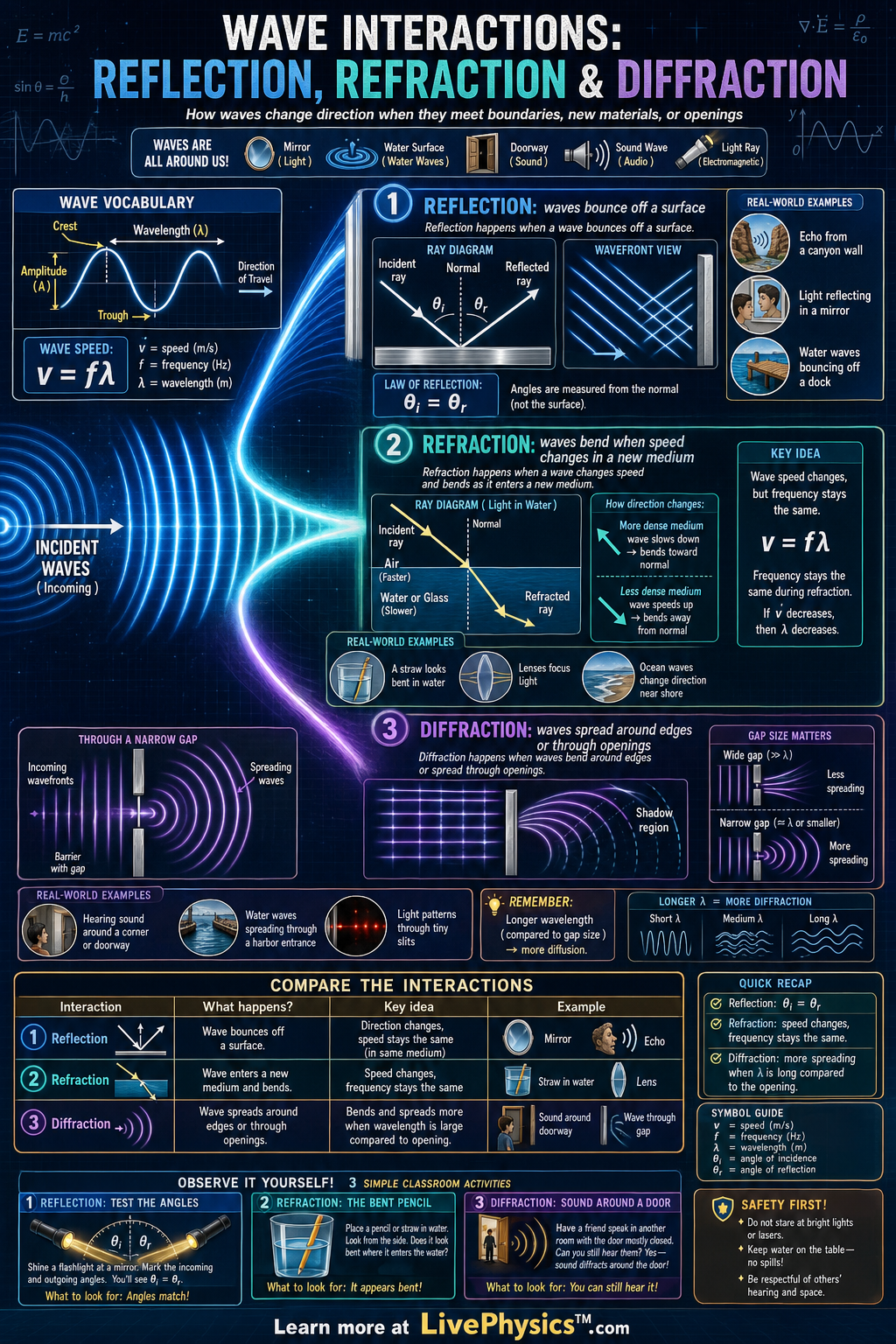

A good wave diagram shows wavefronts, rays, boundaries, angles, and labeled changes in speed or direction.
Understanding Wave Interactions: Reflection, Refraction & Diffraction
Reflection is easier to understand by thinking about the surface shape and the direction of the incoming wave. A smooth surface sends parallel rays in one clear direction. This produces a sharp image in a mirror or a calm pond.
A rough surface has tiny slopes pointing in many directions. Each small part still reflects in a predictable way, but the outgoing rays spread out. This is called diffuse reflection.
It is why most objects can be seen from many viewing positions even though they are not mirrors. Sound can reflect too. Hard walls return sound strongly, while curtains and soft foam reduce reflections by absorbing some wave energy.
For refraction, wavefronts give a clearer picture than a single ray. A wavefront is a line joining points that are at the same stage of vibration. When one side of a wavefront enters a slower material first, that side travels less distance during the same time.
The rest of the wavefront catches up unevenly, so the whole front turns. This turning changes the ray direction. A glass prism separates white light into colours because different colours slow by different amounts in glass.
This effect is called dispersion. It matters in camera lenses because designers must reduce colour fringes near the edges of an image.
Diffraction does not mean a wave has found a special path around an object. It follows from every point across an opening acting as a source of smaller spreading wavelets. Waves from different parts of the opening overlap beyond it.
A wide opening produces a narrow central beam because most wavelets reinforce one direction. A narrow opening produces much more spreading. Long radio waves can bend around hills and buildings more easily than short visible light waves.
This helps explain why a radio may work in places where there is no direct line to the transmitter. It also explains why sound reaches a listener around a corner more readily than light does.
Where waves overlap, interference becomes important. Crests meeting crests make a larger disturbance, while a crest meeting a trough can reduce the disturbance. The result depends on phase, which describes where each wave is in its repeating cycle.
In a ripple tank, stable bands of large and small ripples show interference clearly. In noise cancelling headphones, electronics create sound with an opposite pressure pattern to reduce unwanted low frequency noise. Students should keep ray diagrams and wavefront diagrams separate.
Rays show direction of travel. Wavefronts show the shape and spacing of the wave.
The normal line is only a reference line drawn at right angles to a boundary. It is not a real force or path followed by the wave.
Key Facts
- Wave speed is related to frequency and wavelength by v = fλ.
- Reflection follows the law of reflection: angle of incidence = angle of reflection.
- Refraction occurs when a wave changes speed as it enters a different medium.
- When a wave slows down entering a new medium, it bends toward the normal line.
- Diffraction is strongest when the gap size is about the same as the wavelength.
- Frequency stays the same when a wave crosses into a new medium, but speed and wavelength can change.
Vocabulary
- Reflection
- Reflection is the bouncing of a wave off a surface or boundary.
- Refraction
- Refraction is the bending of a wave as it changes speed when entering a new medium.
- Diffraction
- Diffraction is the spreading of waves as they pass around an obstacle or through an opening.
- Wavelength
- Wavelength is the distance from one crest of a wave to the next crest.
- Normal line
- The normal line is an imaginary line drawn perpendicular to a surface at the point where a wave hits.
Common Mistakes to Avoid
- Confusing reflection with refraction is wrong because reflection means a wave bounces back, while refraction means it enters a new medium and bends.
- Measuring angles from the surface is wrong because reflection and refraction angles are measured from the normal line.
- Thinking frequency changes during refraction is wrong because the wave source controls frequency, while speed and wavelength change in the new medium.
- Assuming diffraction only happens through tiny holes is wrong because diffraction happens around edges and through openings, but it is most noticeable when the opening is close to the wavelength.
Practice Questions
- 1 A water wave has a frequency of 4 Hz and a wavelength of 0.50 m. What is the wave speed?
- 2 A light ray hits a flat mirror at an angle of incidence of 35 degrees measured from the normal. What is the angle of reflection?
- 3 A sound wave can be heard around a classroom doorway, but a beam of light from a flashlight does not spread around the doorway as much. Use wavelength and diffraction to explain why.
