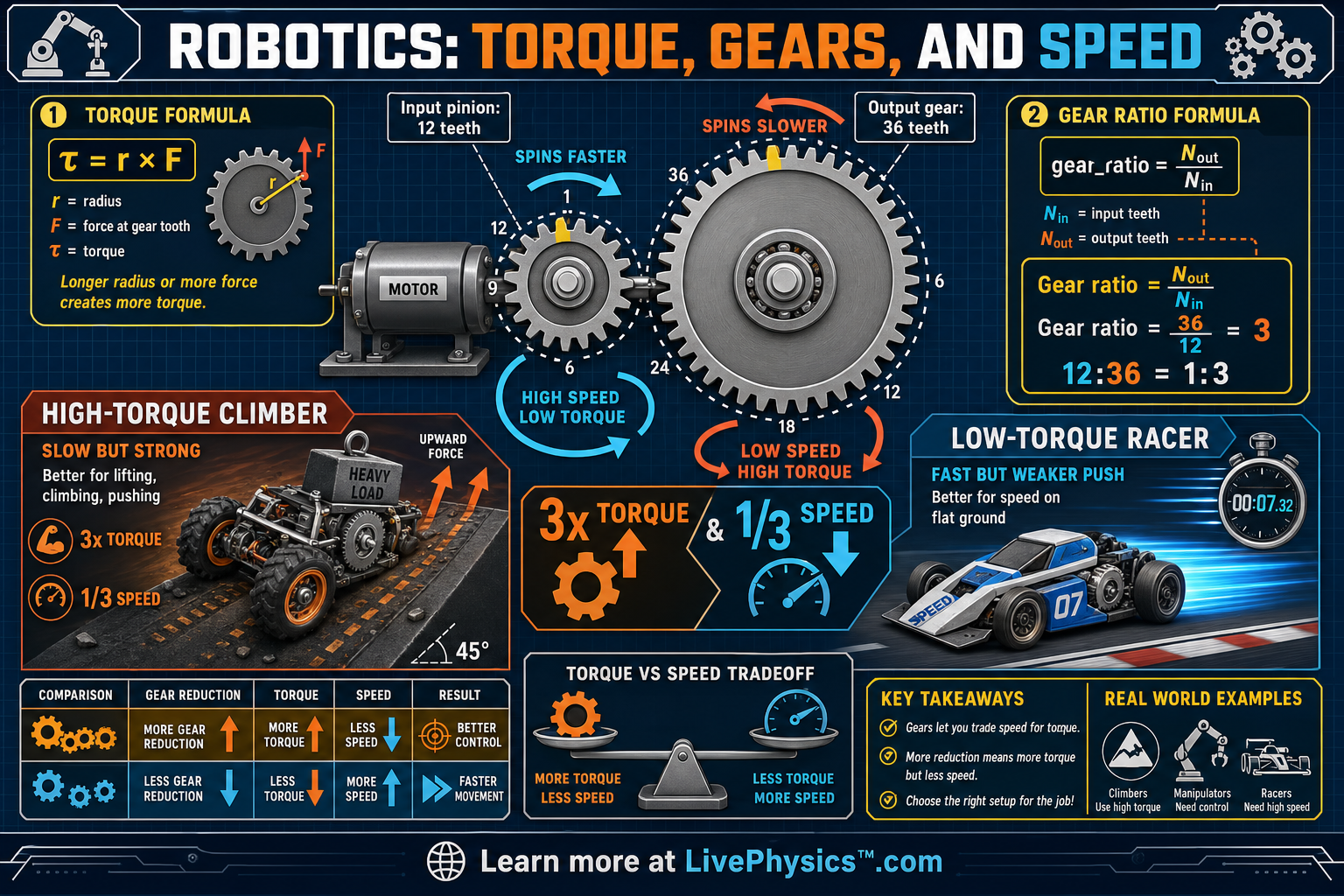

Robots often need to trade speed for strength, especially when motors are small but the job is demanding. Gears let a robot designer change how fast a wheel, arm, or climber turns and how much twisting force it can produce. A small motor pinion gear driving a larger output gear is a common way to increase torque.

This matters in robots that must climb, lift, push, or accelerate without stalling the motor.

The gear ratio compares the number of teeth on the output gear to the number of teeth on the input gear. For example, a 12 tooth pinion driving a 36 tooth gear has gear_ratio = 36 / 12 = 3, often written as 1:3 from input to output. In an ideal gear train, the output torque becomes 3 times larger while the output speed becomes 1/3 as large.

A slow climber benefits from high torque, while a fast racer usually uses a lower gear ratio to keep wheel speed high.

Understanding Torque, Gears, and Speed

A motor does not deliver the same twisting force at every speed. Near its free spinning speed, it can turn quickly but produces little useful torque. Near a complete stop, it can produce its greatest torque, but it draws a very large current.

That current heats the motor, wires, motor controller, and battery. A robot that repeatedly stalls can lose power or damage parts.

Good gearing keeps the motor turning fast enough to work efficiently instead of forcing it to struggle at low speed. This is why a drive train should be chosen from the real load, not from a desired top speed alone.

At the wheel, output torque becomes pushing force against the floor. A smaller wheel turns the same torque into more forward force because the force is torque divided by wheel radius. Large wheels cover more ground per turn, but they need more torque to push with the same strength.

Grip matters too. Even a powerful gear train cannot accelerate well if the tires slide.

The maximum usable push is limited by tire friction and the robot's weight on the driven wheels. In a competition robot, adding torque may first improve acceleration, then simply cause wheel spin if traction is already the limit.

Real gear trains are not ideal. Gear teeth rub, shafts bend slightly, bearings resist motion, and some energy becomes heat or sound. Each gear mesh adds a small loss.

Long chains of gears can therefore be less efficient than a carefully designed system with fewer stages. Gears also have backlash, which is a small gap between tooth faces. When a mechanism reverses direction, the input can move briefly before the output responds.

Backlash can make an arm shake or make accurate aiming harder. Proper gear spacing, stiff supports, aligned shafts, and solid bearings reduce these problems. Small pinion gears need special care because too few teeth can wear quickly or skip under heavy loads.

A useful design process starts with the task. Estimate the robot mass, wheel size, slope, desired acceleration, and any force needed to lift or push. Then test a conservative ratio before chasing maximum speed.

Watch motor temperature, battery voltage, current draw, and how quickly the robot reaches speed. A ratio that looks fast in an unloaded test may become slow when the robot carries its full mechanism. For arms and climbers, check whether the mechanism can hold its position when power is removed.

Some loads can backdrive the gears and fall under gravity. A higher reduction helps resistance, though a brake, locking device, or motor control may still be needed. Careful measurements turn gearing from a guess into an engineering choice.

Key Facts

  • Torque is twisting effect: tau = r * F, where r is lever arm distance and F is force.
  • Gear ratio can be calculated with gear_ratio = N_out / N_in, where N is the number of gear teeth.
  • A 12 tooth input gear driving a 36 tooth output gear gives gear_ratio = 36 / 12 = 3.
  • In an ideal 3:1 reduction, output torque is 3 times motor torque and output speed is 1/3 motor speed.
  • Increasing torque with gears does not create extra energy, because power is limited by the motor and losses.
  • High-torque gearing is useful for climbers and arms, while low-ratio gearing is useful for fast drive trains.

Vocabulary

Torque
Torque is the twisting effect of a force around an axis or pivot.
Gear ratio
Gear ratio is the comparison between output gear teeth and input gear teeth that predicts speed and torque changes.
Pinion gear
A pinion gear is a small driving gear attached to a motor shaft or another rotating input.
Output gear
The output gear is the gear that delivers motion and torque to the robot mechanism.
Speed reduction
Speed reduction is the decrease in output rotational speed caused by gearing that increases torque.

Common Mistakes to Avoid

  • Using diameter instead of tooth count without checking the gears, which can give the wrong ratio if the gears are not from the same gear system.
  • Thinking a larger output gear makes the robot faster, which is wrong because it usually increases torque while reducing output speed.
  • Ignoring motor limits and friction, which is wrong because real gearboxes lose energy and can still stall or overheat.
  • Mixing up input and output in gear_ratio = N_out / N_in, which reverses the predicted torque and speed change.

Practice Questions

  1. 1 A motor pinion has 10 teeth and drives a 40 tooth output gear. Calculate the gear ratio, the torque multiplier, and the output speed if the motor spins at 600 rpm.
  2. 2 A robot arm needs at least 6 N·m of torque. The motor produces 1.5 N·m, and losses are ignored. What minimum gear ratio is needed, and what happens to the output speed at that ratio?
  3. 3 A robot team must choose between a high-torque slow climber and a low-torque fast racer. Explain which gear setup each robot should use and why the same motor cannot maximize torque and speed at the same time.
