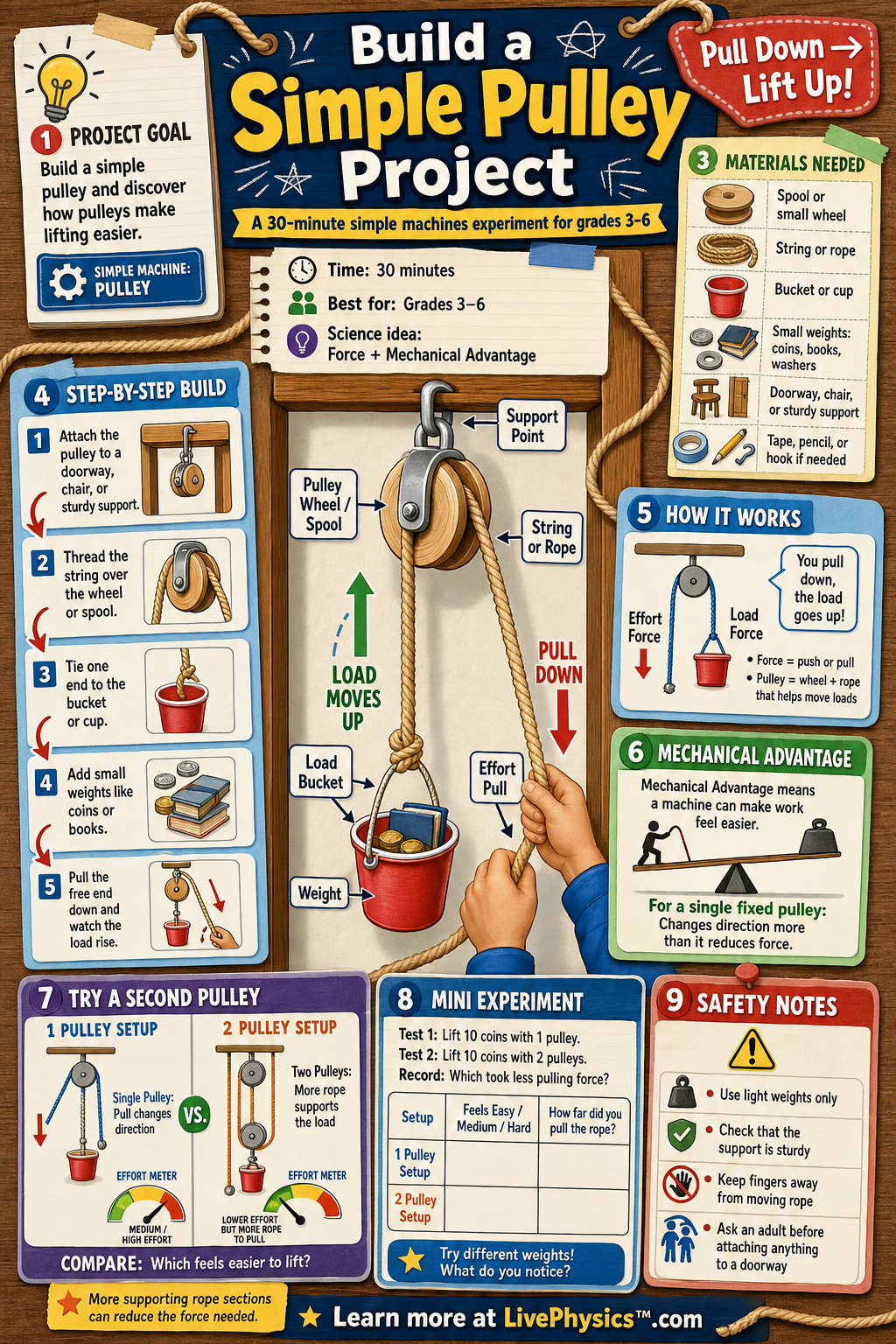

A pulley is a simple machine that helps you lift a load by pulling on a rope or string. In this project, you can build a single pulley using a spool or wheel, string, and a small bucket or cup. It is a great school project because you can see how changing the direction of a pull makes lifting easier to manage.
You can finish the basic build in about 30 minutes with common classroom materials.
When the rope goes over the pulley wheel, a downward pull can lift the bucket upward. A single fixed pulley mainly changes the direction of the force, while adding a second pulley can reduce the force needed to lift the same load. This is called mechanical advantage, and it is one reason cranes, flagpoles, and elevators use pulleys.
By comparing one pulley and two pulleys, you can test how simple machines make work easier.
Understanding Build a Simple Pulley Project
The important idea in a compound pulley is rope tension. Tension is the pulling force carried through a tight rope. In a well-made system, each straight section of rope carries nearly the same tension.
A movable pulley travels upward with the bucket. If two rope sections support that moving pulley, each section holds part of the load. Your hands need to provide only about half the load force in an ideal setup.
The word ideal matters because real materials create friction. The rope rubs on the wheel, the wheel rubs on its axle, and knots can tighten. These effects mean the actual pull is usually more than the simple prediction.
A pulley reduces force by increasing distance. Work equals force times distance. Raising a bucket to a certain height requires a certain amount of energy.
A compound pulley does not make that energy disappear. With two supporting rope sections, lifting the bucket one metre requires pulling roughly two metres of rope. You trade a stronger short pull for a weaker longer pull.
This trade is useful when a person or motor cannot provide a large force at one time. It explains why construction equipment can lift heavy objects slowly with long ropes and several pulley wheels.
Make your comparison fair by keeping the load, lifting height, and rope type the same in every trial. Mark a starting line for the bucket, then mark a finish line higher up. Use a spring scale if one is available.
Pull smoothly and record the force while the bucket moves at a steady speed. A sudden jerk gives a larger reading because the bucket must speed up. Repeat each trial three times and find the average.
Measure how much rope passes through your hand during each lift. Your results should show that the compound setup needs less pulling force but more rope distance. If they do not, inspect the setup for rubbing rope, a jammed wheel, or a rope section that is not supporting the moving pulley.
Pulleys appear in flagpoles, window blinds, theatre curtains, sailing boats, garage doors, wells, and cranes. Some systems are designed mostly to place the pulling end in a convenient position. Others are designed to multiply force.
Engineers choose the number of supporting rope sections based on the load, available space, rope strength, and speed needed. More pulleys can help lift a heavier load, but they add weight, friction, and extra rope.
For this project, pay close attention to which pulley is fixed to the support and which pulley moves with the load. That detail determines whether the system changes direction, reduces the needed force, or does both.
Key Facts
- A pulley is a wheel with a rope or string running over it.
- Force is a push or pull that can move an object.
- Work = force x distance, or W = Fd.
- A fixed pulley changes the direction of your pull but does not greatly reduce the force needed.
- A movable pulley can reduce the force needed by sharing the load between rope sections.
- Mechanical advantage = load force divided by effort force, or MA = load/effort.
Vocabulary
- Pulley
- A pulley is a simple machine made of a wheel and rope that helps lift or move a load.
- Load
- The load is the object being lifted, such as a cup filled with coins.
- Effort
- Effort is the force you apply when you pull the rope.
- Mechanical advantage
- Mechanical advantage tells how much a machine multiplies or helps your effort force.
- Fixed pulley
- A fixed pulley is attached in one place and changes the direction of the pulling force.
Common Mistakes to Avoid
- Using a weak support, such as a loose chair back, is unsafe because the pulley may fall when the load gets heavier. Use a stable doorway bar, sturdy chair, or adult-approved support.
- Letting the rope slip off the wheel is a problem because the pulley cannot turn smoothly. Keep the string in the groove of the spool or wheel.
- Adding too many coins at once is wrong because it can break the cup, string, or support. Add weights slowly and test the system step by step.
- Thinking one fixed pulley makes the load weigh less is incorrect because it mainly changes the direction of the pull. To reduce the effort force, compare it with a setup that uses a second pulley.
Practice Questions
- 1 A cup and coins have a weight of 12 N. With one fixed pulley, about how much effort force is needed if friction is ignored?
- 2 A two-pulley setup has a mechanical advantage of 2. If the load weighs 20 N, how much effort force is needed if friction is ignored?
- 3 You pull down on the rope and the bucket moves up. Explain how the pulley changes the direction of force and why adding a second pulley can make lifting feel easier.
