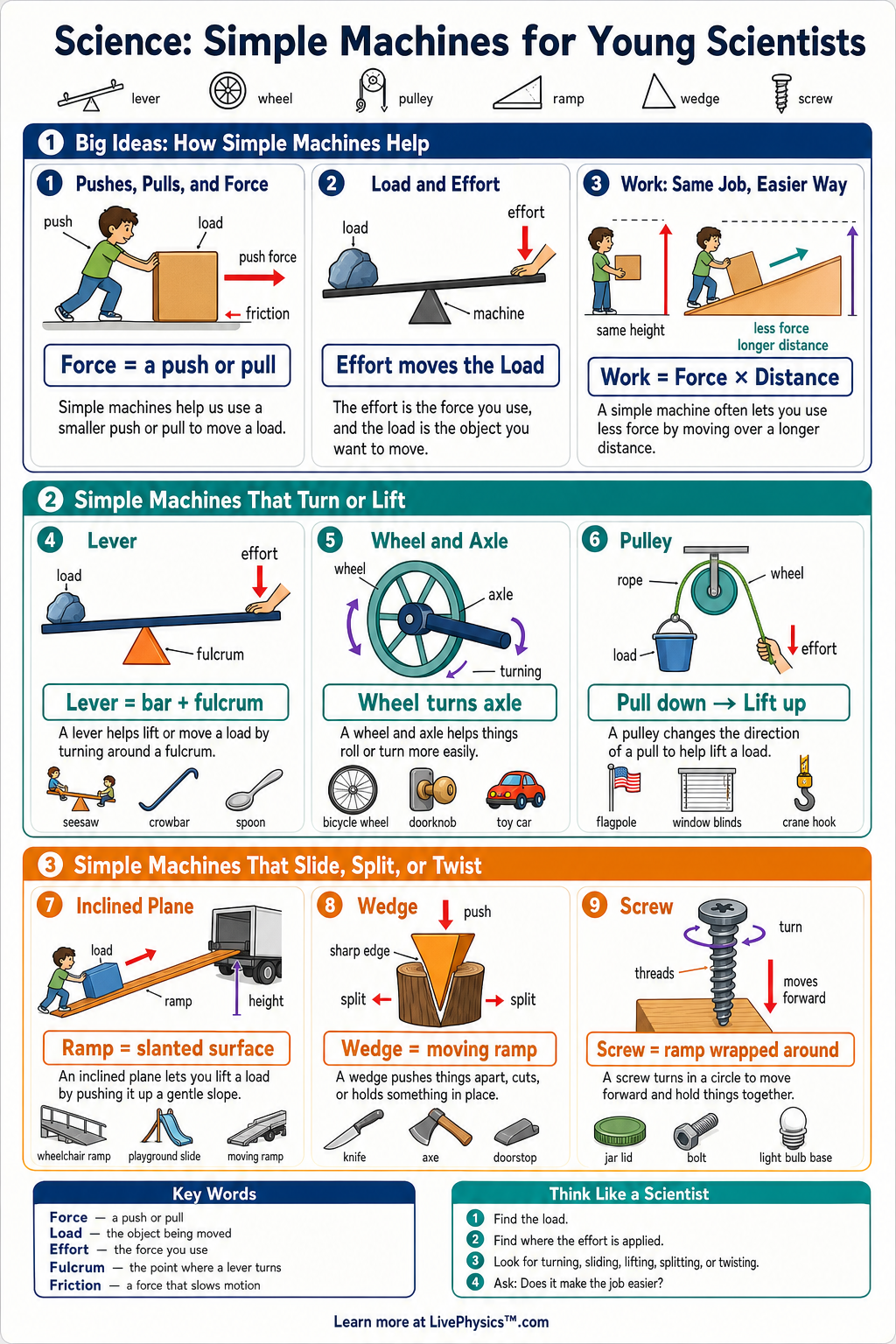

Simple Machines for Young Scientists Cheat Sheet
A printable reference covering levers, pulleys, wheels and axles, inclined planes, wedges, screws, force, work, and load for grades 2-3.
Related Tools
Related Labs
Related Worksheets
Simple machines are tools that help people move, lift, push, pull, cut, or hold objects with less effort. This cheat sheet helps young scientists recognize the six simple machines in everyday life. Students need these ideas to understand how tools, playground equipment, bikes, ramps, and machines make work easier. It gives quick rules, simple formulas, and examples that are easy to remember.
Key Facts
- A simple machine is a tool with few or no moving parts that changes the size or direction of a force.
- The six simple machines are lever, pulley, wheel and axle, inclined plane, wedge, and screw.
- Force means a push or a pull, and a stronger force can start, stop, or change an object's motion.
- Work happens when a force moves an object, so work = force x distance.
- A lever uses a stiff bar and a fulcrum, and moving the fulcrum can make lifting easier or harder.
- An inclined plane is a ramp, and a longer, gentler ramp usually needs less force than lifting straight up.
- A pulley uses a rope and wheel to lift or move a load, and it can change the direction of the pull.
- Simple machines do not make work disappear, but they can spread the work over a longer distance or make the force easier to use.
Vocabulary
- Simple machine
- A simple machine is a basic tool that helps make work easier by changing a force.
- Force
- Force is a push or pull that can move an object or change how it moves.
- Load
- A load is the object being lifted, moved, pushed, pulled, or held.
- Fulcrum
- A fulcrum is the support point where a lever turns or balances.
- Inclined plane
- An inclined plane is a slanted surface, like a ramp, that helps move objects up or down.
- Work
- Work is done when a force moves an object through a distance.
Common Mistakes to Avoid
- Calling every tool a simple machine is wrong because a simple machine must match one of the six basic types or be made from them.
- Thinking a simple machine removes all work is wrong because it changes how the work is done, not whether work is needed.
- Mixing up force and load is wrong because force is the push or pull, while the load is the object being moved.
- Forgetting the fulcrum in a lever is wrong because the lever needs a turning point to lift or balance a load.
- Thinking a short steep ramp is always easier is wrong because a longer, less steep ramp usually needs less force.
Practice Questions
- 1 A wagon uses 4 wheels. Which simple machine is each wheel part of: lever, pulley, wheel and axle, or wedge?
- 2 A child pushes a box with a force of 5 units for a distance of 3 units. Using work = force x distance, how much work is done?
- 3 A ramp lets a toy car travel 6 feet to reach a shelf. Lifting the car straight up is 2 feet. Which path is longer, and which path usually needs less force?
- 4 A student wants to move a heavy box into a truck. Explain why using a ramp may be easier than lifting the box straight up.
