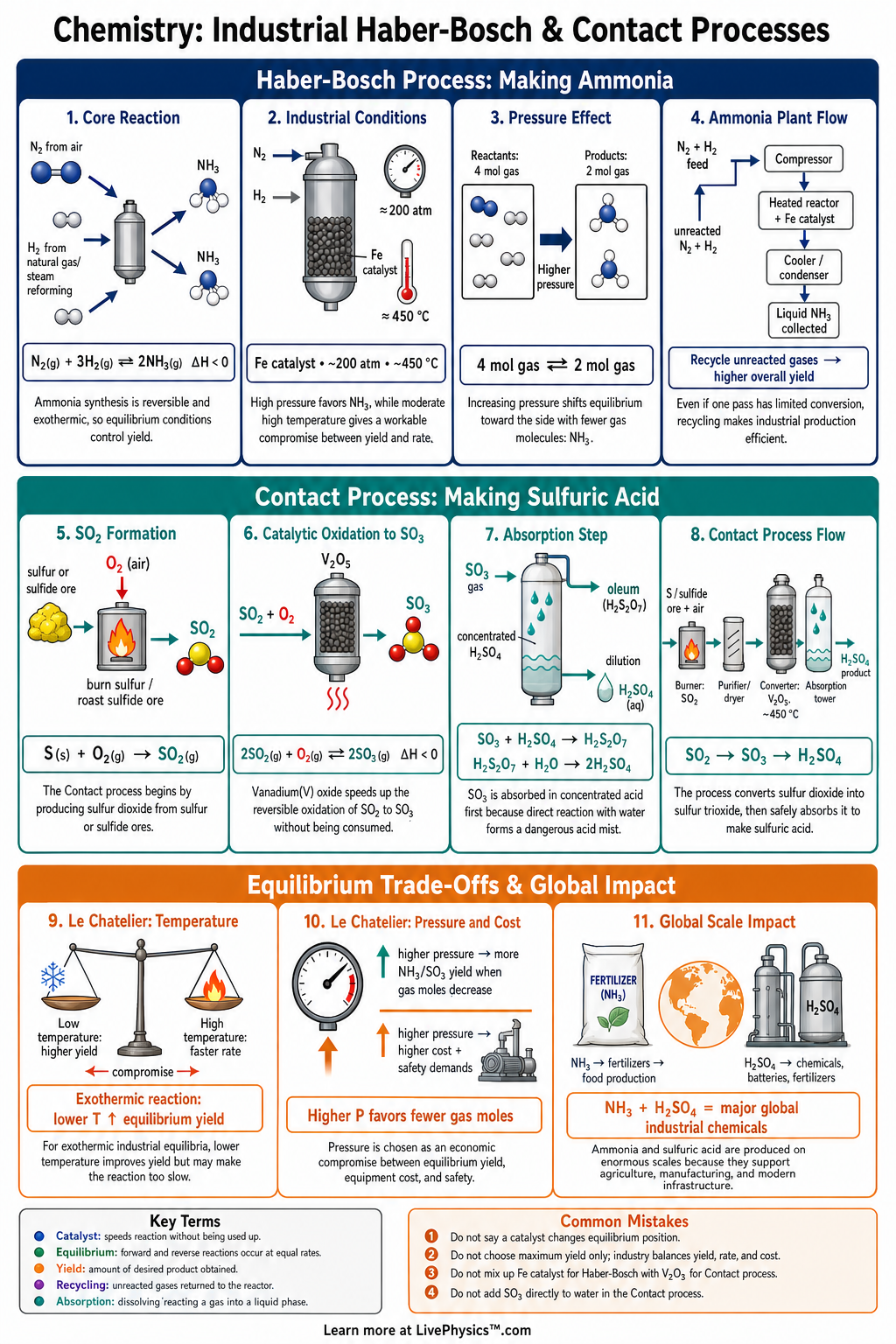

The Haber-Bosch and Contact Processes are two major industrial applications of equilibrium, reaction rates, and catalysis. This cheat sheet helps students connect classroom equilibrium ideas to large-scale chemical manufacturing. It focuses on the conditions, equations, and tradeoffs used to make ammonia and sulfuric acid efficiently. These processes are important because they support fertilizer production, chemical manufacturing, and many modern industries. The Haber-Bosch Process converts nitrogen and hydrogen into ammonia using high pressure, moderate temperature, and an iron catalyst. The Contact Process produces sulfuric acid through sulfur dioxide oxidation, sulfur trioxide absorption, and acid dilution. In both processes, engineers balance yield, rate, cost, safety, and catalyst performance. Le Châtelier's principle explains why changes in pressure, temperature, and concentration affect equilibrium position.

Key Facts

The Haber-Bosch equilibrium reaction is $N_{2}(g)+3H_{2}(g)\rightleftharpoons 2NH_{3}(g)$ and it is exothermic with $\Delta H<0$ .
For the Haber-Bosch reaction, high pressure shifts equilibrium toward $NH_{3}$ because the product side has $2$ moles of gas while the reactant side has $4$ moles of gas.
A moderate temperature near $450^{\circ}\mathrm{C}$ is used in Haber-Bosch because lower temperature increases yield but higher temperature increases reaction rate.
The Haber-Bosch catalyst is iron, often written as $Fe$ , and it increases rate without changing $K$ or the equilibrium yield.
The key Contact Process oxidation step is $2SO_{2}(g)+O_{2}(g)\rightleftharpoons 2SO_{3}(g)$ and it is exothermic with $\Delta H<0$ .
The Contact Process commonly uses $V_{2}O_{5}$ as a catalyst and operates near $450^{\circ}\mathrm{C}$ with a pressure close to $1\text{ to }2\,\mathrm{atm}$ .
Sulfur trioxide is absorbed into concentrated sulfuric acid as $SO_{3}+H_{2}SO_{4}\rightarrow H_{2}S_{2}O_{7}$ , then diluted by $H_{2}S_{2}O_{7}+H_{2}O\rightarrow 2H_{2}SO_{4}$ .
For a gaseous equilibrium, $K_{p}=\frac{(P_{\text{products}})^{\text{coefficients}}}{(P_{\text{reactants}})^{\text{coefficients}}}$ using partial pressures raised to their stoichiometric coefficients.

Vocabulary

Haber-Bosch Process: An industrial process that produces ammonia from nitrogen and hydrogen using high pressure, moderate temperature, and an iron catalyst.
Contact Process: An industrial process that produces sulfuric acid by making sulfur dioxide, oxidizing it to sulfur trioxide, and converting it to acid.
Dynamic equilibrium: A state in which the forward and reverse reaction rates are equal, so macroscopic concentrations remain constant.
Le Châtelier's principle: A rule stating that a system at equilibrium shifts to oppose a change in concentration, pressure, or temperature.
Catalyst: A substance that increases reaction rate by lowering activation energy without being consumed or changing the equilibrium constant.
Compromise conditions: Industrial operating conditions chosen to balance equilibrium yield, reaction rate, energy cost, equipment cost, and safety.

Common Mistakes to Avoid

Saying a catalyst increases equilibrium yield, because a catalyst speeds up both forward and reverse reactions and does not change $K$ .
Choosing the highest possible temperature for an exothermic equilibrium, because higher temperature improves rate but shifts equilibrium away from products when $\Delta H<0$ .
Ignoring gas mole ratios when predicting pressure effects, because pressure only shifts a gaseous equilibrium toward the side with fewer moles of gas.
Writing sulfuric acid production as direct hydration of sulfur trioxide only, because $SO_{3}+H_{2}O\rightarrow H_{2}SO_{4}$ is dangerously exothermic and forms a mist rather than being the main industrial route.
Forgetting stoichiometric powers in $K_{p}$ expressions, because each partial pressure must be raised to the coefficient from the balanced equation.

Practice Questions

1 For $N_{2}(g)+3H_{2}(g)\rightleftharpoons 2NH_{3}(g)$ , calculate $K_{p}$ if $P_{NH_{3}}=8.0\,\mathrm{atm}$ , $P_{N_{2}}=2.0\,\mathrm{atm}$ , and $P_{H_{2}}=4.0\,\mathrm{atm}$ .
2 For $2SO_{2}(g)+O_{2}(g)\rightleftharpoons 2SO_{3}(g)$ , calculate the total gas moles on each side and predict which direction equilibrium shifts when pressure increases.
3 In a Haber-Bosch reactor, the equilibrium mixture contains $18\%$ ammonia at one temperature and $30\%$ ammonia at a lower temperature. Explain what this shows about the sign of $\Delta H$ for ammonia formation.
