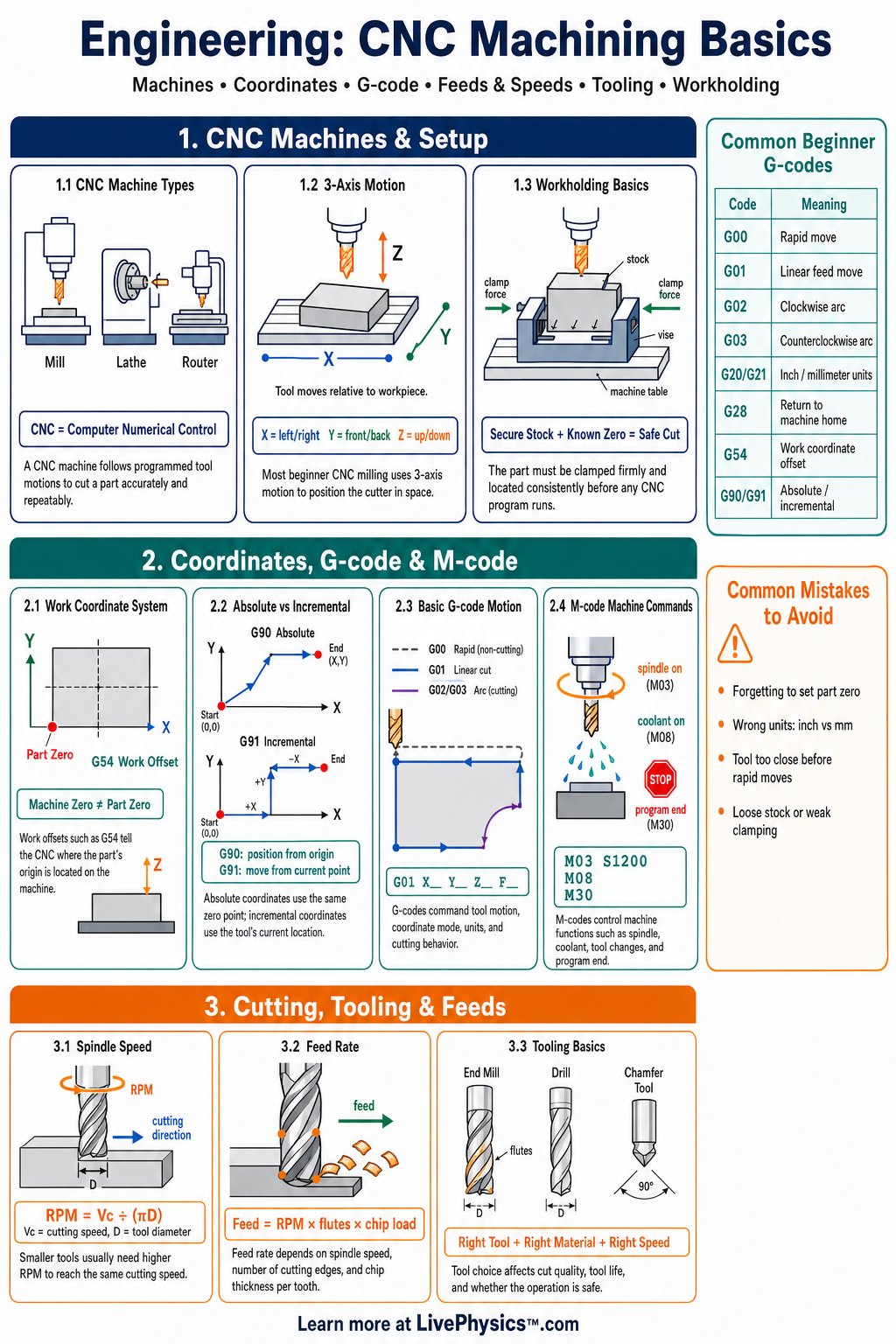

CNC machining uses computer-controlled machines to cut, drill, mill, or turn raw material into accurate parts. This cheat sheet helps students understand how machine motion, coordinates, tools, and programs work together. It is useful for reading simple CNC programs, planning safe setups, and connecting engineering drawings to manufactured parts.
The core ideas are coordinate axes, zero points, tool movement, spindle speed, feed rate, and common G-code commands. Students should know that the machine follows programmed positions such as X, Y, and Z from a chosen work origin. Good CNC work also depends on selecting safe cutting parameters, checking clearances, and verifying the program before cutting material.
Key Facts
- CNC stands for Computer Numerical Control, which means a computer controls machine motion using coded instructions.
- On most milling machines, X moves left and right, Y moves forward and back, and Z moves up and down relative to the workpiece.
- A work offset such as G54 defines the part zero location, so programmed coordinates are measured from the chosen work origin.
- Spindle speed in revolutions per minute can be estimated with RPM = cutting speed / (pi x tool diameter) when units are consistent.
- Feed rate is the speed of tool movement through material, and for milling it can be estimated with feed rate = chip load x number of flutes x RPM.
- G00 is rapid positioning for non-cutting moves, while G01 is controlled linear cutting motion at a set feed rate.
- A safe CNC setup includes the correct tool, secure workholding, verified offsets, proper coolant or lubrication, and a dry run before cutting.
- Toolpaths should avoid crashes by keeping clearance height above clamps, vises, fixtures, and the top of the workpiece.
Vocabulary
- CNC
- Computer Numerical Control is a manufacturing method where programmed instructions control machine motion and cutting operations.
- G-code
- G-code is a programming language that tells a CNC machine how and where to move.
- Work offset
- A work offset stores the location of the part origin, such as G54, so the machine knows where the workpiece coordinates begin.
- Feed rate
- Feed rate is the speed at which the cutting tool moves through the material during a machining operation.
- Spindle speed
- Spindle speed is how fast the cutting tool or workpiece rotates, usually measured in revolutions per minute.
- Toolpath
- A toolpath is the planned route that the cutting tool follows to create the desired shape.
Common Mistakes to Avoid
- Mixing up machine zero and work zero is wrong because the CNC program usually uses the work offset, not the machine home position, to locate the part.
- Using G00 for a cutting move is unsafe because rapid motion is meant for positioning and can break tools or damage the workpiece.
- Forgetting to check tool length offset is wrong because the machine may not know the actual cutting tip position in Z, causing a crash or an air cut.
- Choosing feed rate without considering material, tool diameter, flutes, and RPM is wrong because the tool may rub, chatter, overheat, or break.
- Ignoring clamps and fixtures in the toolpath is wrong because the cutter can collide with workholding even if the part geometry is programmed correctly.
Practice Questions
- 1 A milling tool has a chip load of 0.002 in/tooth, 4 flutes, and spins at 3000 RPM. Calculate the feed rate using feed rate = chip load x flutes x RPM.
- 2 A CNC program uses G54 with part zero at the front-left top corner of a block. What location does X2.000 Y1.000 Z-0.250 describe relative to that part zero?
- 3 A tool diameter is 0.50 in and the cutting speed is 300 surface feet per minute. Estimate RPM using RPM = cutting speed x 12 / (pi x tool diameter).
- 4 Explain why a CNC operator should run a program in simulation or dry run before cutting the real material.
Understanding CNC Machining Basics
A CNC program is really a set of decisions about geometry, material, and sequence. The machine needs more than the final shape. It needs a safe route to reach every surface.
A pocket, for example, is usually made in layers rather than all at once. The tool enters at a safe point, moves down a small depth, removes material, then repeats. This reduces cutting force and heat.
Engineers choose the order carefully because removing one feature can weaken the part or block access to another feature. The same drawing may need very different plans on a mill, a lathe, or a router.
Coordinates only make sense when the operator knows which reference system is active. Machine position describes where the moving parts are within the machine's full travel. Part position describes where the cutter is relative to the chosen point on the stock.
Tool length creates another important reference. A short drill and a long end mill do not place their tips at the same height, even when the spindle is at the same Z location.
Tool length compensation accounts for this difference. Students should picture the cutter tip, not just the tool holder, when reading a program.
Feeds and speeds affect the quality of the cut because each cutting edge must remove a suitable amount of material. If the feed is too low, the edge may rub instead of cut. Rubbing creates heat, wears tools, and can leave a poor surface.
If the feed is too high, the machine may vibrate, the tool can bend, or a cutter can break. Material changes the choice. Aluminum usually allows faster cutting than steel.
Plastics need care because heat can melt or smear them. Chip shape gives useful evidence. Small clean chips often show stable cutting, while long strings, dust, smoke, or loud chatter signal that something needs attention.
CNC safety depends on habits before the cycle starts. Workholding must resist forces in every direction, not just hold the part still by appearance. Clamps need space from the programmed path, and loose tools or chips must be cleared from the enclosure.
A simulation can reveal obvious path errors, but it cannot prove that the real setup is correct. Operators often run the first part slowly with one hand near the stop control. They watch the first approach, the first plunge, and every move near a fixture.
In school projects, careful measuring matters after machining too. Calipers, micrometers, and gauges show whether the actual part matches the drawing and help students adjust the next operation.
