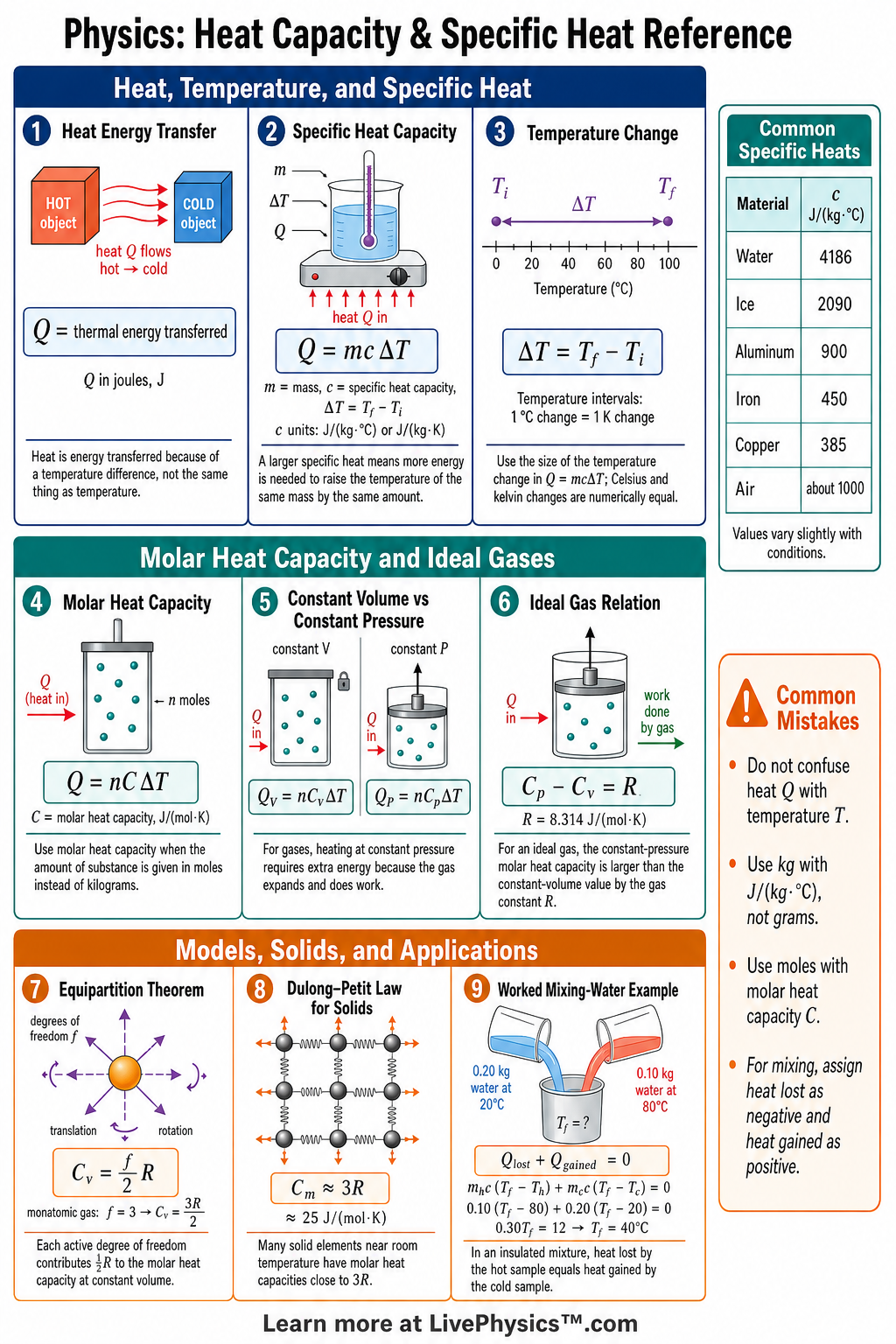

Heat Capacity & Specific Heat Reference Cheat Sheet

A printable reference covering heat capacity, specific heat, heat transfer, temperature change, and calorimetry for grades 9-12.

Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

Heat capacity and specific heat describe how materials absorb or release thermal energy when their temperature changes. Students need this reference to connect heat transfer equations with real laboratory measurements. It is especially useful for calorimetry, heating and cooling problems, and comparing how different substances respond to energy input. The central equation is $q = mc\Delta T$ , where heat depends on mass, specific heat, and temperature change. Heat capacity uses $C = \frac{q}{\Delta T}$ , while specific heat uses $c = \frac{q}{m\Delta T}$ . In an insulated calorimeter, energy conservation is often written as $q_{\text{lost}} + q_{\text{gained}} = 0$ .

Key Facts

Heat transferred during a temperature change is calculated with $q = mc\Delta T$ .
Temperature change is found using $\Delta T = T_f - T_i$ .
Specific heat capacity is calculated with $c = \frac{q}{m\Delta T}$ and has units of $\text{J/(kg}\cdot\text{K)}$ or $\text{J/(g}\cdot{}^{\circ}\text{C)}$ .
Heat capacity is calculated with $C = \frac{q}{\Delta T}$ and has units of $\text{J/K}$ or $\text{J/}^{\circ}\text{C}$ .
For the same heat input, a larger specific heat means a smaller temperature change because $\Delta T = \frac{q}{mc}$ .
In an insulated system, conservation of energy gives $q_{\text{lost}} + q_{\text{gained}} = 0$ .
A positive value of $q$ means the object gains thermal energy, while a negative value of $q$ means it loses thermal energy.
Temperature changes in kelvins and degrees Celsius have the same size, so $\Delta T = 1\,\text{K}$ is equivalent to $\Delta T = 1\,{}^{\circ}\text{C}$ .

Vocabulary

Heat: Heat is thermal energy transferred between objects because of a temperature difference.
Temperature: Temperature is a measure related to the average kinetic energy of particles in a substance.
Specific heat capacity: Specific heat capacity is the energy needed to raise the temperature of $1\,\text{kg}$ or $1\,\text{g}$ of a substance by $1\,\text{K}$ or $1\,{}^{\circ}\text{C}$ .
Heat capacity: Heat capacity is the energy needed to raise the temperature of an entire object by $1\,\text{K}$ or $1\,{}^{\circ}\text{C}$ .
Calorimetry: Calorimetry is the measurement of heat transfer using temperature changes in a controlled system.
Thermal equilibrium: Thermal equilibrium occurs when objects in contact reach the same temperature and no net heat flows between them.

Common Mistakes to Avoid

Using $T_i - T_f$ instead of $\Delta T = T_f - T_i$ is wrong because it reverses the sign of heat gained or lost.
Confusing heat capacity $C$ with specific heat $c$ is wrong because $C$ applies to a whole object, while $c$ applies per unit mass.
Mixing grams with $\text{J/(kg}\cdot\text{K)}$ is wrong because the mass unit must match the unit used for specific heat.
Forgetting that the hotter object has $q < 0$ is wrong because it loses thermal energy as it cools.
Assuming all substances heat at the same rate is wrong because different materials have different specific heats.

Practice Questions

1 How much heat is required to raise the temperature of $0.50\,\text{kg}$ of water from $20\,{}^{\circ}\text{C}$ to $80\,{}^{\circ}\text{C}$ if $c = 4186\,\text{J/(kg}\cdot\text{K)}$ ?
2 A $200\,\text{g}$ metal sample absorbs $1500\,\text{J}$ of heat and warms from $25\,{}^{\circ}\text{C}$ to $40\,{}^{\circ}\text{C}$ . What is its specific heat in $\text{J/(g}\cdot{}^{\circ}\text{C)}$ ?
3 An object has heat capacity $C = 750\,\text{J/K}$ . What temperature change occurs when it absorbs $3000\,\text{J}$ of heat?
4 Two equal-mass samples absorb the same amount of heat, but sample A has a larger specific heat than sample B. Which sample has the smaller temperature increase, and why?
