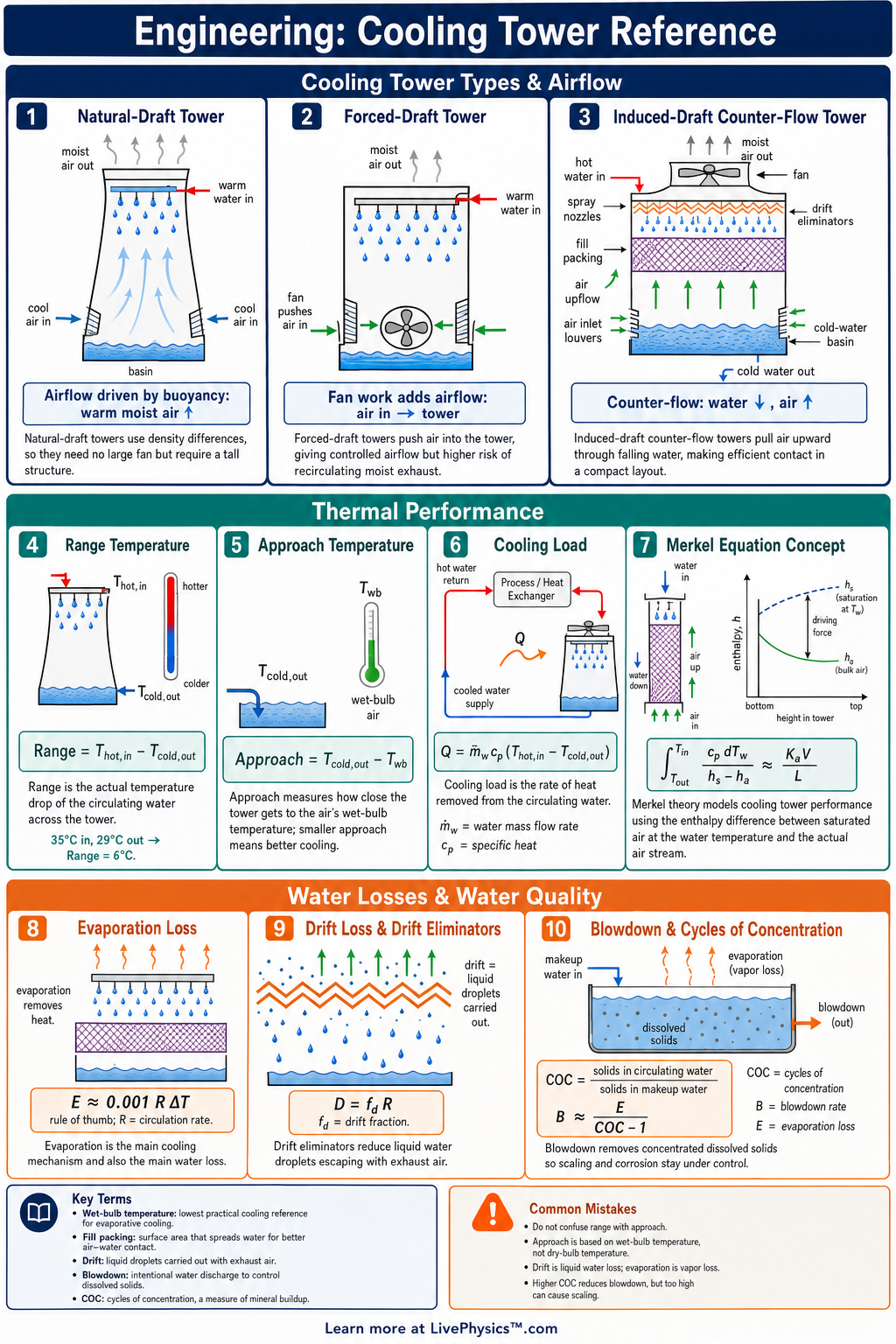

Cooling towers remove waste heat from water by bringing warm water into contact with moving air. This reference helps engineering students compare tower types, read airflow diagrams, and use the main performance formulas. It is useful for HVAC, power plant, manufacturing, and process cooling problems.
Students need it because cooling tower calculations connect thermodynamics, fluid flow, and water treatment in one system.
The most important performance ideas are range, approach, heat load, and effectiveness. Range measures how much the water cools, while approach compares the leaving water temperature to the entering air wet-bulb temperature. Water losses include evaporation, drift, and blowdown, and they determine the required makeup water.
Cycles of concentration help engineers control dissolved solids so scaling, corrosion, and biological growth stay within safe limits.
Key Facts
- Cooling tower range is Range = hot water temperature - cold water temperature.
- Cooling tower approach is Approach = cold water temperature - entering air wet-bulb temperature.
- Heat removed from water is Q = m dot water x cp x (T hot - T cold), where cp for water is about 4.186 kJ/kg C.
- Cooling tower effectiveness is Effectiveness = Range / (Range + Approach).
- Evaporation loss can be estimated as E = 0.001 x circulation rate x Range in degrees F for many practical water-cooling estimates.
- Cycles of concentration are COC = dissolved solids in circulating water / dissolved solids in makeup water.
- Blowdown can be estimated as B = E / (COC - 1) when drift and other losses are ignored.
- Makeup water is M = evaporation loss + drift loss + blowdown loss.
Vocabulary
- Cooling tower
- A heat rejection device that cools circulating water by transferring heat from the water to air.
- Wet-bulb temperature
- The lowest temperature air can reach by evaporative cooling under the current humidity conditions.
- Range
- The temperature drop of water as it passes through the cooling tower.
- Approach
- The temperature difference between the cold water leaving the tower and the entering air wet-bulb temperature.
- Drift
- Small liquid water droplets carried out of the cooling tower by the air stream.
- Blowdown
- Water intentionally drained from the circulating loop to control dissolved minerals and impurities.
Common Mistakes to Avoid
- Using dry-bulb temperature instead of wet-bulb temperature for approach is wrong because evaporative cooling depends mainly on wet-bulb temperature.
- Confusing range with approach is wrong because range compares hot and cold water temperatures, while approach compares cold water to entering air wet-bulb temperature.
- Ignoring blowdown is wrong because dissolved solids concentrate as water evaporates, which can cause scale, corrosion, and poor heat transfer.
- Assuming a smaller approach is always easy to achieve is wrong because a low approach usually needs more tower area, more airflow, or higher cost.
- Forgetting consistent units in Q = m dot x cp x delta T is wrong because mixed units can give a heat load that is off by large factors.
Practice Questions
- 1 A cooling tower receives water at 38 C and sends it back at 29 C. What is the cooling tower range?
- 2 The cold water temperature is 28 C and the entering air wet-bulb temperature is 23 C. What is the approach?
- 3 A tower circulates 50 kg/s of water with cp = 4.186 kJ/kg C and cools it from 35 C to 27 C. What heat load is removed in kW?
- 4 Why does a humid day usually make it harder for a cooling tower to produce very cold leaving water?
Understanding Cooling Tower Reference
A wet cooling tower works because a small part of the circulating water changes into water vapour. That phase change takes a large amount of energy from the remaining liquid water. Air does not need to be colder than the water by a large amount for this to happen.
Its ability to accept more moisture is crucial. This is why engineers use wet bulb temperature rather than ordinary dry bulb temperature when judging tower capacity. On a humid day, incoming air already contains much water vapour.
It can accept less evaporation, so the tower delivers warmer water. A tower may therefore perform differently at the same air temperature on two days with different humidity.
The tower fill creates a large wet surface and breaks the water into thin films or droplets. More contact area gives heat and mass transfer more time to occur. Film fill guides water over shaped sheets.
Splash fill breaks water into drops as it strikes bars. Film fill is often efficient with clean water, but it can foul when water contains solids or biological material. In a counterflow tower, water moves downward while air rises upward.
This arrangement can give strong contact because the coolest water meets the coolest entering air. In a crossflow tower, air moves sideways through falling water. Crossflow designs can be easier to inspect and may need less pumping head, though the water distribution system has different design limits.
Fans create most of the air movement in mechanical draft towers. An induced draft fan sits near the air outlet and pulls air through the fill. This arrangement produces fairly even airflow and keeps the fan in warmer, wetter discharge air.
A forced draft fan pushes air into the tower from an inlet. It places the fan in cooler inlet air, but poor air distribution can cause recirculation. Recirculation occurs when warm, humid discharge air returns to the inlet.
It reduces capacity because the tower is no longer receiving fresh ambient air. Natural draft towers avoid large fans by using a tall hyperbolic shell.
Warm moist air rises inside the shell, creating a pressure difference that draws in air. They are common at very large power stations because their size is justified only at high heat loads.
Water management is not separate from thermal performance. As pure water evaporates, most dissolved minerals remain in the circulating loop. Their concentration rises until some minerals form scale, metals corrode, or microorganisms grow in deposits.
Blowdown removes a controlled portion of concentrated water and replaces it with cleaner makeup. The chosen concentration limit depends on makeup water quality, treatment chemicals, materials, and local discharge rules. Drift eliminators matter because they capture liquid droplets before they leave with the exhaust air.
They reduce water loss and prevent mineral deposits on nearby equipment. Students should track every flow on a simple water balance, use consistent temperature and flow units, and state whether a result is based on design weather or actual operating weather. Field readings need care because a poorly placed wet bulb sensor, blocked fill, uneven nozzles, or a failing fan can make calculated performance look worse than the tower itself.
