How a Vacuum Cleaner Works
a Vacuum Cleaner
Related Tools
Related Labs
Related Worksheets
A vacuum cleaner works by using an electric motor to create a pressure difference that moves air. Air flows from the higher pressure room into a lower pressure region inside the machine, carrying dust and debris with it. The cleaner is an example of fluid flow, energy conversion, filtration, and mechanical design working together. Understanding the engineering helps explain why suction, airflow, seals, and filters all affect cleaning performance.

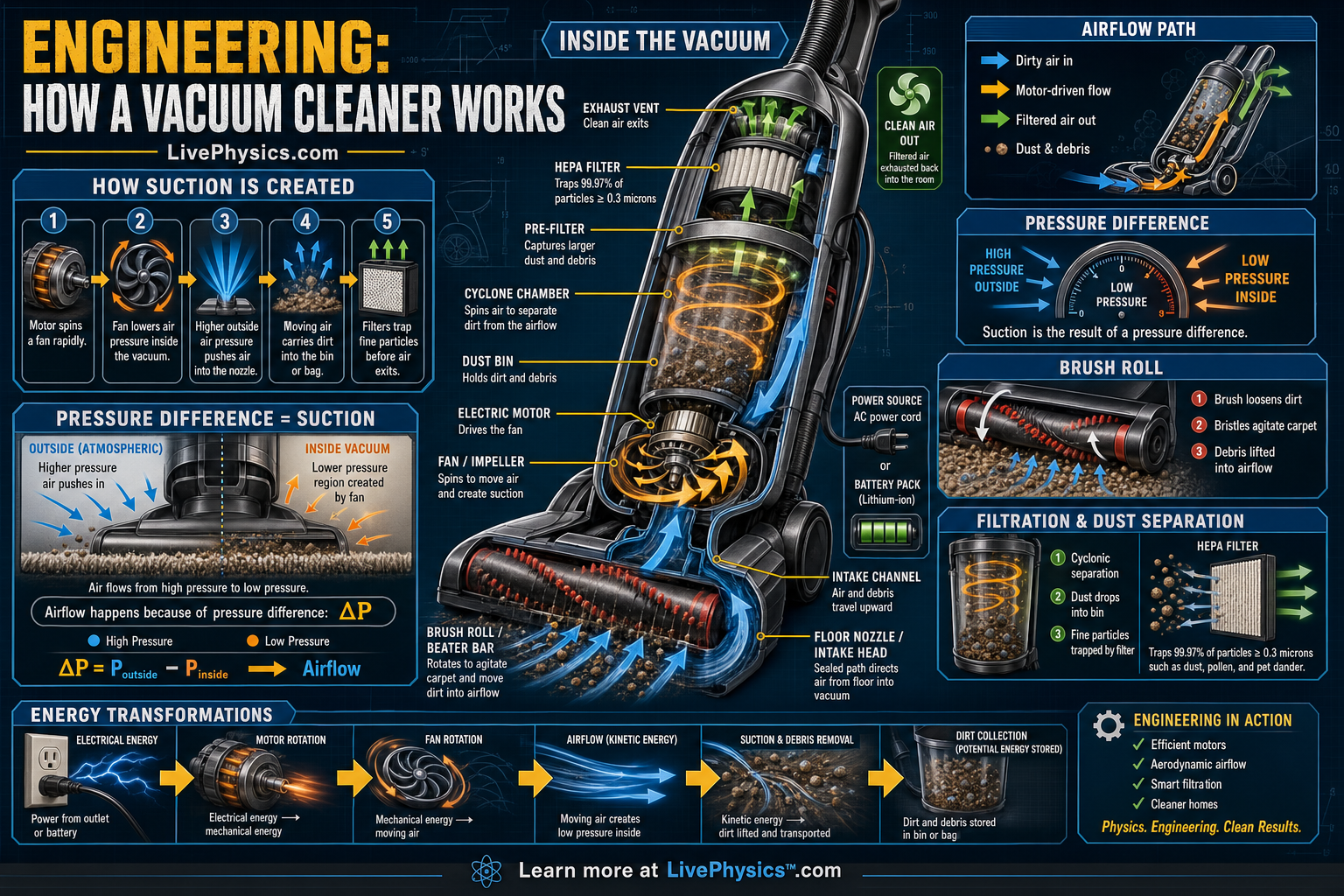

Inside an upright vacuum, a fan driven by a motor pulls air through a floor intake, past a rotating brush, and into a dirt container or bag. Larger particles are separated by the bag, bin, or cyclonic chamber, while fine dust is trapped by filters before air exits through the exhaust. Good design must balance strong airflow with low resistance so the motor does not overheat. Engineers also design the brush roll, ducts, seals, and exhaust path to clean effectively while keeping noise, weight, and energy use manageable.
Key Facts
- Air moves from higher pressure to lower pressure: flow is driven by pressure difference.
- Pressure difference can be written as ΔP = Poutside - Pinside.
- Motor power is the rate of energy use: P = E/t.
- Electrical power is given by P = IV, where I is current and V is voltage.
- Airflow rate can be estimated by Q = Av, where A is duct area and v is air speed.
- Clogged filters increase resistance, reduce airflow, and can make the motor run hotter.
Vocabulary
- Pressure difference
- The difference in air pressure between two locations that causes air to flow from higher pressure to lower pressure.
- Impeller
- A rotating fan inside the vacuum that adds energy to the air and helps create the low pressure region.
- Airflow rate
- The volume of air moving through the vacuum each second, often measured in cubic meters per second or liters per second.
- Filtration
- The process of trapping particles in a bag, screen, or filter while allowing air to pass through.
- Cyclonic separation
- A method that spins dusty air so heavier particles move outward and fall into a collection bin.
Common Mistakes to Avoid
- Thinking suction alone picks up dirt, which is wrong because dirt is mainly carried by moving air and loosened by the brush roll.
- Ignoring leaks in hoses or seals, which is wrong because leaks reduce the pressure difference at the floor intake and weaken cleaning performance.
- Assuming a dirtier filter always traps more dust better, which is wrong because clogged filters block airflow and can reduce pickup.
- Confusing motor power with cleaning power, which is wrong because a high wattage motor can still clean poorly if airflow paths, filters, and brush design are inefficient.
Practice Questions
- 1 A vacuum motor uses 120 V and draws 6.0 A. What electrical power does it use in watts?
- 2 Air moves through a hose with cross-sectional area 0.0030 m^2 at a speed of 18 m/s. Use Q = Av to find the airflow rate in m^3/s.
- 3 A vacuum has a strong motor, but its filter is clogged and its hose has a small leak. Explain how each problem affects airflow and cleaning performance.
