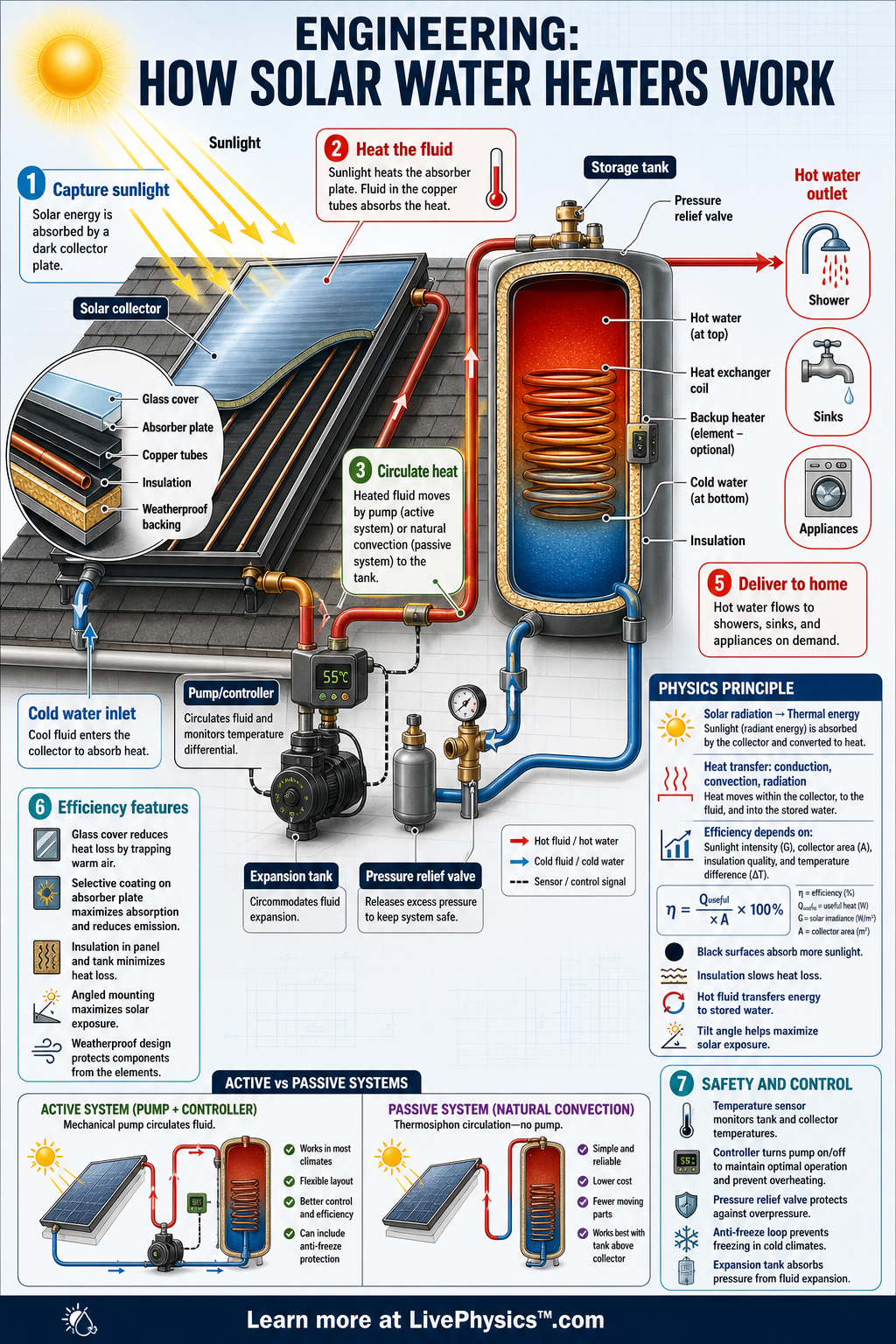

A solar water heater uses sunlight to raise the temperature of water for showers, sinks, laundry, or space heating. Instead of turning sunlight into electricity first, it captures thermal energy directly, which can be very efficient. The main parts are a solar collector, circulating pipes, an insulated storage tank, and controls or valves that guide the flow.
This technology matters because heating water is a large part of home energy use, and sunlight can reduce fuel costs and emissions.
Understanding How Solar Water Heaters Work
Most collectors work by using a dark absorber surface beneath a transparent cover. Sunlight passes through the cover and warms the absorber. Metal pipes bonded to that surface carry water or a heat transfer fluid away with the captured heat.
The cover reduces cooling caused by wind, much like a greenhouse. Good collectors have insulation behind the absorber, so less heat escapes through the back. Flat plate collectors are common in mild climates.
Evacuated tube collectors use glass tubes with very little air inside. The near vacuum greatly reduces heat loss, so these tubes can work well in cold or windy weather.
Moving heat from the roof to the tank requires a circulation method. In a thermosiphon system, warmer fluid naturally rises while cooler fluid sinks. The storage tank must sit above the collector for this to happen reliably.
This simple arrangement needs no pump, but the roof may need to support the heavy tank. Active systems use a small pump and a controller. A sensor compares the collector temperature with the tank temperature.
The controller runs the pump only when the collector is hot enough to add useful heat. Running it at the wrong time could carry heat from the tank back to a cool collector.
Climate changes the engineering choices. In places where pipes can freeze, water is often kept inside the building and a separate fluid circulates through the collector. This fluid carries heat to a heat exchanger, where it warms the household water without mixing with it.
Antifreeze solutions protect the outdoor loop, but they must be checked because their performance can decline over time. Some systems drain the collector pipes after the pump stops, leaving little liquid outdoors to freeze.
In very hot, sunny conditions, the opposite problem can occur. Water or fluid may become extremely hot, so pressure relief valves and expansion tanks are needed to prevent dangerous pressure buildup.
A storage tank works best when it keeps hot water near the top and colder water near the bottom. This layering is called thermal stratification. Drawing hot water from the top provides the hottest supply, while sending cooler water toward the collector helps it collect heat efficiently.
Mixing inside the tank reduces this useful temperature difference. Students should pay attention to energy losses as well as energy gains. Long exposed pipes, poor insulation, shade from trees, and a collector facing away from the strongest sunlight can greatly lower performance.
A backup heater is usually included because cloudy days, high demand, and nighttime still happen. The solar system reduces the work that backup heater must do rather than guaranteeing hot water in every condition.
Key Facts
- Useful heat gained by water: Q = mcΔT
- Thermal power collected: P = ηIA, where η is efficiency, I is solar intensity, and A is collector area
- Mass flow rate heat transfer: P = ṁcΔT
- Water has a high specific heat capacity: c ≈ 4186 J/(kg·°C)
- Collector tilt is often chosen near the local latitude to improve yearly solar capture
- Insulation reduces heat loss from pipes and tanks by slowing conduction, convection, and radiation
Vocabulary
- Solar collector
- A device that absorbs sunlight and transfers its energy as heat to water or a heat-transfer fluid.
- Storage tank
- An insulated tank that stores heated water so it can be used later when sunlight is weak or unavailable.
- Heat exchanger
- A component that transfers heat from one fluid to another without mixing the fluids.
- Thermosiphon
- A natural circulation effect in which warmer, less dense fluid rises and cooler, denser fluid sinks.
- Efficiency
- The fraction of incoming solar energy that becomes useful heat in the water.
Common Mistakes to Avoid
- Assuming the collector makes electricity, which is wrong because a solar water heater usually captures heat directly rather than using photovoltaic cells.
- Ignoring heat loss from the tank and pipes, which is wrong because poorly insulated parts can lose much of the collected energy before the water is used.
- Using Q = mcΔT with mass in liters, which is wrong because the formula requires mass in kilograms, though 1 liter of water is approximately 1 kilogram.
- Thinking hotter water always means a better system, which is wrong because very high temperatures can increase heat loss, reduce efficiency, and create safety risks.
Practice Questions
- 1 A solar collector heats 80 kg of water from 20°C to 55°C. How much thermal energy is added to the water? Use c = 4186 J/(kg·°C).
- 2 Sunlight intensity on a 3.0 m² collector is 800 W/m², and the collector efficiency is 55%. What useful heating power does the system deliver?
- 3 A house uses hot water mostly in the evening after sunset. Explain why an insulated storage tank is essential for this system and how poor insulation would affect performance.
