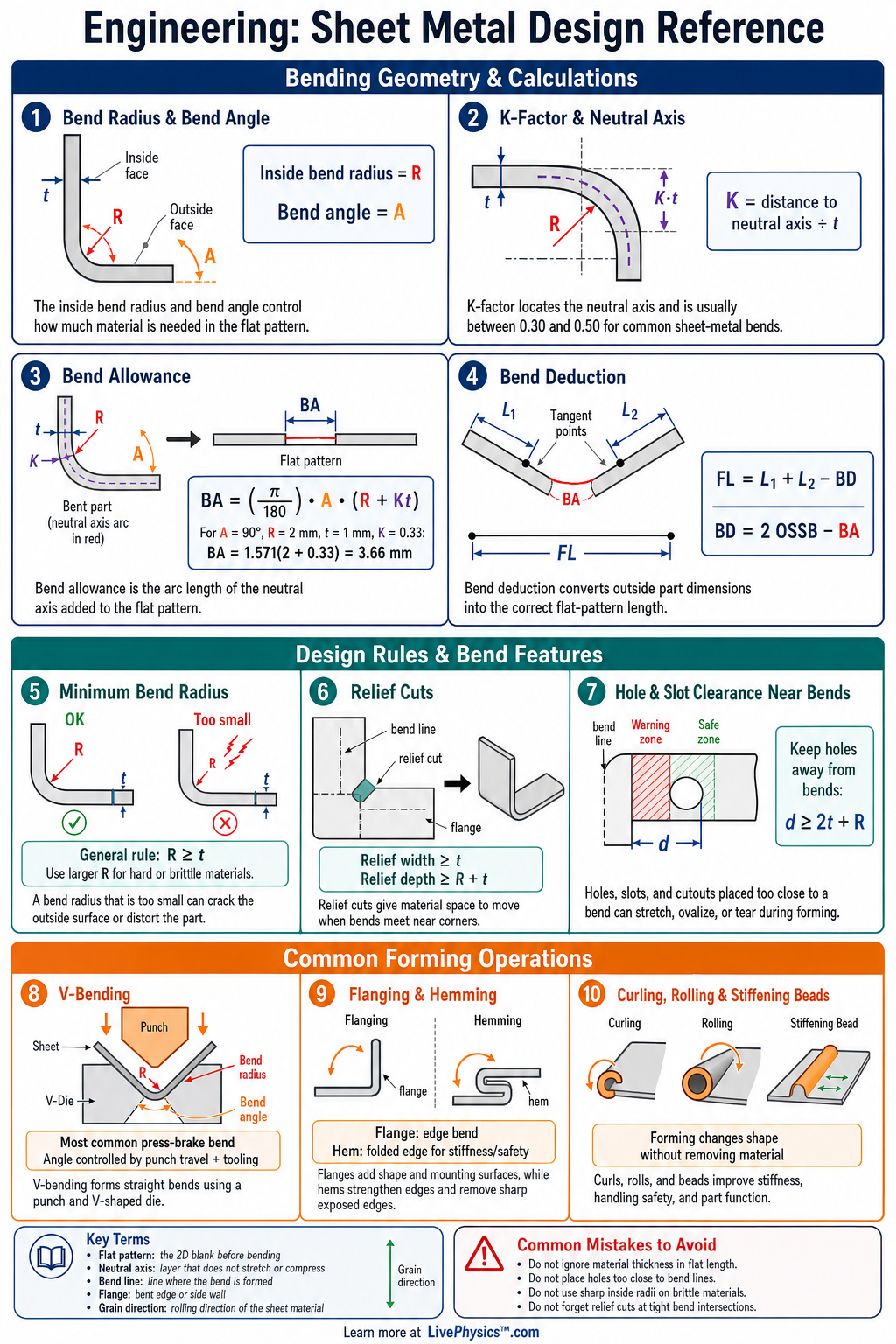

Sheet metal design uses flat patterns, bends, cutouts, and forming operations to turn thin metal sheets into useful parts. This cheat sheet helps students connect part drawings to manufacturable designs. It focuses on the geometry and design rules needed for accurate bend layouts, clean features, and fewer fabrication problems.
Students can use it as a quick reference when sketching, modeling, or checking a sheet metal part.
Key Facts
- Bend allowance estimates the arc length added by a bend and can be calculated with BA = angle in degrees x pi/180 x (inside radius + K-factor x thickness).
- Bend deduction helps find the flat pattern length and can be calculated with BD = 2 x outside setback - bend allowance.
- Outside setback for a 90 degree bend can be calculated with OSSB = inside radius + thickness.
- Flat length for a part with one bend can be calculated with flat length = flange 1 length + flange 2 length - bend deduction.
- K-factor is usually between 0.30 and 0.50 and represents the neutral axis location as K = distance from inside face to neutral axis / material thickness.
- A common starting rule is minimum inside bend radius = 1 x material thickness, but harder or thicker materials often need larger radii.
- Holes should usually be placed at least 2 x material thickness plus bend radius away from a bend to reduce stretching and distortion.
- Relief cuts near bend ends should be at least as wide as the material thickness and long enough to reach past the bend tangent line.
Vocabulary
- Bend allowance
- The length of material along the neutral axis that is used up by a bend in a flat pattern.
- Bend deduction
- The amount subtracted from the total outside flange lengths to find the correct flat pattern length.
- K-factor
- A ratio that describes where the neutral axis lies through the thickness of the sheet during bending.
- Neutral axis
- The layer inside the sheet metal that does not stretch or compress during bending.
- Bend radius
- The inside radius formed at a bend, measured from the inside surface of the sheet.
- Relief cut
- A small cut added near a bend or corner to prevent tearing, bulging, or unwanted deformation.
Common Mistakes to Avoid
- Using outside dimensions as the flat length without bend deduction is wrong because the material stretches and compresses around the bend.
- Placing holes too close to a bend is wrong because the bending process can stretch the hole into an oval or tear the edge.
- Choosing a bend radius smaller than the material can safely form is wrong because it may cause cracking, especially in hard materials.
- Ignoring grain direction is wrong because bending parallel to the grain can increase the risk of cracking in some sheet metals.
- Forgetting relief cuts at tight corners is wrong because the metal needs space to move during forming without buckling or tearing.
Practice Questions
- 1 A 90 degree bend uses thickness = 2.0 mm, inside radius = 2.0 mm, and K-factor = 0.33. Calculate the bend allowance using BA = angle x pi/180 x (inside radius + K-factor x thickness).
- 2 A sheet metal bracket has two outside flange lengths of 40 mm and 60 mm. If the bend deduction is 3.5 mm, calculate the flat length.
- 3 A designer wants to place a hole near a bend in 1.5 mm sheet metal with an inside bend radius of 2.0 mm. Using the rule distance = 2 x thickness + bend radius, what minimum distance from the bend should be used?
- 4 Explain why a part with the same outside dimensions may need different flat pattern lengths when made from different materials or thicknesses.
Understanding Sheet Metal Design Reference
When a sheet is bent, the metal near the inside surface is squeezed while the metal near the outside surface is stretched. Between them is a layer that changes length very little. This is the neutral axis.
Its position controls the developed length of the flat blank. The K factor is a practical way to locate that layer through the thickness. It is not a universal property of a metal.
It changes with alloy, temper, thickness, bend radius, forming method, and tooling. A value taken from a chart is useful for an early layout, but a real shop often uses test bends to refine it. Small errors in each bend can build into a noticeably wrong final size on a part with several folds.
Bend allowance and bend deduction describe the same physical bend from different layout viewpoints. Bend allowance is useful when dimensions are measured to bend tangent points. Bend deduction is useful when dimensions are given from outside edges of finished flanges.
Students should first identify exactly where every drawing dimension begins and ends. Mixing inside dimensions, outside dimensions, and tangent dimensions is a common source of bad flat patterns. For a ninety degree bend, the outside setback comes from the inside radius plus the sheet thickness.
That distance helps connect the finished shape to the flat layout. CAD sheet metal tools perform these calculations, but the software result is only as reliable as the material rule entered into the model.
The bend radius matters because metal has limits. A tight bend forces high strain into the outside surface. Soft aluminum may tolerate a tighter radius than hard aluminum or high strength steel.
If the radius is too small, cracks can form along the bend. Rolled sheet has a grain direction left by the manufacturing process. Bending across the grain usually lowers the risk of cracking.
Bending parallel to the grain can be less forgiving, especially in hard material. Springback matters too. After the punch and die release the part, the bend opens slightly.
Press brakes compensate by forming a little past the required final angle. The amount depends on the material and the tooling.
Features near bends need room because the material must flow during forming. A hole placed too close can become oval, move from its intended location, or cause a crease. Slots, notches, and relief cuts can prevent tearing at the ends of a bend.
A relief must extend beyond the bend tangent area, since this is where deformation reaches the flat sheet. Hems create folded safe edges and add stiffness, but they need enough clearance for the folding tool. Common operations such as flanges, channels, joggles, louvers, and countersinks may require a planned forming order.
A later bend can make an earlier feature inaccessible to the tool. Before finalizing a design, students should check bend direction, tool clearance, feature spacing, grain direction, and whether the part can actually be removed from the forming machine.
