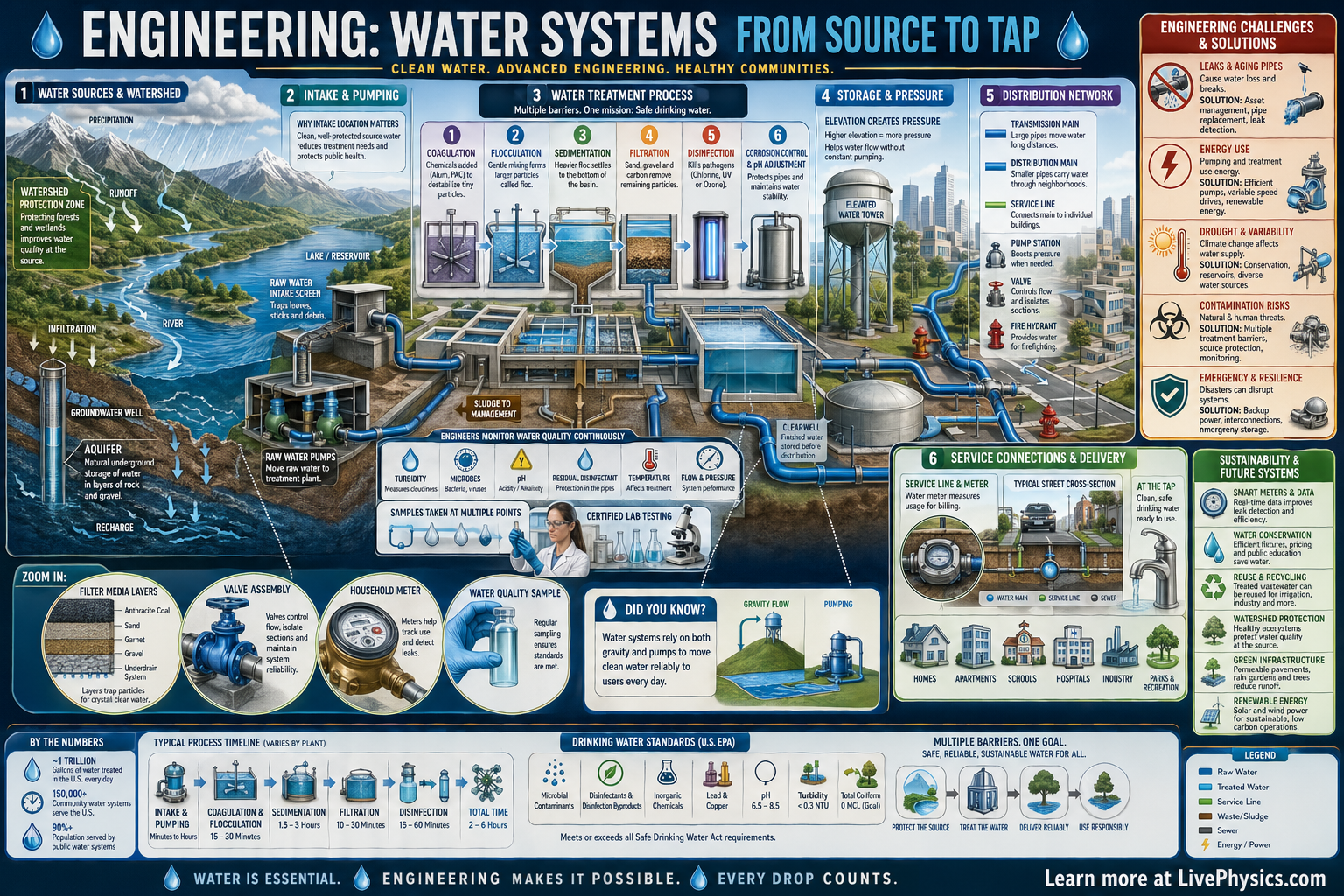

Water Systems Engineering: From Source to Tap
Reservoirs, Treatment Plants, Pipes, and Storage
Related Labs
Related Worksheets
Water systems move water from rivers, lakes, reservoirs, or underground aquifers to homes, schools, and businesses. This process matters because safe drinking water protects public health, supports industry, and allows cities to function every day. Engineers design these systems to deliver enough water at the right pressure while keeping contamination out. They must also plan for droughts, storms, population growth, and aging infrastructure.
From source to tap, water passes through several connected stages: collection, treatment, storage, distribution, and monitoring. Treatment plants remove particles, kill harmful microbes, and adjust water chemistry so it is safe and less corrosive to pipes. Pumps, tanks, valves, and pipe networks then move the water through a distribution system to users. Sensors, testing, and maintenance help engineers detect leaks, maintain pressure, and ensure water quality all the way to the tap.
Key Facts
- Flow rate is Q = A v, where A is pipe cross sectional area and v is average fluid speed.
- Pressure in a fluid can be estimated by P = rho g h for a height difference h.
- Water treatment often includes coagulation, sedimentation, filtration, and disinfection.
- Chlorine or other disinfectants are added to inactivate pathogens and leave a protective residual in the system.
- Water towers and elevated tanks store water and help maintain system pressure during peak demand.
- Engineers reduce pipe losses and leakage because higher losses require more pumping energy and raise operating cost.
Vocabulary
- Aquifer
- An aquifer is an underground layer of rock or sediment that stores and transmits groundwater.
- Coagulation
- Coagulation is the treatment step where chemicals cause tiny suspended particles to clump together.
- Disinfection
- Disinfection is the process of killing or inactivating harmful microorganisms in water.
- Distribution system
- A distribution system is the network of pipes, pumps, valves, and storage tanks that delivers treated water to users.
- Residual chlorine
- Residual chlorine is the small amount of chlorine left in treated water to keep it protected as it moves through pipes.
Common Mistakes to Avoid
- Assuming clear water is always safe, because dangerous microbes and dissolved chemicals can be present even when water looks clean.
- Confusing wastewater treatment with drinking water treatment, because the goals, processes, and final water quality standards are different.
- Thinking pumps alone control all water pressure, because elevation and storage tanks also strongly affect pressure in a system.
- Ignoring leaks as a minor issue, because water loss, pressure drops, contamination risk, and energy waste can all increase when pipes leak.
Practice Questions
- 1 A pipe has a cross sectional area of 0.20 m^2 and the average water speed is 1.5 m/s. What is the flow rate Q in m^3/s?
- 2 Water in an elevated tank is 25 m above a neighborhood. Using P = rho g h with rho = 1000 kg/m^3 and g = 9.8 m/s^2, what pressure does this height provide in pascals?
- 3 A city can either add more pumping stations or build a higher storage tank to improve service reliability. Explain one advantage of using elevated storage in addition to pumps.
