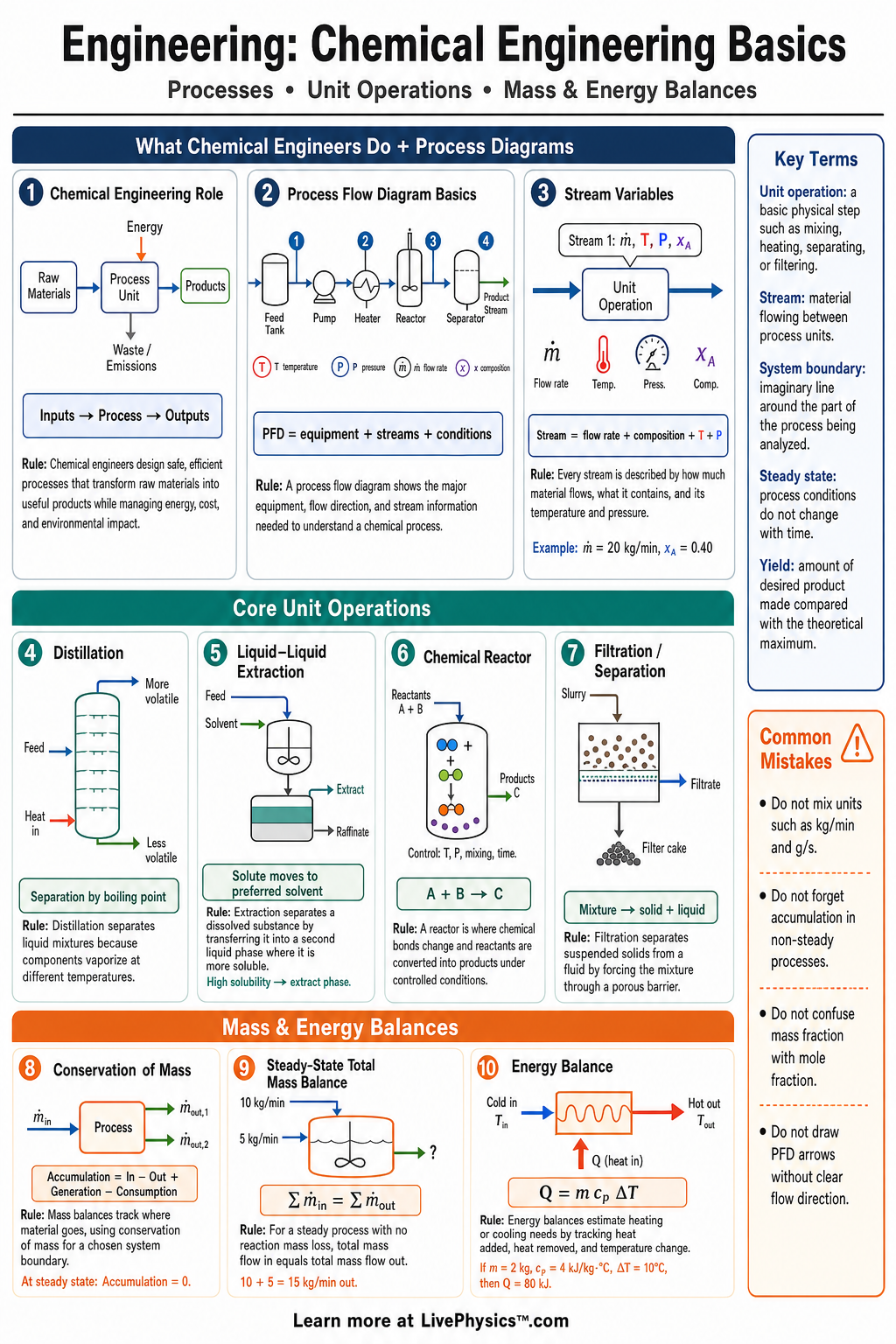

Chemical Engineering Basics Cheat Sheet
A printable reference covering mass balance, energy balance, reaction rates, unit operations, and process safety for grades 9-12.
Related Tools
Related Labs
Related Worksheets
Chemical engineering uses chemistry, physics, math, and engineering design to turn raw materials into useful products safely and efficiently. This cheat sheet summarizes the basic tools students need to understand chemical processes, such as tracking material flow, energy flow, and reactions. It is useful for reading process diagrams, solving introductory engineering problems, and connecting classroom science to real industries. Students in grades 9-12 can use it as a quick reference for formulas, vocabulary, and common problem-solving steps. The most important ideas are conservation of mass, conservation of energy, reaction rate, and safe process design. A mass balance tracks what enters, leaves, accumulates, or reacts inside a system. An energy balance tracks heat, work, and temperature changes in equipment such as heaters, coolers, and reactors. Unit operations, such as mixing, filtration, distillation, and heat exchange, are the building blocks used to design complete chemical processes.
Key Facts
- A general mass balance is accumulation = input - output + generation - consumption.
- For a steady-state process with no reaction, input flow rate = output flow rate.
- Mass flow rate is calculated by m_dot = density x volumetric flow rate.
- A simple heat transfer calculation is q = m c Delta T, where q is heat, m is mass, c is specific heat, and Delta T is temperature change.
- Reaction rate describes how fast reactants are consumed or products are formed, often measured in mol/(L s).
- Percent yield is percent yield = actual yield / theoretical yield x 100%.
- Concentration in molarity is M = moles of solute / liters of solution.
- A process flow diagram shows major equipment, material streams, and energy flows in a chemical process.
Vocabulary
- Mass balance
- A calculation that tracks the mass entering, leaving, accumulating, being created, or being consumed in a system.
- Energy balance
- A calculation that tracks heat, work, and energy changes in a process or piece of equipment.
- Unit operation
- A basic process step, such as mixing, heating, filtering, or separating, used to build larger chemical processes.
- Reactor
- A vessel or system where chemical reactions are controlled to make desired products.
- Steady state
- A condition where process variables do not change with time because input and output effects are balanced.
- Process safety
- The practice of identifying and controlling hazards to prevent fires, explosions, toxic releases, and equipment failures.
Common Mistakes to Avoid
- Ignoring units in flow calculations is wrong because mass flow rate, volumetric flow rate, and molar flow rate are not interchangeable.
- Assuming input always equals output is wrong because reactions, leaks, accumulation, or phase changes can change the amount of material in a system.
- Using q = m c Delta T without checking the sign of Delta T is wrong because heating and cooling have opposite energy directions.
- Confusing percent yield with percent conversion is wrong because yield compares actual product to theoretical product, while conversion tracks how much reactant is used.
- Forgetting safety limits is wrong because real chemical processes must control pressure, temperature, toxicity, and flammability, not just produce the desired amount.
Practice Questions
- 1 A tank receives water at 12 kg/min and drains water at 9 kg/min. If no water reacts or evaporates, what is the accumulation rate in kg/min?
- 2 A liquid has density 800 kg/m3 and flows at 0.050 m3/s. What is its mass flow rate?
- 3 How much heat is needed to warm 2.0 kg of water from 20°C to 60°C if c = 4184 J/(kg °C)?
- 4 Why is a mass balance useful when designing a chemical reactor, even before choosing the exact reactor size?
