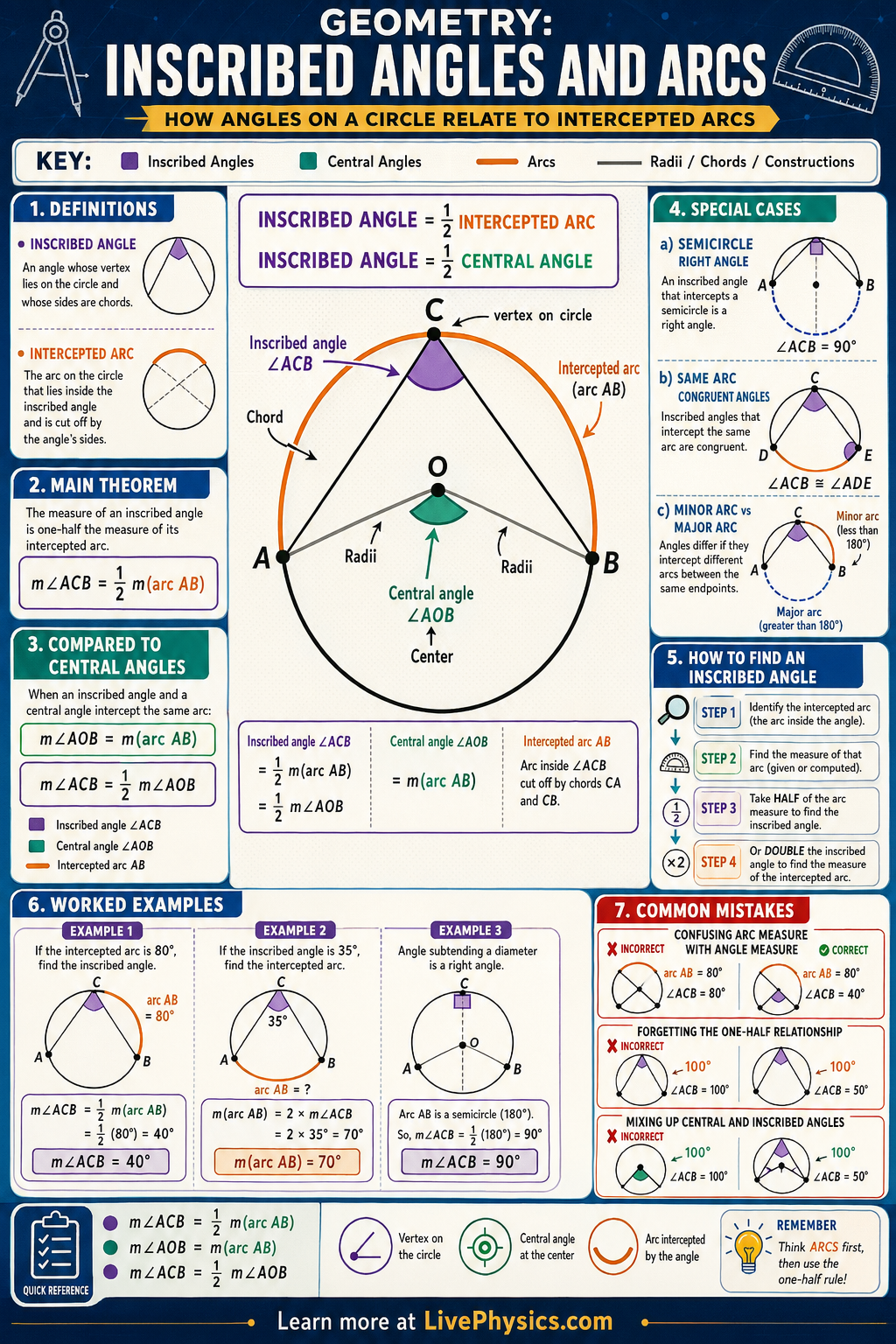

Inscribed angles and arcs are key ideas in circle geometry because they connect angle measures to parts of a circle. An inscribed angle has its vertex on the circle, and its sides cut off an arc called the intercepted arc. These relationships help students solve problems about circles quickly and accurately.
They also appear in proofs, constructions, and many standardized test questions.
The main rule is that an inscribed angle measures half of its intercepted arc. A central angle that intercepts the same arc has the same measure as the arc itself, so the inscribed angle is half the central angle. Special cases, such as angles intercepting a semicircle, lead to useful results like a right angle.
Understanding these patterns makes it easier to compare arcs, chords, and angles in one diagram.
Understanding Inscribed Angles and Arcs
The hardest part is usually choosing the correct intercepted arc. Start at one point where a side of the angle meets the circle. Follow the circle to the point where the other side meets it.
The arc inside the opening of the angle is the intercepted arc. The vertex itself is not part of that arc. In a crowded diagram, lightly mark the two endpoints first.
Then trace the arc that lies opposite the vertex. This prevents a common error of using the larger arc when the smaller one is needed.
If the angle opens toward the long way around the circle, then it can intercept a major arc. Arc names with three letters often identify a major arc because the middle letter shows which route around the circle to use.
The half relationship has a useful visual reason. A central angle turns from one radius to another radius, with its vertex at the center. An inscribed angle uses the same two circle points, but its vertex sits on the edge of the circle.
From the edge, the opening looks narrower. A proof can be built by drawing segments from the center to the angle vertex and to the arc endpoints. Those segments create isosceles triangles because all radii of one circle have equal length.
The equal base angles in those triangles lead to the half result. This proof matters because it shows that the rule comes from triangle facts, not from a pattern to memorize.
Several angles can stand at different places on a circle while facing the same two arc endpoints. They all have equal measure, even if one looks much wider because of the shape of the drawing. Geometry diagrams are not always drawn to scale.
Trust the marked arcs and given measures instead of the picture. This idea is used when finding unknown angles in a diagram with many chords.
A chord is the straight segment joining two points on a circle. Equal inscribed angles can help prove that two angles are congruent, then other triangle facts may reveal missing side lengths or angle measures.
A diameter creates an especially important setup. Its endpoints split the circle into two equal halves. Any point on the remaining circle can be joined to those endpoints, forming a triangle with the diameter as one side.
The angle at that remaining point is a right angle. This is called Thales' theorem in many courses. It appears in coordinate geometry when a circle is drawn with a diameter between two known points.
It also appears in practical design. A builder or engineer may use a circular arc to set out a square corner, though real measurements still need careful checking.
Cyclic quadrilaterals bring these ideas together. A cyclic quadrilateral has all four vertices on one circle. Each pair of opposite angles faces arcs that together make one full circle.
Their measures therefore add to one hundred eighty degrees. When solving a problem, look for a four sided figure whose corners lie exactly on the circle. Do not assume a quadrilateral is cyclic just because it is drawn near a circle.
If it is given or proven to be cyclic, one known angle immediately determines the opposite angle. This property is often combined with parallel line rules, triangle angle sums, and exterior angles in longer proofs.
Key Facts
- Inscribed angle = (1/2) x intercepted arc
- Central
- If an inscribed angle and a central angle intercept the same arc, then inscribed angle = (1/2) x central angle
- An inscribed angle that intercepts a semicircle measures 90 degrees
- Inscribed angles that intercept the same arc are congruent
- In a cyclic quadrilateral, opposite angles are supplementary:
Vocabulary
- Inscribed angle
- An angle whose vertex lies on the circle and whose sides are chords of the circle.
- Intercepted arc
- The arc that lies inside an angle and is cut off by the sides of that angle.
- Central angle
- An angle whose vertex is at the center of the circle.
- Chord
- A line segment with both endpoints on the circle.
- Cyclic quadrilateral
- A four-sided figure whose vertices all lie on the same circle.
Common Mistakes to Avoid
- Using the full arc measure for an inscribed angle, which is wrong because an inscribed angle is half its intercepted arc, not equal to it.
- Confusing a central angle with an inscribed angle, which is wrong because the vertex location determines the rule you use.
- Choosing the wrong intercepted arc, which is wrong because the arc must be the one inside the angle formed by the two chords.
- Forgetting that opposite angles in a cyclic quadrilateral add to 180 degrees, which is wrong because these angles are supplementary, not congruent in general.
Practice Questions
- 1 An inscribed angle intercepts an arc measuring 86 degrees. What is the measure of the inscribed angle?
- 2 A central angle intercepts the same arc as an inscribed angle. If the central angle measures 120 degrees, what is the measure of the inscribed angle?
- 3 Two inscribed angles in the same circle intercept the same arc. Explain whether the angles must be equal and state the circle theorem that justifies your answer.
