Distance-Time & Velocity-Time Graphs

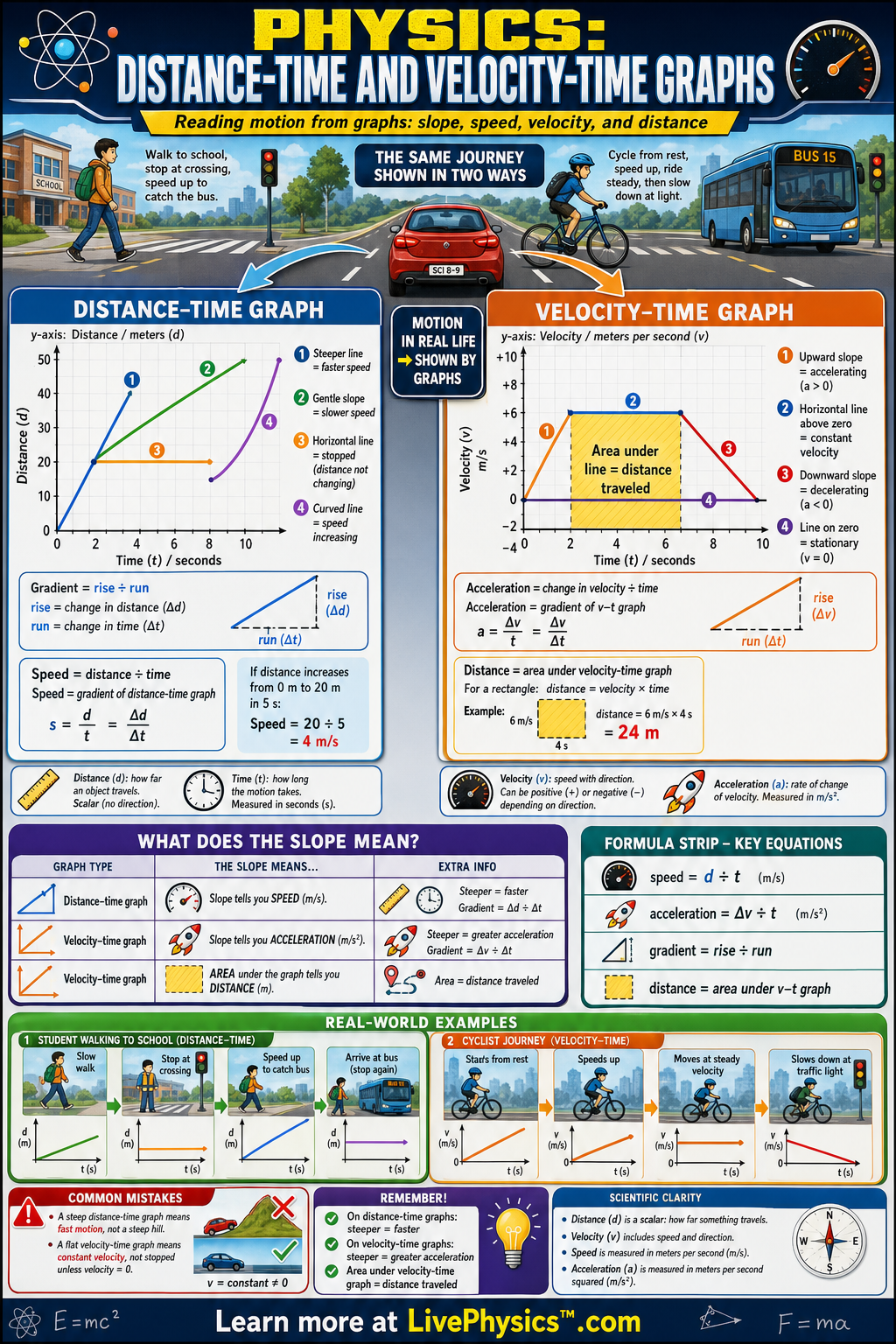

Understanding Distance-Time & Velocity-Time Graphs

Every motion graph depends on careful choices about axes, units, and scale. Time is usually placed along the horizontal axis because it moves forward during an experiment. The vertical axis records distance or velocity.

Before interpreting a line, read the labels and the size of each square. A line can look steep simply because the vertical scale is stretched.

Each plotted point represents one measurement at one moment. On a graph from real data, points may not lie perfectly on a neat line because timing, measuring distance, and human reaction all create small errors.

For a distance-time graph, calculate the slope by choosing two clear points on the same straight section. Find how much the distance changes, then divide it by how much the time changes. Using points far apart usually reduces the effect of reading errors.

A straight rising section means equal distances are covered in equal time intervals. A curve means the speed is changing. The slope of a curve can be found at one instant by drawing a tangent that just touches the curve there.

Distance alone does not tell the direction of travel. Someone walking away from home, then returning, needs extra information or a displacement graph to show that change of direction.

Velocity includes direction, so it needs a chosen positive direction. For example, motion east might be positive and motion west negative. A line below zero can therefore show steady motion in the negative direction, not an object at rest.

The sign of acceleration needs careful thought too. Negative acceleration means velocity is becoming more negative. It slows an object only when the object has positive velocity.

If an object already has negative velocity, negative acceleration makes it move faster in that negative direction. This is a common source of mistakes in exam questions and practical work.

The area method on a velocity-time graph works because velocity tells how much position changes each second. For a flat section, multiply the velocity by the time interval. For a sloping section, split the region into simple rectangles and triangles, then add their areas.

If velocity stays above zero, this gives the distance travelled. When part of the graph is below zero, areas below the axis represent travel in the opposite direction.

Adding signed areas gives displacement. Adding the sizes of all areas gives total distance travelled.

Students meet these ideas in speedometer readings, fitness trackers, journey planners, and motion sensors used in school experiments. A car can have a changing velocity even when its speedometer changes only slightly, such as when it turns. When sketching a graph from a written description, break the journey into short stages.

Mark starts, stops, constant motion, and changes in motion separately. Check that the final point matches the stated final distance or velocity. Pay close attention to units, especially minutes versus seconds and kilometres versus metres, since a correct graph method can still produce a wrong answer after a unit mistake.
