Electric circuits provide a controlled path for electric charge to move and transfer energy to devices such as bulbs, motors, and speakers. Two of the most important circuit layouts are series circuits and parallel circuits. They behave differently because components are connected in different ways.
Understanding the difference helps explain why a string of old holiday lights can go out all at once, while lights in a house usually work independently.

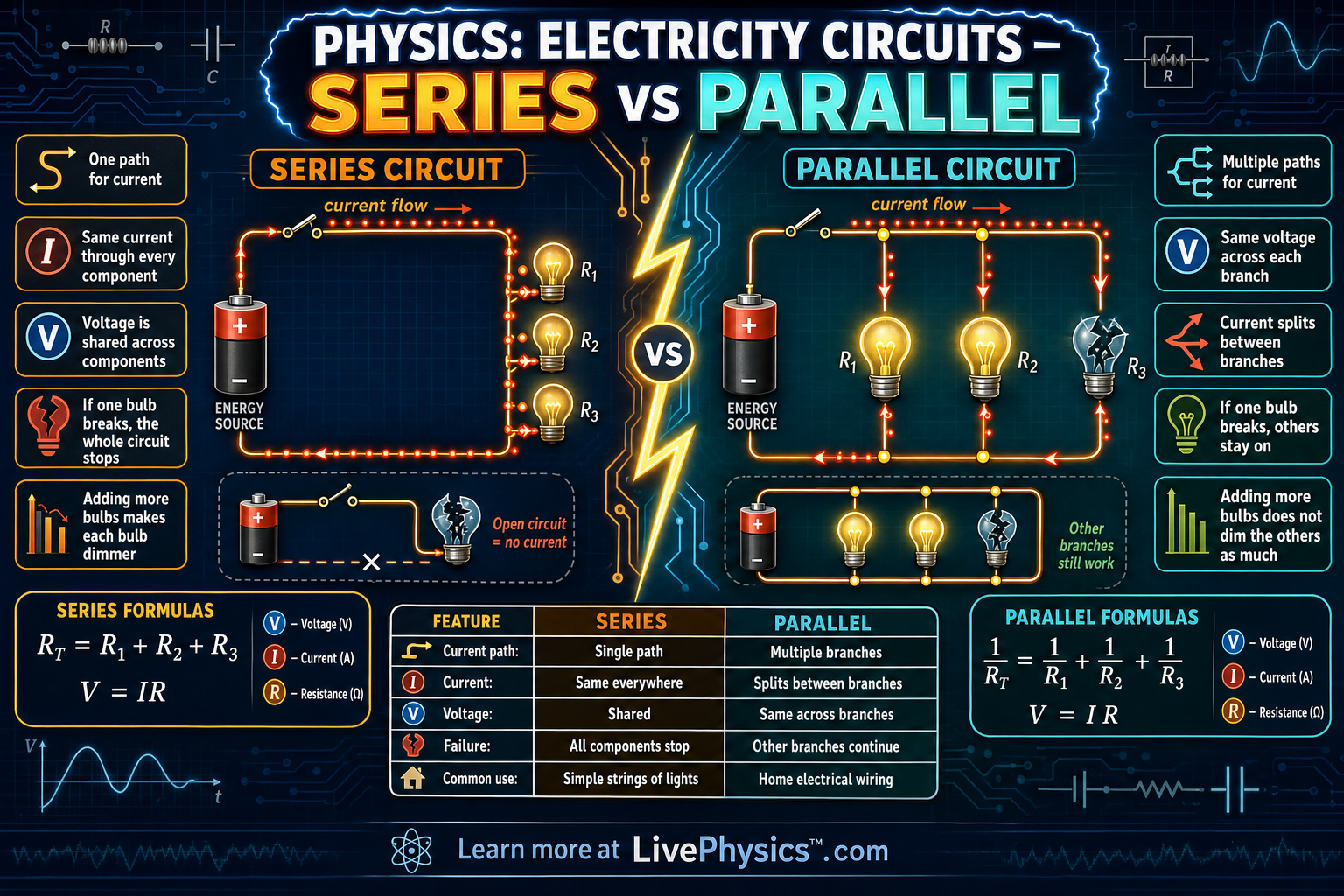

In a series circuit, charges have only one path, so the same current passes through every component. In a parallel circuit, charges can split among multiple branches, so each branch can have its own current while receiving the same voltage from the source. These rules let engineers predict brightness, battery drain, and what happens when one component fails.
The key ideas are Ohm's law, equivalent resistance, current splitting, and voltage sharing.
Understanding Electricity Circuits
A battery creates a potential difference between its terminals. This is an energy difference, not a supply of current that gets used up. Charges already exist in the metal wires.
When the circuit is complete, an electric field is established through the whole loop. That field pushes charges and transfers energy to the components. In a metal wire, the charges move slowly overall, but the electrical effect reaches the circuit very quickly.
A lamp changes electrical energy mainly into light and thermal energy. A motor changes it into motion, with some energy becoming thermal energy and sound.
Resistance controls how strongly a component opposes charge flow. A larger resistance gives a smaller current when the voltage stays fixed. This is the meaning of Ohm's law, voltage equals current times resistance.
In a series arrangement, every added component makes the total opposition larger. The current from a fixed battery therefore falls. Identical lamps placed in series are usually dimmer than one identical lamp connected to the same battery.
Their brightness can be understood using power. Electrical power equals voltage times current. If the current is small, each lamp transfers less energy each second.
In a parallel arrangement, each branch is connected directly across the source terminals. A branch with low resistance takes more current than a branch with high resistance. This does not mean it takes current away in a fixed amount from other branches.
Each branch responds to the same source voltage. The source must provide the sum of all branch currents. Adding more working branches lowers the total resistance of the circuit and increases the current drawn from the battery or power supply.
This is why batteries run down faster when more devices are switched on. It is also why wires and power supplies have current limits.
Real circuits need safety features because excess current can heat wires rapidly. The heating effect depends on current squared times resistance. Doubling the current can make heating four times greater in the same wire.
A fuse contains a thin section designed to melt if its current becomes unsafe. A circuit breaker opens a switch instead and can usually be reset.
Household sockets use parallel wiring so appliances receive the intended supply voltage. A switch is normally placed in series with the appliance it controls, allowing it to open that appliance's path without stopping other branches.
When solving circuit problems, first draw the nodes, which are points joined by uninterrupted wire. Components connected between the same two nodes are parallel, even if the diagram looks unusual. Components are series only when there is no junction between them, so the same charge flow must pass through each one.
Keep track of units. Voltage is measured in volts, current in amperes, resistance in ohms, and power in watts. Check whether an answer makes physical sense.
The total resistance of parallel branches must be less than the smallest branch resistance. Adding resistance in series must increase the total resistance. These checks catch many common mistakes.
Key Facts
- Ohm's law: V = IR
- Series current is the same through every component: I_total = I_1 = I_2 = I_3
- Series voltage divides across components: V_total = V_1 + V_2 + V_3
- Series equivalent resistance: R_total = R_1 + R_2 + R_3
- Parallel voltage is the same across every branch: V_total = V_1 = V_2 = V_3
- Parallel equivalent resistance: 1/R_total = 1/R_1 + 1/R_2 + 1/R_3
Vocabulary
- Circuit
- A circuit is a closed conducting path that allows electric charge to flow.
- Current
- Current is the rate at which electric charge flows through a point in a circuit.
- Voltage
- Voltage is the electric potential difference that pushes charges through a circuit.
- Resistance
- Resistance is a measure of how strongly a material or component opposes electric current.
- Equivalent resistance
- Equivalent resistance is the single resistance value that could replace a group of resistors without changing the total current from the source.
Common Mistakes to Avoid
- Adding parallel resistors like series resistors is wrong because parallel branches create extra paths and always reduce the total resistance below the smallest branch resistance.
- Assuming current is used up by bulbs is wrong because current is conserved in a closed loop, while electrical energy is transferred to the bulbs.
- Saying every resistor in a series circuit gets the full battery voltage is wrong because the source voltage is divided among the series components.
- Thinking one broken bulb stops every circuit is wrong because an open component stops a series loop but other branches in a parallel circuit can still operate.
Practice Questions
- 1 A 12 V battery is connected to two resistors in series, 4 ohms and 8 ohms. Find the total resistance, the circuit current, and the voltage across each resistor.
- 2 A 9 V battery is connected to two resistors in parallel, 6 ohms and 3 ohms. Find the equivalent resistance, the total current from the battery, and the current in each branch.
- 3 Two identical bulbs are connected to the same battery, first in series and then in parallel. Explain which arrangement makes the bulbs brighter and what happens if one bulb burns out in each arrangement.
