James Clerk Maxwell was a Scottish physicist whose work joined electricity, magnetism, and light into one powerful theory. Before Maxwell, electric and magnetic effects were often studied as separate phenomena. His equations showed that changing electric fields create magnetic fields, and changing magnetic fields create electric fields.
This unification became one of the great turning points in physics because it revealed light as an electromagnetic wave.
Maxwell predicted that electromagnetic waves should travel at a speed given by electric and magnetic constants, and that speed matched the measured speed of light. His ideas later made radio, wireless communication, radar, and modern optics possible. Maxwell also made major contributions to color vision, color photography, thermodynamics, and the kinetic theory of gases.
Einstein later described Maxwell's work as one of the deepest and most fruitful advances in physics.
Understanding James Clerk Maxwell: Master of Electromagnetism
A useful way to understand Maxwell's work is to think in terms of fields. A field assigns a value and direction to every point in space. Around a charged balloon, the electric field points away from positive charge or toward negative charge.
Around a wire carrying current, the magnetic field forms circles around the wire. Field line drawings are models, not physical threads. Their spacing shows relative strength.
The equations describe two important patterns. Some fields spread outward from sources.
Other fields curl around regions of changing conditions. Learning to picture both patterns makes the equations less like a list to memorise.
One of Maxwell's most important corrections involved a charging capacitor. A capacitor has two conducting plates separated by an insulating gap. Current flows through the wires, yet no charged particles cross the gap.
Without an extra idea, the magnetic field near the gap would seem to have no source. Maxwell recognised that the changing electric field between the plates has the same magnetic effect needed to keep the theory consistent.
This is called displacement current, though it is not a flow of charges through empty space. It showed that fields can have physical effects even where ordinary current is absent.
This correction allows a self sustaining travelling disturbance. A changing electric field produces a magnetic field nearby. That changing magnetic field produces an electric field nearby.
The pattern moves forward through space, carrying energy without needing air, water, or any other material medium. Radio waves, microwaves, infrared radiation, visible light, ultraviolet radiation, X rays, and gamma rays are all electromagnetic waves. They differ mainly in frequency and wavelength.
A radio receiver responds to a changing field at its antenna. A microwave oven transfers energy to water molecules. Your eyes detect only a narrow range of frequencies called visible light.
When studying this topic, pay close attention to direction. The direction of an electric field is defined by the force on a positive test charge. Magnetic forces act differently because they depend on the motion of a charged particle.
A stationary charge feels no magnetic force, while a moving charge can be deflected sideways. Use the right hand rule carefully, but understand what it represents rather than treating it as a finger trick. Units matter too.
Electric field strength, magnetic field strength, charge, current, and energy are related but not interchangeable. In real circuits, antennas, motors, and transformers, materials and shapes affect the fields. Maxwell's theory gives the general rules, while the design details determine how strongly a device works.
Key Facts

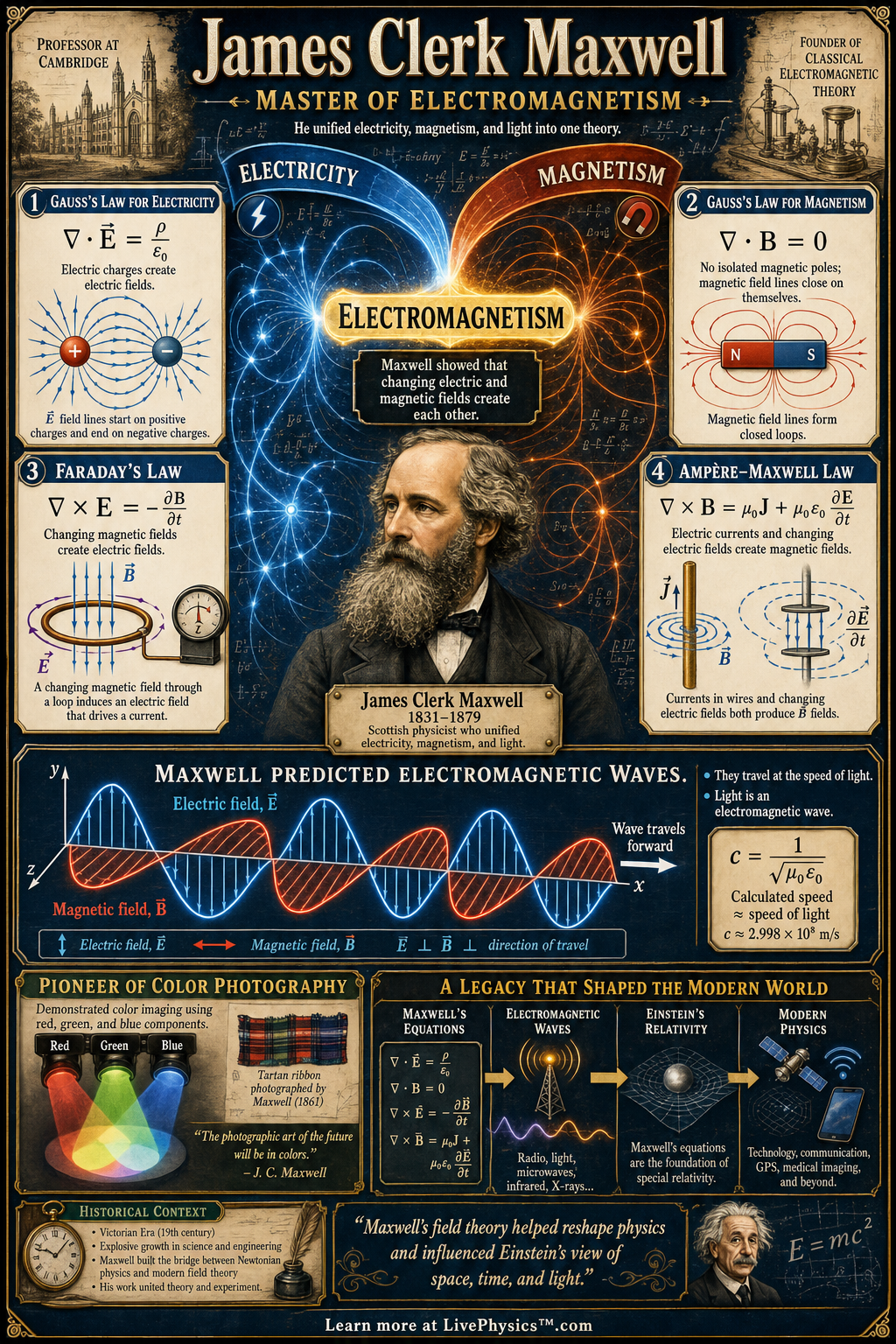

- Maxwell's equations unify electric fields, magnetic fields, electric charge, and electric current.
- Gauss's law for electricity: ∇ · E = ρ/ε0.
- Gauss's law for magnetism: ∇ · B = 0, meaning isolated magnetic monopoles are not observed in classical electromagnetism.
- Faraday's law: ∇ × E = -∂B/∂t, meaning a changing magnetic field produces a circulating electric field.
- Ampere-Maxwell law: ∇ × B = μ0J + μ0ε0∂E/∂t, meaning currents and changing electric fields produce magnetic fields.
- The speed of electromagnetic waves in vacuum is c = 1/sqrt(μ0ε0), which equals the speed of light.
Vocabulary
- Electromagnetic field
- A combined physical field made of electric and magnetic fields that can exert forces on charged particles.
- Maxwell's equations
- A set of four equations that describe how electric and magnetic fields are produced and how they change.
- Displacement current
- A term Maxwell added to Ampere's law to account for magnetic fields produced by changing electric fields.
- Electromagnetic wave
- A self-propagating wave of oscillating electric and magnetic fields that can travel through empty space.
- Kinetic theory
- A theory that explains the properties of gases using the motion and collisions of many tiny particles.
Common Mistakes to Avoid
- Thinking Maxwell discovered only one equation is wrong because his theory is a linked set of four equations that work together.
- Treating electric and magnetic fields as completely separate is wrong because Maxwell showed that changing fields can generate each other.
- Forgetting the displacement current term is wrong because without it Ampere's law fails for changing electric fields, such as in a charging capacitor.
- Saying Maxwell proved light is made of particles is wrong because his electromagnetic theory described light as a wave of electric and magnetic fields.
Practice Questions
- 1 Use c = 1/sqrt(μ0ε0) with μ0 = 4π × 10^-7 N/A^2 and ε0 = 8.85 × 10^-12 C^2/(N m^2) to estimate the speed of an electromagnetic wave in vacuum.
- 2 A radio station broadcasts at a frequency of 100 MHz. Using c = 3.00 × 10^8 m/s and λ = c/f, find the wavelength of the radio wave.
- 3 Explain why Maxwell's prediction that electromagnetic waves travel at the speed of light supported the idea that light is an electromagnetic wave.
