Simple machines are basic devices that make work easier by changing the size or direction of a force. Even though they are simple, they appear everywhere in daily life, from opening a jar to riding a bicycle or lifting a flag. Learning about them helps students connect physics ideas to familiar objects.
The six classical simple machines are the lever, wheel and axle, pulley, inclined plane, wedge, and screw.
Each simple machine works by trading force for distance, which means you often use a smaller force over a longer distance to get the same job done. This trade-off is described by mechanical advantage, which compares output force to input force. Real machines often combine several simple machines into one tool, such as scissors or a wheelbarrow.
Understanding these machines helps explain how engineers design tools, buildings, and transportation systems.

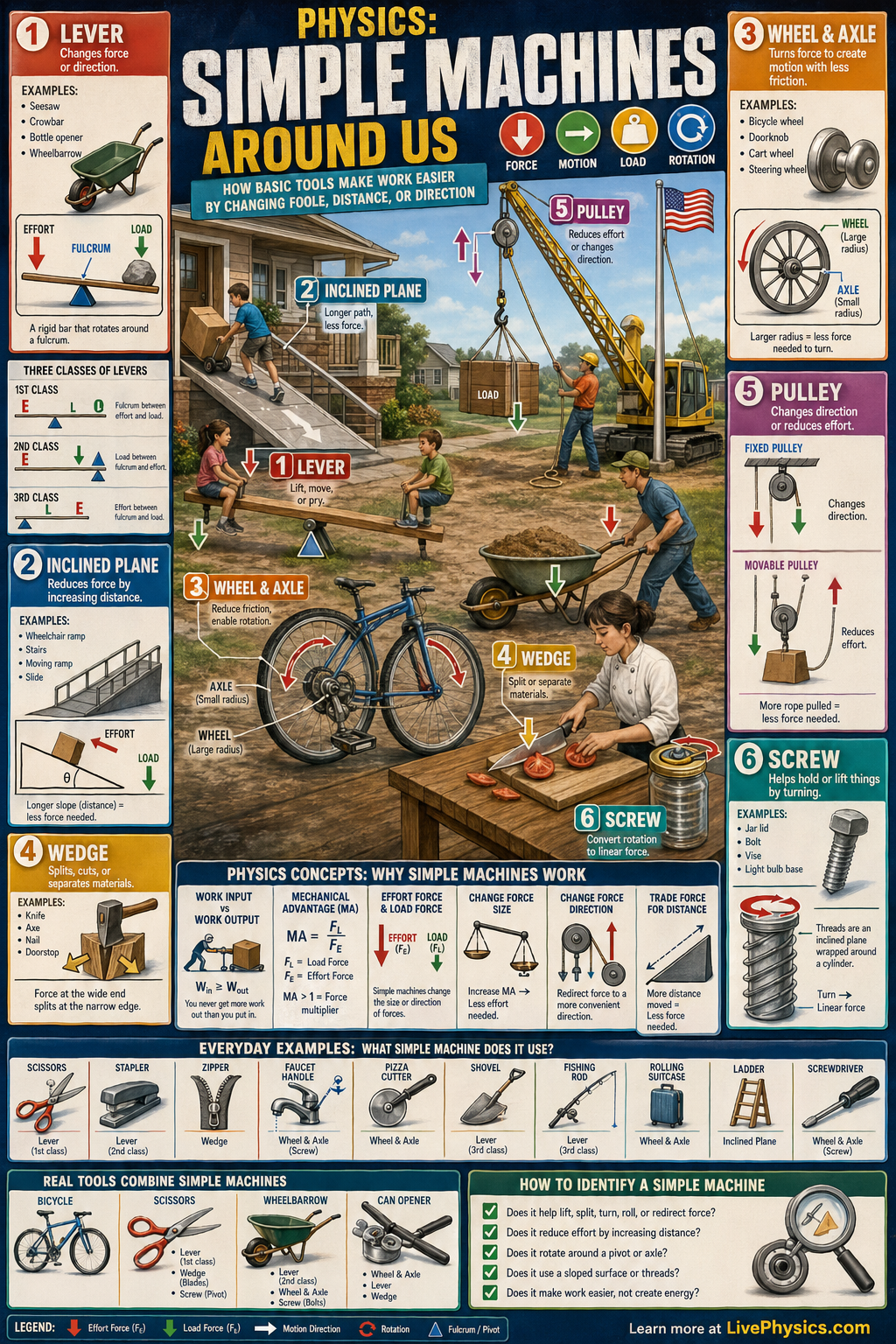

Understanding Simple Machines Around Us
Levers are easiest to understand when you locate three parts. The fulcrum is the turning point. The effort is the force supplied by a person or motor.
The load is the object being moved. Their positions create three lever classes. In a first-class lever, the fulcrum sits between effort and load, as in a seesaw or crowbar.
In a second-class lever, the load is between the fulcrum and effort, as in a wheelbarrow or bottle opener. In a third-class lever, the effort is between the fulcrum and load, as in tweezers or a human forearm. Third-class levers often need more effort force, but they move the load farther and faster.
Wheels and axles work through rotation. A large wheel connected to a smaller axle can increase turning force, which helps a doorknob turn its latch or a steering wheel turn a vehicle's wheels.
Pulleys depend on the direction of the rope and the number of rope sections supporting a load. A fixed pulley mainly lets a person pull downward to lift something upward. This is useful because people can pull down using their body weight.
A movable pulley travels with the load and can reduce the needed pulling force. Construction cranes use pulley systems with several supporting rope sections. An inclined plane spreads a vertical lift over a longer path.
Ramps for wheelchairs, loading trucks, and mountain roads use this idea. A wedge is like two inclined planes joined back to back. Its sharp edge concentrates force into a small area, allowing an axe, knife, chisel, or nail to split or cut material.
A screw is an inclined plane wrapped around a cylinder. Each turn moves it a short distance, producing a strong pushing or pulling effect in bolts, jar lids, clamps, and drills.
Real machines never perform as perfectly as a classroom model. Friction between surfaces turns some input energy into thermal energy. A rough ramp needs more force than a smooth ramp.
Rope rubbing in a pulley, a rusty screw thread, or a bent wheel axle can all reduce performance. This means the actual mechanical advantage is smaller than the ideal value predicted from shape or rope arrangement. Lubricants reduce friction in moving parts, while bearings help wheels and axles rotate smoothly.
Engineers must consider friction because a machine that is easy to use should still be safe, strong, and reliable. A very steep ramp saves space but needs more force. A long shallow ramp needs less force but takes more room.
When studying simple machines, begin by drawing the object in a simple side view. Mark where the effort enters, where the load acts, and where the machine is supported or attached. Then decide whether the machine changes force size, force direction, distance of motion, or several of these effects.
Pay close attention to the distance moved by each part. On a lever, the end farther from the fulcrum travels farther. On a pulley system, the free end of the rope may need to move several metres while the load rises only a short distance.
Scissors combine two levers with wedges on their blades. A bicycle combines wheels and axles, levers, gears, and screws. Seeing these parts inside familiar objects makes the physics easier to test and remember.
Key Facts
- Work = , or
- Mechanical advantage = , or
- For an ideal machine, , so
- A lever rotates around a fulcrum and balances when
- An inclined plane reduces needed force by increasing distance, with ideal
- A wheel and axle, pulley, screw, and wedge all change how force is applied to make tasks easier
Vocabulary
- Simple machine
- A basic device that changes the size or direction of a force to make work easier.
- Mechanical advantage
- The factor by which a machine multiplies the input force.
- Fulcrum
- The fixed pivot point around which a lever turns.
- Inclined plane
- A sloped surface that lets an object be raised with less force over a longer distance.
- Pulley
- A grooved wheel with a rope or cable that changes the direction or amount of force used to lift something.
Common Mistakes to Avoid
- Thinking a machine reduces the total work needed, which is wrong because ideal machines trade force for distance rather than creating energy. Friction can even make the actual work greater.
- Confusing force with work, which is wrong because force is a push or pull while work depends on both force and distance. A large force does no work if the object does not move.
- Assuming every wheel is just a wheel and axle simple machine, which is wrong because the machine matters only when the wheel and axle work together to multiply force or speed. A decorative wheel alone does not show the full machine idea.
- Ignoring the fulcrum position in lever problems, which is wrong because the turning effect depends on both force and distance from the pivot. A smaller force can balance a larger one if it acts farther from the fulcrum.
Practice Questions
- 1 A ramp is 4.0 m long and raises a box 1.0 m. What is the ideal mechanical advantage of the inclined plane?
- 2 A lever has a fulcrum between two forces. If a 20 N force is applied 3.0 m from the fulcrum, what force is needed on the other side 1.0 m from the fulcrum to balance it?
- 3 A pair of scissors combines levers and wedges. Explain how these two simple machines work together to make cutting easier.
