Torque explains how forces cause objects to rotate, and it is one of the main ideas behind levers, doors, wrenches, and seesaws. A force can be large but still produce little rotation if it acts close to the pivot. A smaller force can create a bigger turning effect if it acts farther from the pivot.
Understanding torque helps students connect linear motion ideas like force with rotational motion and balance.
In lever systems, the turning effect depends on both the force and the perpendicular distance from the pivot point, often called the moment arm. Rotational equilibrium happens when clockwise torque and counterclockwise torque are equal, so the object does not start spinning. If the torques are unequal, the object rotates in the direction of the larger net torque.
These ideas are used in tools, machines, the human body, and structural design.

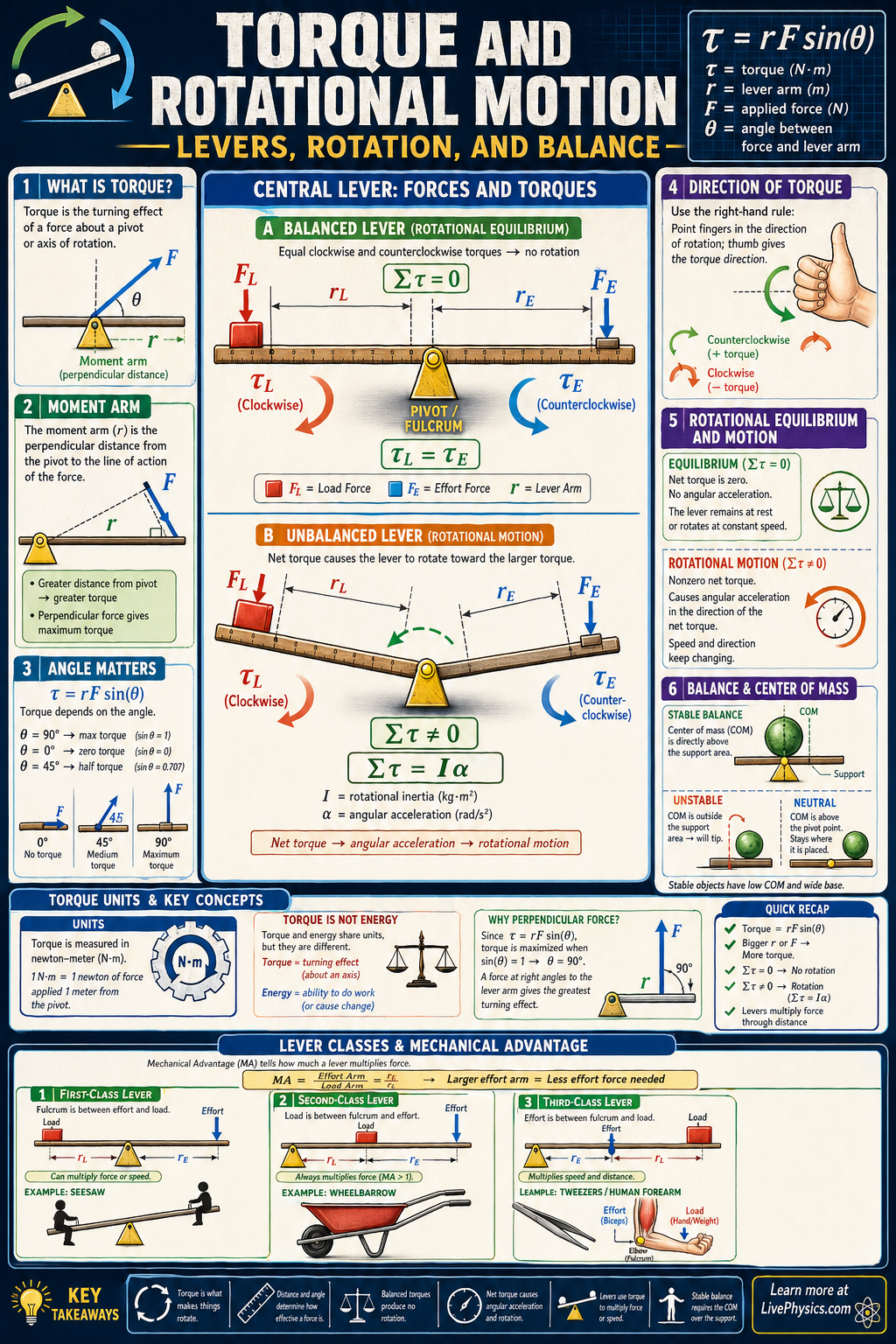

Understanding Torque & Rotational Motion
Rotation has its own version of mass, called moment of inertia. It describes how hard it is to change an object's spinning motion. Mass matters, but its location matters too.
Material near the axis is easier to spin than the same material placed far away. This is why a figure skater spins faster when pulling in their arms. The skater has not gained a new push.
Their body shape has changed, so its resistance to spinning has become smaller. A bicycle wheel with a heavy rim is harder to speed up than one with most of its mass near the hub.
The direction of a force is just as important as its size. Only the part of a force that acts across the lever arm creates turning. A push aimed directly toward the hinge of a door does very little, even when the push is strong.
Pushing sideways near the outer edge works much better. This idea helps explain why wrench handles are long and why pedal cranks place a rider's foot away from the axle.
Students often use the full distance to the pivot by mistake. The useful distance is the shortest perpendicular distance from the pivot to the force's line of action.
Forces can make an object move without making it rotate, or rotate without its center moving much. A person opening a heavy gate provides a force that produces rotation around the hinge. When a wheel rolls, friction at the ground provides the turning effect needed to change its spin.
Friction is not always a force that slows things down. In walking, rolling, and driving, static friction can provide the grip that makes motion possible.
The direction of the turning effect must be tracked carefully. A simple clockwise or counterclockwise sign choice makes multi-force problems much easier to organize.
Rotational motion also stores energy. A spinning object has rotational kinetic energy, which depends on both its moment of inertia and its angular speed. This is why a fast fan remains moving for a short time after being switched off.
It is also why flywheels can smooth out changes in engines and machines. Brakes work by using friction to create an opposing turning effect.
The friction changes organized rotational energy into thermal energy. A spinning wheel can therefore be dangerous even after the motor stops, especially if it has a large mass spread far from its axis.
When solving problems, start by drawing the object by itself. Mark the pivot, every force, and where each force acts. Decide which forces pass through the pivot, since those produce no turning about that point.
Then identify the perpendicular distance for each remaining force and assign a direction. For objects that are not accelerating, both the overall force and the overall turning effect must balance. These are separate checks.
A shelf bracket, ladder, crane, or human forearm can have zero turning effect while still needing force balance to avoid sliding or lifting. Careful diagrams prevent most errors before any calculation begins.
Key Facts
- Torque magnitude is .
- If the force is perpendicular to the lever arm, .
- Rotational equilibrium requires sum of tau = 0.
- A lever balances when for opposite torques.
- The SI unit of torque is newton meter or N·m.
- Angular acceleration is related to net torque by .
Vocabulary
- Torque
- Torque is the turning effect of a force acting about a pivot or axis.
- Fulcrum
- The fulcrum is the fixed pivot point around which a lever rotates.
- Lever arm
- The lever arm is the perpendicular distance from the pivot to the line of action of the force.
- Rotational equilibrium
- Rotational equilibrium is the state in which the net torque on an object is zero.
- Moment of inertia
- Moment of inertia measures how strongly an object resists changes in its rotational motion.
Common Mistakes to Avoid
- Using the total distance to the object instead of the perpendicular lever arm, which gives the wrong torque because torque depends on perpendicular distance to the force line.
- Adding all torques as positive, which is wrong because clockwise and counterclockwise torques must have opposite signs.
- Assuming a larger force always makes a larger torque, which is wrong because a smaller force farther from the pivot can produce more torque.
- Forgetting that equilibrium needs zero net torque, which is wrong because an object can have balanced forces in one sense but still rotate if torques do not cancel.
Practice Questions
- 1 A 15 N force is applied perpendicular to a wrench 0.30 m from the pivot. What torque does it produce?
- 2 A lever balances when a 20 N weight is placed 0.40 m to the left of the fulcrum. How far to the right must a 10 N weight be placed to balance it?
- 3 A door is easiest to open by pushing near the handle instead of near the hinges. Explain this using torque and lever arm.
