Robot stability depends on where the robot’s weight acts and how much ground contact supports it. Engineers use the center of mass to predict whether a robot will stay upright, wobble, or tip over. This matters for wheeled robots, delivery robots, competition robots, and humanoid robots that must move safely.

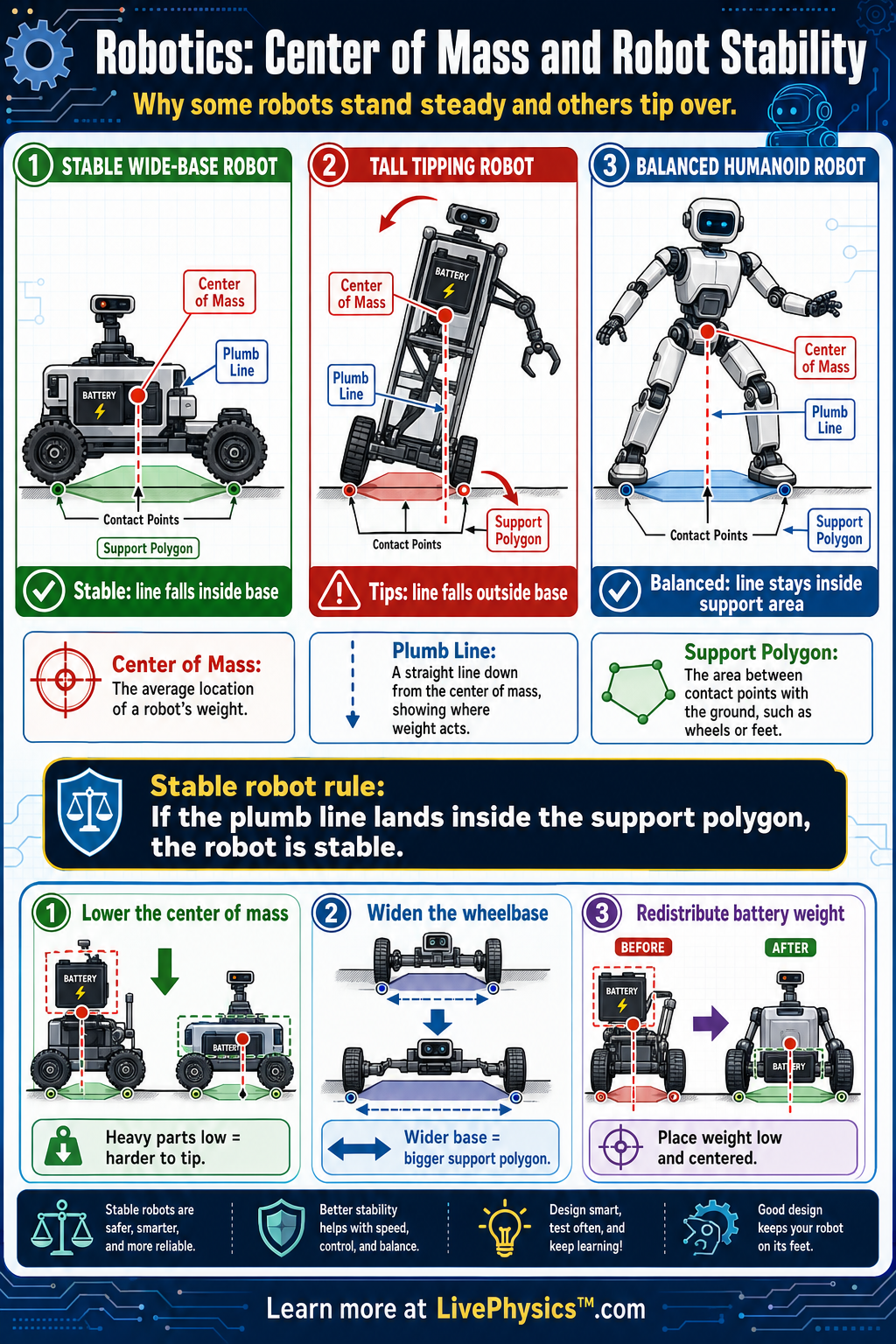

A simple rule is that a robot is stable when its center of mass plumb line falls inside its support polygon.
The center of mass is the average location of all the robot’s mass, including motors, batteries, frames, sensors, and carried objects. A plumb line is a vertical line straight down from the center of mass toward the ground. The support polygon is the shape made by connecting all contact points with the ground, such as wheels, feet, or tracks.
A robot becomes more stable by lowering heavy parts, widening its base, and shifting weight so the plumb line stays inside the support polygon.
Understanding Center of Mass and Robot Stability
Tipping is a rotation, not a sudden loss of all support. As a robot leans, more of its weight is carried by the wheels or feet on one side. The contacts on the opposite side carry less weight.
At the edge of balance, the lightly loaded side can lift from the ground. The outer wheel or foot then becomes a pivot point. Gravity pulls the robot downward, producing a turning effect called torque.
A high body produces more tipping torque for the same sideways lean because its mass is farther above the pivot. This is why a tall robot can fall even when it is fairly heavy.
A robot can tip while moving even on level ground. When it accelerates forward, its mass resists the change in motion. The load shifts toward the rear wheels.
Hard braking shifts load toward the front. During a turn, the needed sideways force comes from friction between the tires and floor. The robot body tends to continue in a straight path, so its load shifts toward the outside of the turn.
Fast turns are especially risky for robots with tall arms, raised cameras, or objects carried high above the chassis. Engineers often limit turning speed in software because a mechanically stable robot at rest may be unsafe in motion.
Ground conditions change the problem. A slope tilts the ground relative to gravity, reducing the safe range before a robot rotates around its downhill contact. A bump can briefly lift one wheel, shrinking the available ground contacts.
Loose carpet, gravel, ramps, and cable covers can make a robot bounce or slip. Slipping differs from tipping. A robot slips when friction is too small to provide the force needed for motion or turning.
It tips when its weight creates enough torque about an edge. Both failures can happen together, especially when a robot turns on a slope.
Walking robots face an extra challenge because their contact pattern changes every step. During a single foot phase, the usable ground area may be only the area under one foot. During a double foot phase, it includes both feet and the space between them.
Humanoid robots shift their body before lifting a foot so the remaining foot can carry them safely. Robots with arms must account for moving loads too.
Extending an arm with a heavy object moves the combined center of mass toward the object. A robot may need to slow its arm, bend its joints, or reposition its base before lifting.
When learning this topic, draw a side view for forward and backward tipping, then draw a top view for turning and sideways tipping. Mark each heavy component rather than treating the robot as one uniform block. A weighted average finds the center of mass by giving larger masses more influence than smaller masses.
Test ideas with a small wheeled model by moving a battery, adding a raised load, or changing wheel spacing. Increase speed gradually and observe which wheel unloads first. Real designs need a safety margin because sensors, uneven floors, payload changes, and sudden stops make the exact balance point hard to predict.
Key Facts
- A robot is stable when the vertical plumb line from its center of mass lands inside the support polygon.
- A robot tips when the center of mass plumb line moves outside the support polygon.
- Center of mass formula in one dimension: x_cm = (m1x1 + m2x2 + ...)/(m1 + m2 + ...).
- Lower center of mass usually increases stability because the robot can tilt farther before tipping.
- A wider wheelbase or wider stance makes a larger support polygon and improves stability.
- Heavy parts such as batteries should often be placed low and near the middle to reduce tipping risk.
Vocabulary
- Center of mass
- The point where an object’s mass can be treated as if it were concentrated for balance and motion.
- Plumb line
- A vertical line drawn straight down from the center of mass in the direction of gravity.
- Support polygon
- The area on the ground formed by connecting all points where the robot touches the ground.
- Wheelbase
- The distance between the front and back wheels or contact points of a robot.
- Tipping point
- The instant when the center of mass plumb line reaches the edge of the support polygon and the robot is about to fall.
Common Mistakes to Avoid
- Ignoring the support polygon, because stability depends on where the ground contact points are, not just the robot’s overall shape.
- Assuming a heavier robot is always more stable, because mass helps only if it is placed so the center of mass stays low and inside the base.
- Placing the battery high on the frame, because a high heavy part raises the center of mass and makes tipping easier.
- Checking stability only when the robot is standing still, because turning, accelerating, climbing ramps, or carrying objects can shift the effective balance and cause tipping.
Practice Questions
- 1 A robot has a 2 kg battery at x = 10 cm and a 1 kg sensor pack at x = 40 cm along its base. Find the center of mass position x_cm.
- 2 A robot’s support base extends from x = 0 cm to x = 30 cm. Its center of mass plumb line lands at x = 34 cm. Is the robot stable, and how far outside or inside the support base is the plumb line?
- 3 A tall robot keeps tipping forward when it stops quickly. Explain two design changes that could make it more stable and describe how each change affects the center of mass or support polygon.
