A simple robot circuit is the electrical plan that lets a robot receive power, make decisions, and move. In a basic robot, the battery provides energy, the switch turns the circuit on or off, the microcontroller controls the action, and the motor creates motion. A sensor branch lets the robot detect something in its environment, such as light, distance, or touch.
Learning to read this circuit helps students build robots safely and troubleshoot them more easily.

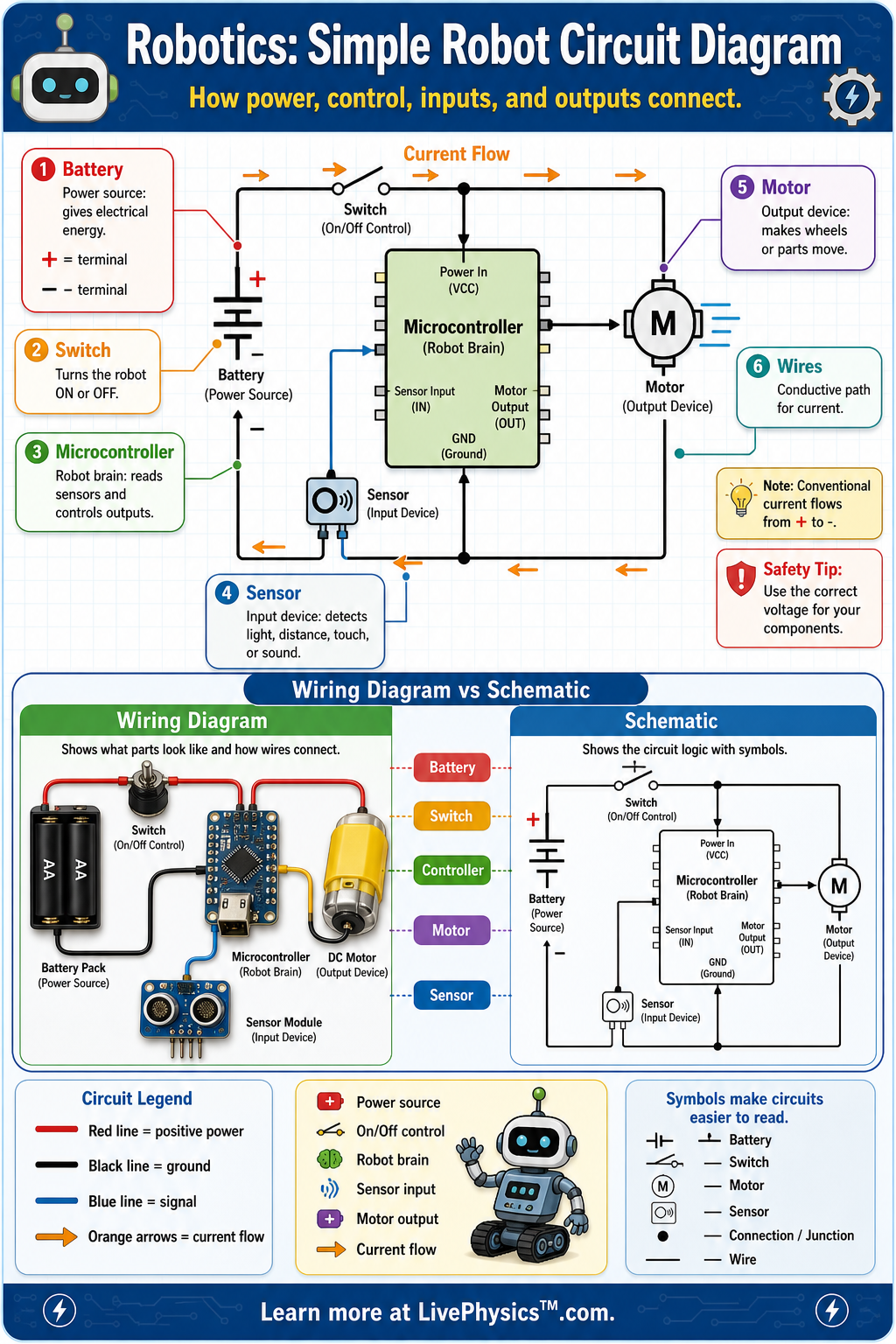

In the main path, current flows from the positive battery terminal through the switch to the microcontroller and then to the motor before returning to the negative terminal. The microcontroller acts like the robot's small computer because it reads sensor signals and sends control signals to the motor. A wiring diagram shows the real parts and wires, while a schematic uses simple symbols to show how the circuit works.
Schematics are useful because they make the electrical connections easier to understand before building the robot.
Understanding Simple Robot Circuit Diagram
A motor usually needs more current than a microcontroller pin can safely provide. Connecting a motor straight to a controller pin can damage the chip or cause it to reset. For this reason, many robot circuits place a motor driver between the controller and the motor.
The driver uses transistors as electrically controlled switches. A common driver circuit can reverse the motor connections, making the robot travel forward or backward. It can control speed by sending very fast on and off pulses.
This method is called pulse width modulation. Motors create electrical noise when they spin and when they stop. A protection diode or driver chip helps handle this effect, which can otherwise harm sensitive electronics.
Power needs careful planning because a battery does not behave like an unlimited source. As a motor starts, it may draw a large burst of current. The battery voltage can briefly drop during that burst.
If the controller receives too little voltage, it may restart even though the motor still moves. Batteries, motors, and controllers therefore need suitable current ratings. Many robots use a voltage regulator to give the controller a steady lower voltage while the motor uses a separate power path.
The parts still usually share a common ground connection. Without this shared reference, the controller may not correctly understand signals sent to the motor driver or sensor. Small capacitors near the controller can reduce brief voltage dips and electrical noise.
A schematic is best read by following connections, not by copying the physical positions of parts. Wires in a schematic may be drawn far apart even when they connect electrically. A dot where wires meet normally shows a connection.
Crossing lines without a dot may not connect. Students should check component labels, pin names, and polarity marks. Batteries, some capacitors, light emitting diodes, and many sensors must face the correct way.
A schematic can show a ground symbol in several places. These symbols usually represent one shared electrical point, even though no long ground wire is drawn between them. This makes a circuit easier to read but requires care when building it on a breadboard.
Testing a robot works best in small stages. First check the battery voltage with a meter. Next verify that the controller turns on and that its program runs.
Test the sensor values before attaching motor movement to the code. A distance sensor may give unreliable readings from soft fabric, shiny surfaces, or angled walls. A line sensor can change its reading under bright sunlight or on different floor colours.
The program needs a threshold value that separates one condition from another. Finally test the motor driver with the wheels raised off the table.
Watch for hot parts, loose wires, weak batteries, and a controller that resets when the motor starts. These clues help locate faults faster than changing many parts at once.
Key Facts
- A complete circuit needs a closed path from the battery's positive terminal back to its negative terminal.
- Conventional current flows from + to - through the outside circuit.
- Voltage is the electrical push from the battery, measured in volts, V.
- Current is the flow of electric charge, measured in amperes, A.
- Ohm's law connects voltage, current, and resistance: V = IR.
- Power used by a component can be found with P = VI.
Vocabulary
- Battery
- A battery is a source of electrical energy that provides voltage to push current through a circuit.
- Switch
- A switch is a device that opens or closes a circuit to stop or allow current flow.
- Microcontroller
- A microcontroller is a small computer chip that reads inputs, follows instructions, and controls outputs.
- Sensor
- A sensor is a component that detects information from the environment and sends a signal to the microcontroller.
- Motor
- A motor is a device that changes electrical energy into spinning motion.
Common Mistakes to Avoid
- Connecting the battery backward is wrong because many microcontrollers and sensors can be damaged by reverse polarity.
- Leaving the circuit path open is wrong because current cannot flow through the motor if the switch, wire, or connection breaks the loop.
- Connecting a motor directly to a microcontroller pin is wrong because many motors need more current than the pin can safely provide.
- Confusing a wiring diagram with a schematic is wrong because a wiring diagram shows physical placement, while a schematic shows electrical connections using symbols.
Practice Questions
- 1 A robot uses a 6 V battery and a motor with 3 ohms of resistance. Using V = IR, what current flows through the motor?
- 2 A motor uses 0.5 A of current from a 6 V battery. Using P = VI, how much power does the motor use?
- 3 A robot's light sensor is connected to the microcontroller, but the motor does not turn on when the room gets dark. Explain two circuit areas you would check and why.
