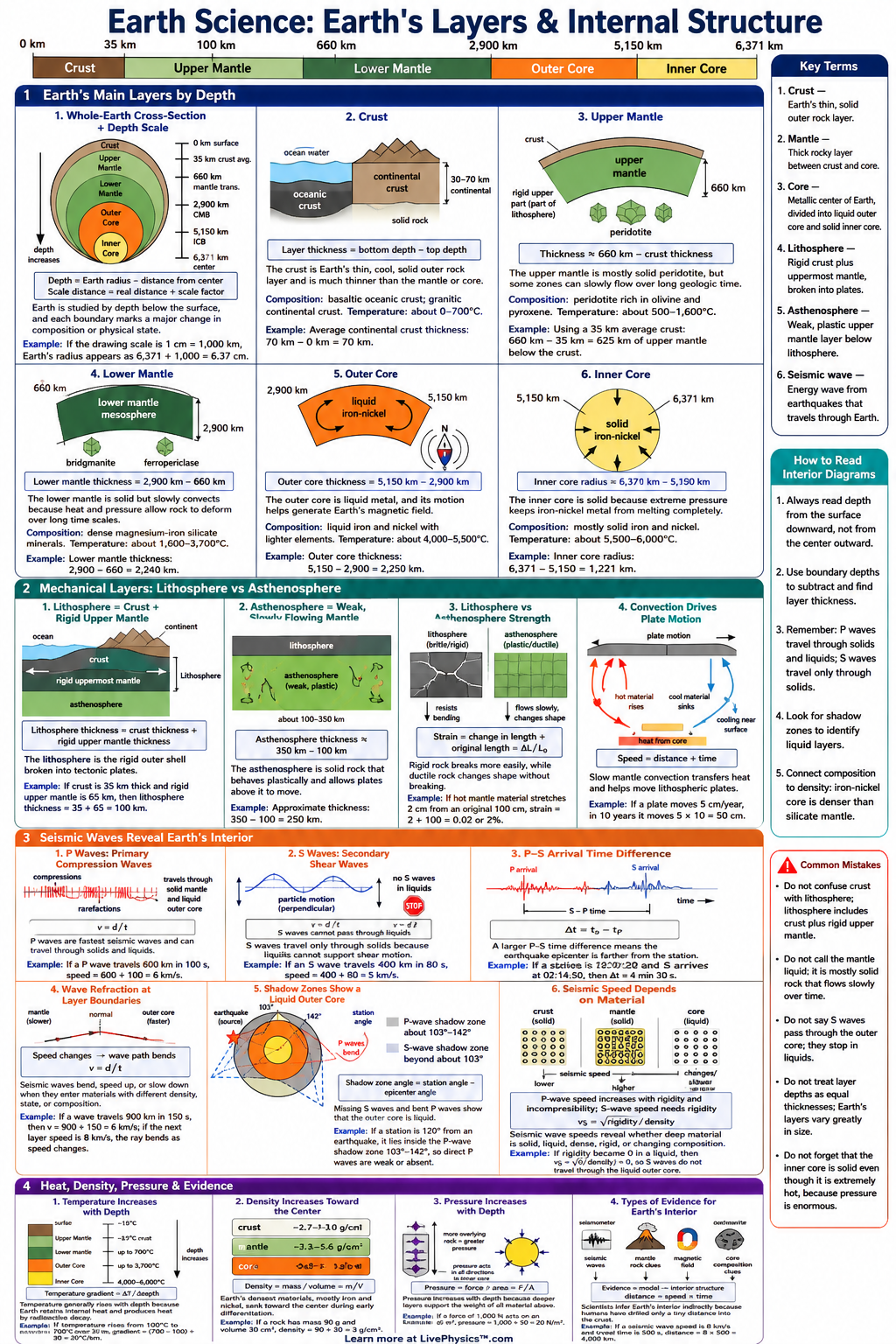

Earth's internal structure explains what our planet is made of beneath the surface and how scientists study places humans cannot directly visit. This cheat sheet helps students compare the crust, mantle, outer core, and inner core by composition, state, density, and temperature. It also connects Earth's layers to earthquakes, volcanoes, plate motion, and magnetic fields.
Key Facts
- Earth has four main compositional layers: crust, mantle, outer core, and inner core.
- Density is calculated with density = mass / volume, and Earth's layers generally become denser with depth.
- The lithosphere includes the crust and the rigid uppermost mantle, and it is broken into moving tectonic plates.
- The asthenosphere is a softer, slowly flowing part of the upper mantle beneath the lithosphere.
- The outer core is liquid iron and nickel, while the inner core is solid iron and nickel because pressure is extremely high.
- Temperature, pressure, and density all increase as depth below Earth's surface increases.
- Seismic wave speed can be described with speed = distance / time, and changes in wave paths help reveal Earth's layers.
- S-waves cannot travel through liquids, so the S-wave shadow zone provides evidence that the outer core is liquid.
Vocabulary
- Crust
- The thin, solid outer layer of Earth made of rock, including continental crust and oceanic crust.
- Mantle
- The thick layer of hot rock between the crust and core that can slowly flow over long periods of time.
- Core
- Earth's central region made mostly of iron and nickel, divided into a liquid outer core and solid inner core.
- Lithosphere
- The rigid outer shell of Earth that includes the crust and uppermost mantle and is divided into tectonic plates.
- Asthenosphere
- The softer, hotter layer of the upper mantle that allows tectonic plates to move above it.
- Seismic Waves
- Energy waves produced by earthquakes that travel through Earth and help scientists study its internal structure.
Common Mistakes to Avoid
- Calling the mantle a liquid: the mantle is mostly solid rock that flows very slowly because it is hot and under pressure.
- Mixing up lithosphere and asthenosphere: the lithosphere is rigid and broken into plates, while the asthenosphere is softer and flows slowly.
- Saying the inner core is liquid because it is hotter: the inner core is solid because the pressure is so great that iron and nickel cannot melt easily.
- Assuming density stays the same inside Earth: density increases with depth because deeper materials are compressed by the weight above them.
- Thinking scientists have drilled to the core: humans have only drilled a small distance into the crust, so most evidence comes from seismic waves, gravity, magnetism, and rock samples.
Practice Questions
- 1 A rock sample has a mass of 180 g and a volume of 60 cm3. What is its density using density = mass / volume?
- 2 A seismic wave travels 3,000 km in 500 seconds. What is its speed using speed = distance / time?
- 3 List Earth's main compositional layers in order from the surface to the center.
- 4 Explain why S-waves disappearing on the far side of Earth is evidence for a liquid outer core.
Understanding Earth's Layers & Internal Structure
Scientists build models of the deep Earth from indirect clues. The deepest drill holes reach only a tiny fraction of the distance to the center. Rock brought up by volcanoes gives samples from parts of the mantle, but not from the core.
Meteorites provide another clue because many formed from the same early solar system material as Earth. Most evidence comes from earthquakes.
A quake sends energy through the planet, and instruments around the world record when that energy arrives. Comparing thousands of records lets geologists work out where material changes.
It helps to sort two different ways of naming Earth regions. Compositional layers describe what material is present, such as rocky silicate material or metal rich material. Mechanical layers describe how that material behaves under stress.
A rock can be solid yet able to bend or flow over millions of years. This is why the mantle is not a global ocean of magma. Much of it is solid rock.
Heat and enormous pressure allow small mineral movements that add up over long times. The rigid surface plates move as units because they are cooler and stronger than the warmer material below.
Heat inside Earth has several sources. Some remains from the planet's formation, while some comes from radioactive atoms breaking down in rocks. Heat moves outward slowly.
In the mantle, warmer material tends to rise because it is less dense, while cooler material can sink. This circulation is called convection. It happens extremely slowly, often at rates similar to fingernail growth.
Convection, the sinking of dense oceanic plates, and forces at plate boundaries all help drive plate motion. These motions build mountain ranges, open ocean basins, and concentrate many earthquakes and volcanoes near plate edges.
Seismic waves reveal more than whether a region is solid or liquid. P waves squeeze and expand material in the direction they travel. They can pass through solids and liquids.
S waves move material sideways, so they require a solid that can resist shearing. When waves cross a boundary between materials, they may speed up, slow down, bend, or bounce back. This is similar to light changing direction in water, though the waves are different.
Patterns of missing or delayed waves create shadow zones. Those patterns allowed scientists to estimate the size and location of deep boundaries without seeing them directly.
When studying diagrams, pay close attention to scale. The crust is very thin compared with the radius of Earth, yet drawings often make it thick enough to see. Continental crust is generally thicker than oceanic crust, but oceanic crust is denser.
Do not confuse high temperature with liquid material. Pressure can keep very hot material solid, as it does in the deep interior. These ideas matter when scientists assess earthquake hazards, track volcanic systems, and explain the magnetic field that helps shield Earth from charged particles from the Sun.
