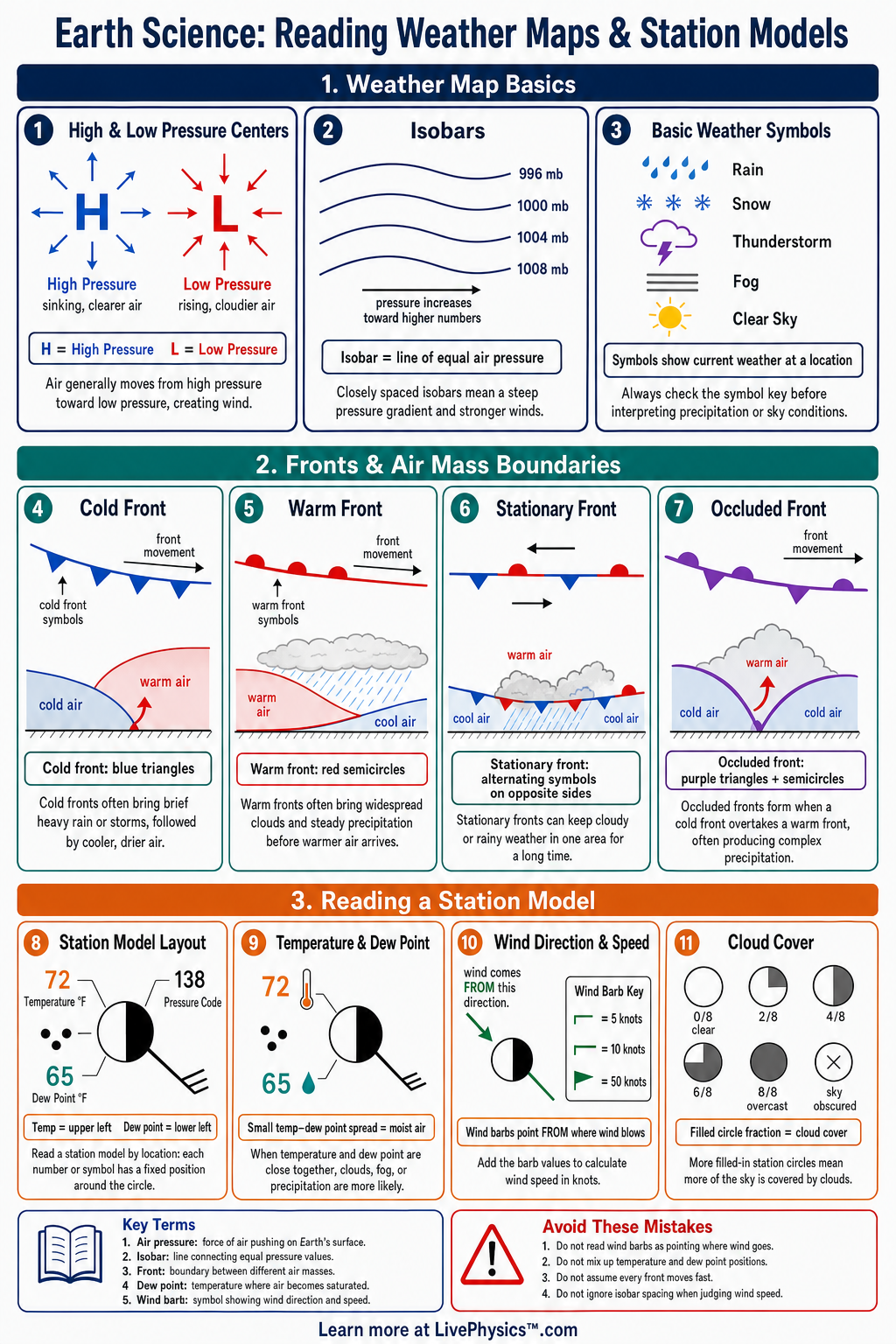

Weather maps show current and predicted conditions using symbols, lines, colors, and numbers. Station models compress a large amount of weather data into one small diagram for a single location. This cheat sheet helps students decode those symbols quickly and compare conditions across a region.
It is useful for reading forecasts, identifying fronts, and explaining changing weather patterns.
The most important ideas are pressure, wind, temperature, precipitation, and cloud cover. Isobars connect equal air pressure, and close isobars usually mean stronger winds. Front symbols show where different air masses meet, which often causes clouds, rain, snow, or storms.
Station models use a standard layout so meteorologists can read weather data consistently.
Key Facts
- Isobars are lines connecting places with equal air pressure, usually labeled in millibars such as 1008 mb or 1012 mb.
- Wind usually moves from high pressure toward low pressure, but Earth’s rotation causes winds to curve instead of moving in a straight line.
- Close isobars mean a steep pressure gradient, and a steep pressure gradient usually means stronger winds.
- On a station model, temperature is usually plotted at the upper left of the circle and dew point is usually plotted at the lower left.
- On a station model, sea-level pressure is coded with the last three digits, so 132 can mean 1013.2 mb and 872 can mean 987.2 mb.
- Wind barbs point from the direction the wind is coming from, and one full barb equals 10 knots while one half barb equals 5 knots.
- A cold front is shown with blue triangles pointing in the direction of movement, and it often brings cooler air, clouds, showers, or thunderstorms.
- A warm front is shown with red semicircles pointing in the direction of movement, and it often brings warmer air, steady precipitation, or layered clouds.
Vocabulary
- Station model
- A compact weather symbol that shows conditions such as temperature, pressure, wind, cloud cover, and present weather for one location.
- Isobar
- A line on a weather map connecting places with the same air pressure.
- Air pressure
- The force caused by the weight of air above a location, usually measured in millibars on weather maps.
- Front
- A boundary between two air masses with different temperature, humidity, or density.
- Dew point
- The temperature at which air becomes saturated and water vapor begins to condense.
- Wind barb
- A symbol that shows wind direction and wind speed on a station model.
Common Mistakes to Avoid
- Reading wind barbs as the direction the wind is blowing toward is wrong because the staff points from the direction the wind is coming from.
- Assuming all low pressure systems bring the same weather is wrong because actual conditions depend on moisture, temperature, fronts, and local geography.
- Forgetting to decode station pressure correctly is wrong because station models often use only three digits, so 146 must be converted to 1014.6 mb or 914.6 mb based on realistic pressure.
- Treating widely spaced isobars as strong winds is wrong because strong winds are usually shown by closely spaced isobars and a large pressure change over distance.
- Mixing up cold front and warm front symbols is wrong because triangles mark cold fronts and semicircles mark warm fronts, and each points in the direction the front is moving.
Practice Questions
- 1 A station model shows a temperature of 72°F and a dew point of 68°F. What does the small temperature-dew point difference suggest about the humidity?
- 2 A wind barb has two full barbs and one half barb. What is the wind speed in knots?
- 3 A station pressure code is 096. What are the two possible decoded pressures, and which one is more realistic for sea-level pressure?
- 4 A map shows very close isobars around a low pressure center and a cold front moving east. Explain what weather changes might occur as the front passes.
Understanding Reading Weather Maps & Station Models
A station model is a snapshot from one observing site, usually collected at the same time as nearby stations. Its value comes from comparison. A temperature number alone says little, but a sharp temperature change across several stations can reveal the edge of an air mass.
The gap between temperature and dew point is especially useful. When those values are close, the air is near saturation. Low clouds, fog, dew, or precipitation become more likely.
A larger gap usually points to drier air. The pressure code must be expanded by choosing the realistic value nearest one thousand millibars. This works because surface pressure normally stays within a limited range.
Wind arrows contain two separate clues. The shaft shows where the air came from, not where it is going. This is easy to reverse at first.
Students should imagine standing at the station while the wind blows toward them from the direction of the shaft. The small marks on the shaft show speed. Counting the marks gives the wind speed in knots.
Near the ground, wind does not follow pressure lines perfectly because friction slows it and changes its path. Higher above the surface, winds curve more smoothly around pressure systems because Earth rotates. In the Northern Hemisphere, this produces counterclockwise flow around low pressure and clockwise flow around high pressure.
Fronts are three-dimensional boundaries, not thin walls drawn on the ground. At a cold front, dense cold air pushes beneath warmer air and forces it upward quickly. Rapid lifting can build tall clouds and produce brief heavy rain, gusty winds, or thunderstorms.
At a warm front, warm air rises gradually over cooler air. This often creates broad layers of clouds and longer periods of lighter precipitation. The weather may begin changing well before the line reaches a town.
A stationary front can linger when neither air mass advances much. An occluded front forms when a cold front catches a warm front, lifting the warm air away from the ground.
A useful way to read a full map is to start with the largest pattern. Locate centers of high and low pressure, then trace the nearby fronts. Next, compare station temperatures, dew points, winds, and weather symbols on each side of a front.
Finally, check pressure tendency symbols when they are shown. Falling pressure often signals an approaching low pressure system or front, while rising pressure often follows one.
This method helps explain everyday changes such as a calm clear morning becoming windy before rain, or a stormy afternoon turning cooler after a front passes. Maps show evidence, not certainty, so students should look for several clues that support the same conclusion.
