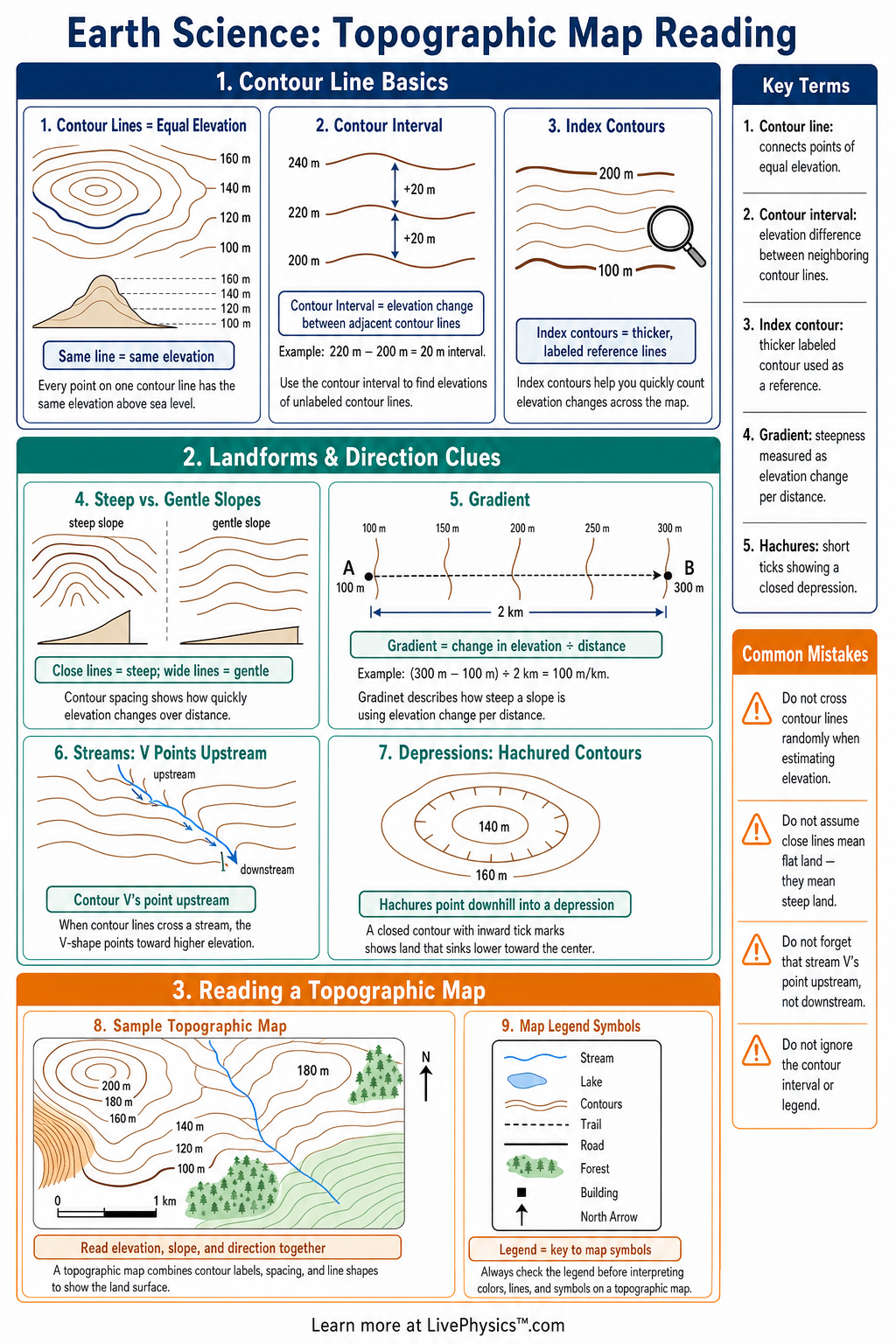

Topographic map reading helps students understand the shape and elevation of Earth’s surface from a flat map. This cheat sheet covers contour lines, map scale, slope, elevation, and common landform patterns. Students need these skills to interpret hiking maps, study watersheds, analyze landscapes, and connect maps to real terrain.
It is useful for Earth science labs, fieldwork, and map-reading practice.
Key Facts
- Contour lines connect points of equal elevation, so every point on one contour line has the same height above sea level.
- The contour interval is the elevation difference between neighboring contour lines, such as 20 meters per line.
- Index contours are darker or thicker contour lines that are labeled with elevation, often every fifth contour line.
- Close contour lines mean a steep slope, while widely spaced contour lines mean a gentle slope.
- Contour lines form a V shape that points upstream when they cross a stream or valley.
- A hill is shown by closed contour loops with elevations increasing toward the center.
- A depression is shown by closed contour loops with hachure marks pointing inward toward lower elevation.
- Gradient or slope can be calculated with gradient = change in elevation ÷ horizontal distance.
Vocabulary
- Topographic Map
- A map that shows the shape, elevation, and features of land using contour lines and symbols.
- Contour Line
- A line on a map that connects points with the same elevation.
- Contour Interval
- The constant difference in elevation between two adjacent contour lines.
- Index Contour
- A darker or thicker contour line labeled with its elevation to make the map easier to read.
- Gradient
- A measure of how steep a slope is, found by dividing elevation change by horizontal distance.
- Map Scale
- A ratio or bar that shows how distance on the map compares with real distance on the ground.
Common Mistakes to Avoid
- Counting every contour line as a new elevation without using the contour interval is wrong because elevation changes by the stated interval each time.
- Assuming close contour lines mean flat land is wrong because close spacing shows elevation changes quickly over a short distance.
- Reading a stream V shape as pointing downstream is wrong because contour V shapes point upstream toward higher elevation.
- Ignoring map scale is wrong because a short distance on the map may represent a much larger real-world distance.
- Treating hachured closed loops as hills is wrong because hachures mark depressions where elevation decreases toward the center.
Practice Questions
- 1 A map has a contour interval of 10 meters. If an index contour is labeled 200 meters, what are the elevations of the next three higher contour lines?
- 2 Two points are 4 kilometers apart, and the elevation changes from 300 meters to 500 meters. What is the gradient in meters per kilometer?
- 3 On a map, contour lines are very close together on the east side of a hill and far apart on the west side. Which side is steeper?
- 4 Explain how you can tell whether a set of closed contour lines represents a hill or a depression.
Understanding Topographic Map Reading
A topographic map uses a vertical reference level, usually mean sea level, so elevations on different parts of the map can be compared. This matters because a place can look high compared with nearby ground but still have a low elevation above sea level. Always check the map legend before measuring anything.
It tells you the units, the contour interval, the scale, and sometimes the date of the survey. Older maps may not show new roads, reservoirs, quarries, or housing developments. Natural landforms usually change slowly, but rivers can shift and human construction can change drainage.
One useful skill is making an elevation profile. Draw a straight line across the area you want to study, perhaps from a valley floor to a ridge. Mark every place where the line crosses a contour.
Transfer those marks to graph paper, then plot each elevation. Connecting the plotted points produces a side view of the land. A profile can show whether a route climbs steadily, crosses several ridges, or drops into a broad basin.
It also reveals that two slopes with the same total height can feel very different. One may rise gradually for a long distance, while the other rises sharply near the top.
Water movement gives many map patterns their meaning. Rainwater generally moves downhill by the steepest available route. On a map, the steepest direction is usually across contour lines rather than along them.
Valleys collect runoff from surrounding slopes, while ridges divide water into separate drainage areas. The boundary between two drainage areas is called a watershed. Students often trace a watershed by following the highest connected ground around a stream system.
Saddles are another important pattern. They are low passes between higher areas. A saddle can offer an easier route across a ridge, though it may still be exposed to wind or poor weather.
Map reading becomes more accurate when distance, direction, and height are considered together. A trail that looks short may take much longer if it crosses tightly packed contours. Use the scale bar to measure the real horizontal distance, not the distance measured with a ruler alone.
Then compare routes by finding the change in elevation divided by the horizontal distance. This gives the gradient. A large gradient means more elevation change over a short distance.
Watch for common mistakes. Do not assume north is at the top without checking the north arrow. Do not confuse a closed loop with a hill before checking whether hachure marks are present.
Do not treat contour lines as exact drawings of every bump in the ground. They simplify a complex surface, so small cliffs, ditches, and rocks may not appear.
