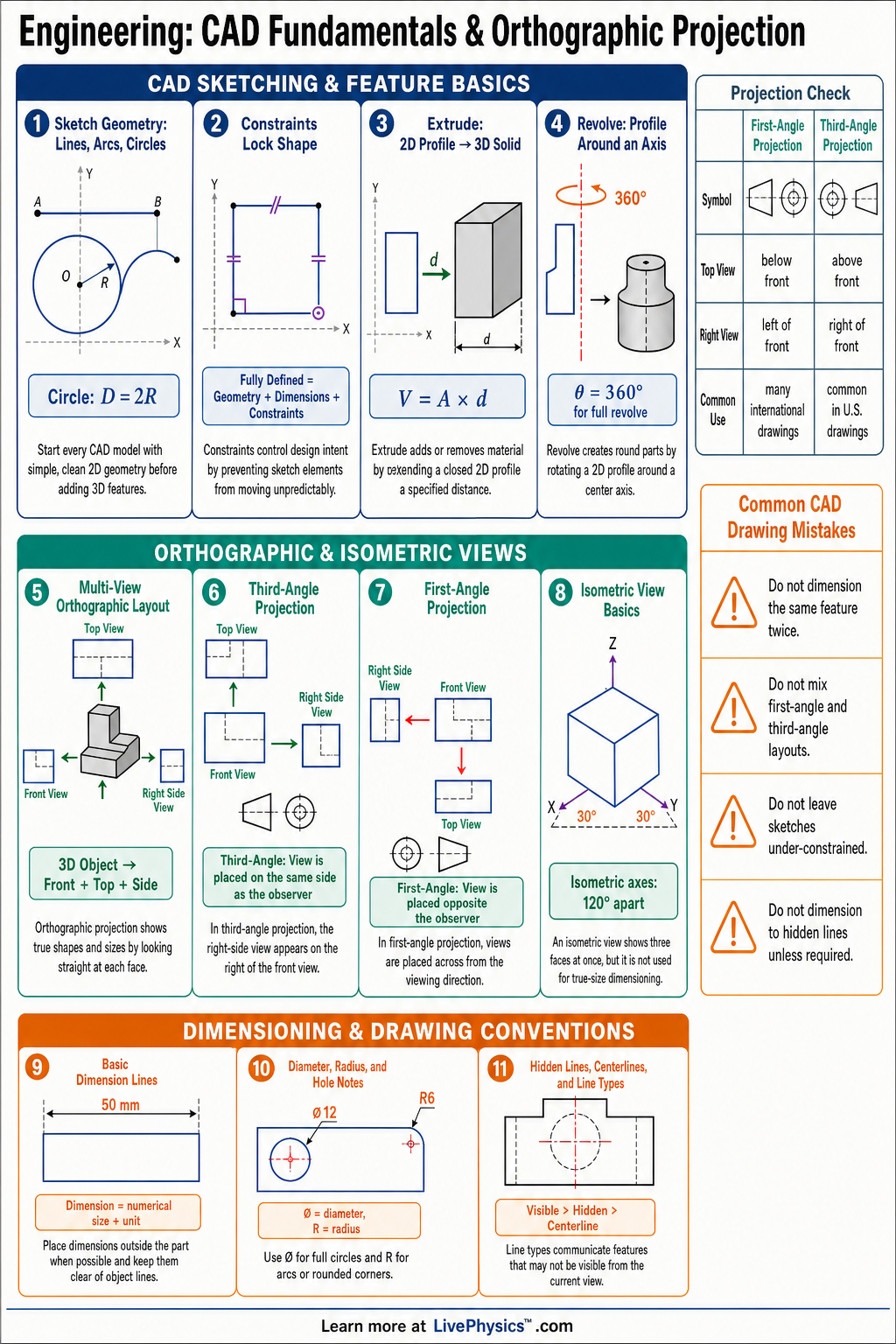

Engineering drawings communicate how an object should be made, measured, and checked. This cheat sheet covers the CAD fundamentals students need to create clear technical drawings and interpret orthographic views. It helps students organize models, use correct drawing conventions, and avoid common projection mistakes.
These skills are important for design, manufacturing, robotics, architecture, and engineering projects.
The core ideas include using accurate units, drawing with standard line types, applying dimensions clearly, and choosing the correct scale. Orthographic projection shows a 3D object using flat 2D views such as the front, top, and right side. Views must align so that width, height, and depth are transferred consistently.
Good CAD work depends on precision, constraints, layers, clean geometry, and readable annotations.
Key Facts
- In CAD, 1:1 scale means the digital model is drawn at its real size, and the drawing sheet scale controls how it prints.
- Orthographic projection represents a 3D object with separate 2D views, usually front, top, and right side.
- The front view should show the most detail and the most recognizable shape of the object.
- In third-angle projection, the top view is placed above the front view and the right-side view is placed to the right of the front view.
- Visible edges are drawn with thick continuous lines, while hidden edges are drawn with dashed lines.
- Centerlines use long-short-long dash patterns and mark axes of symmetry, holes, circles, and cylindrical features.
- A dimension should include the measured value, extension lines, dimension lines, and arrows or ticks, with units understood from the drawing standard.
- Scale factor = drawing length / actual length, so a 2:1 scale makes the drawing twice the actual size and a 1:2 scale makes it half size.
Vocabulary
- CAD
- CAD means computer-aided design, which uses software to create, edit, analyze, and document technical drawings or 3D models.
- Orthographic Projection
- Orthographic projection is a drawing method that shows a 3D object as multiple flat 2D views without perspective distortion.
- Dimension
- A dimension is a labeled measurement that describes the size or location of a feature on an engineering drawing.
- Scale
- Scale is the ratio between a drawing size and the actual object size, such as 1:1, 2:1, or 1:2.
- Constraint
- A constraint is a CAD rule that controls geometry, such as keeping lines horizontal, equal in length, parallel, or a fixed distance apart.
- Hidden Line
- A hidden line is a dashed line used to show an edge or feature that cannot be seen directly in that view.
Common Mistakes to Avoid
- Mixing up top and side views is wrong because orthographic views must stay aligned with the front view and preserve width, height, and depth correctly.
- Drawing the model at paper scale instead of real size is wrong because CAD models should usually be created full size, then scaled only on the drawing sheet.
- Over-dimensioning a part is wrong because repeated or unnecessary measurements can create confusion and make the drawing harder to inspect.
- Using the same line style for visible, hidden, and center features is wrong because line types communicate different kinds of geometry.
- Choosing a poor front view is wrong because it can hide important features and make the drawing require more views than necessary.
Practice Questions
- 1 A part is 80 mm long in real life. If it is printed at a 1:2 scale, how long should it appear on the drawing?
- 2 A CAD drawing shows a bracket at 2:1 scale. If a hole appears 24 mm in diameter on the print, what is the actual hole diameter?
- 3 An object has a front view width of 60 mm and height of 40 mm. Its top view shows a depth of 30 mm. What dimensions should the right-side view show?
- 4 Explain why an engineer might use hidden lines in one orthographic view but not in another view of the same object.
Understanding CAD Fundamentals & Orthographic Projection
CAD is more than drawing lines on a screen. A useful model stores relationships between features. A hole can be constrained to stay centered.
Two edges can be constrained to remain parallel. A circle can be fixed to a chosen diameter. These rules prevent a part from changing shape by accident when one measurement is edited.
Students should learn to fully constrain sketches before turning them into solid features. An underconstrained sketch may look correct but still slide, rotate, or stretch.
An overconstrained sketch contains conflicting rules and can fail to update. This is a common source of CAD errors.
Orthographic views work because each view shares measurements with the others. The front view and top view share width. The front view and side view share height.
The top view and side view share depth. A drafter mentally projects every corner and edge from one view to another. This makes missing or misplaced lines easier to spot.
Curved surfaces need special care because their true shape may appear only in one view. A circular hole seen straight on appears as a circle.
Seen from the side, it may appear as two hidden lines. Centerlines show where the feature is located and help readers understand that the lines belong to one cylindrical feature.
Dimensions are instructions, not decorations. Every needed size should be given once, in the view where the shape is easiest to understand. Repeating a dimension can create trouble if one value is changed but the other is not.
Dimensions should come from important reference surfaces called datums. For example, a mounting hole may be located from the bottom edge and one side edge because those are the surfaces used to position the part during manufacturing. Dimensioning from feature to feature can cause small errors to build up across a part.
This is called tolerance stack up. Even when a school drawing does not show tolerances, students should remember that real parts cannot be made to perfect exactness.
A careful workflow saves time. Start by choosing units and a sensible origin. Build the main shape first, then add cuts, holes, rounds, and chamfers.
Name features clearly so a later edit is understandable. Before printing, inspect the drawing at its final sheet scale. Text, arrows, dashed lines, and small gaps can become hard to read when reduced.
In robotics or workshop projects, a drawing is often used by someone who did not make the model. That person must be able to identify the material, sizes, hole locations, and hidden details without guessing. Clear CAD work shows respect for the person who must build, inspect, or assemble the object.
