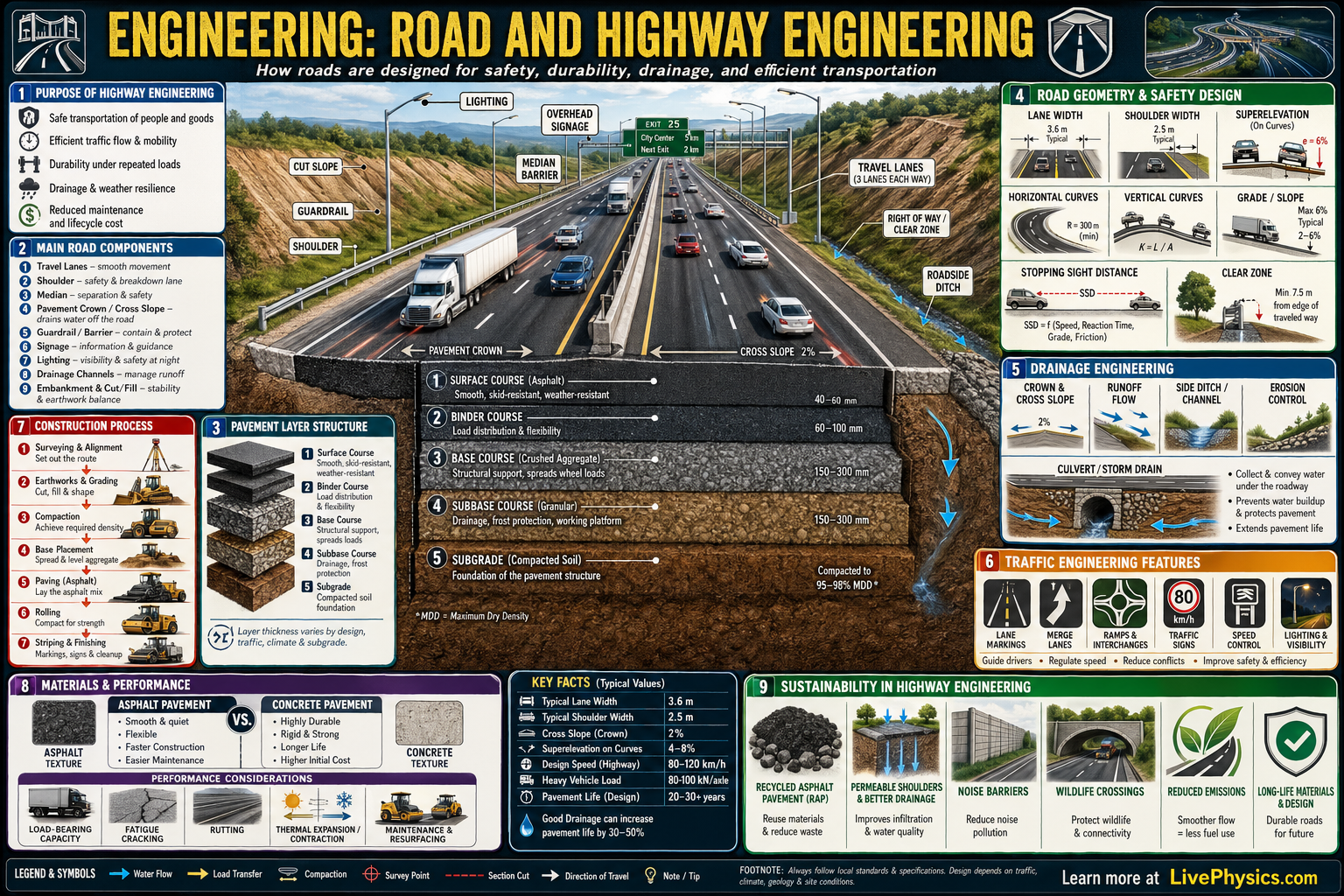

Click image to open full size
Road and Highway Engineering
Layers, Drainage, Curves, and Friction
Related Tools
Related Labs
Related Worksheets
Road and highway engineering is the branch of civil engineering that plans, designs, builds, and maintains roads for safe and efficient travel. Good highway design affects daily life by reducing crashes, lowering travel time, and supporting trade and emergency services. Engineers must balance speed, capacity, cost, durability, and environmental impact in every project. A well designed highway is not just pavement on the ground, but a carefully engineered system.
A highway works because many layers and systems act together beneath the visible surface. Engineers study traffic volume, soil strength, drainage, slope stability, and material behavior before choosing lane width, pavement thickness, and alignment. The pavement structure spreads wheel loads from vehicles into the ground, while drainage systems remove water that would weaken the road. Signs, markings, barriers, and curves are also engineered so drivers can see, react, and move safely at design speed.
Key Facts
- Traffic flow is related by q = k x v, where q is flow rate, k is density, and v is average speed.
- Stopping sight distance depends on reaction and braking distance: SSD = vt + v^2/(2a).
- Pavement layers usually include surface course, base course, subbase, and subgrade.
- Superelevation helps vehicles turn safely on curves by raising the outer edge of the roadway.
- Drainage is critical because water reduces soil strength, damages pavement, and increases skid risk.
- Flexible pavements spread loads through layered materials, while rigid pavements rely on slab action of concrete.
Vocabulary
- Subgrade
- The prepared natural soil layer that supports all the pavement layers above it.
- Superelevation
- The banking of a road on a curve to help vehicles resist sliding outward.
- Pavement
- The engineered road structure made of one or more layers that carries vehicle loads.
- Design speed
- The selected speed used by engineers to determine safe values for curves, sight distance, and other road features.
- Drainage
- The system that collects and removes water from the road surface and underlying layers.
Common Mistakes to Avoid
- Assuming the visible asphalt is the whole road, which is wrong because the base, subbase, and subgrade carry and distribute most of the load.
- Ignoring water in pavement problems, which is wrong because poor drainage often causes weakening, cracking, potholes, and erosion.
- Confusing speed limit with design speed, which is wrong because design speed is an engineering parameter used to size curves and sight distance.
- Thinking thicker pavement always solves every problem, which is wrong because weak soil, bad drainage, and overloaded traffic can still cause failure.
Practice Questions
- 1 A car travels at 20 m/s, the driver's reaction time is 1.5 s, and braking deceleration is 5 m/s^2. Using SSD = vt + v^2/(2a), find the stopping sight distance.
- 2 A highway lane has traffic density k = 30 vehicles/km and average speed v = 80 km/h. Using q = k x v, calculate the traffic flow rate in vehicles per hour.
- 3 Explain why a highway built with strong pavement layers but poor drainage may still fail early. Include what water does to both the surface and the soil below.
