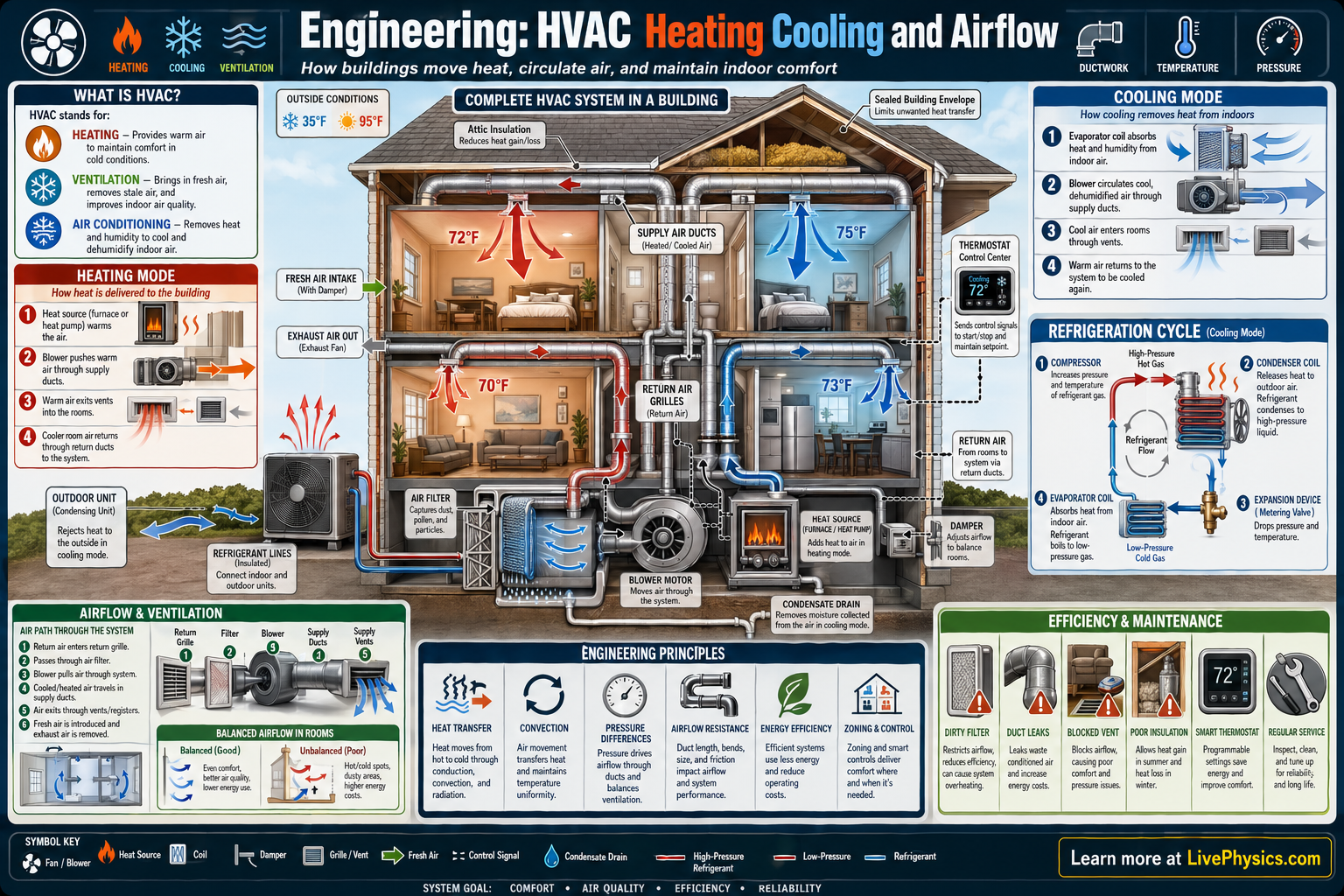

HVAC Engineering: Heating, Cooling, and Airflow
Compressors, Refrigerants, Ducts, and Thermostats
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
HVAC stands for heating, ventilation, and air conditioning, the systems that keep buildings comfortable, healthy, and energy efficient. Engineers design HVAC to control temperature, humidity, air movement, and indoor air quality at the same time. A well designed system helps people work and live safely while reducing wasted energy. HVAC engineering matters in homes, schools, hospitals, offices, and factories.
An HVAC system moves heat rather than simply creating or destroying it. In cooling mode, refrigerant absorbs heat indoors and releases it outdoors, while fans and ducts distribute conditioned air through the building. In heating mode, the system may use a furnace, boiler, heat pump, or electric resistance heater to add thermal energy to indoor air or water. Ventilation brings in outdoor air, removes stale air, and works with filters to reduce dust, moisture, and pollutants.
Key Facts
- Heat flows naturally from higher temperature to lower temperature, so HVAC systems must do work to move heat against that direction when cooling a building.
- Sensible heat equation for air: Q = mcpΔT, where Q is heat transfer, m is air mass, cp is specific heat, and ΔT is temperature change.
- Airflow rate is often written as Q = A v, where Q is volumetric flow rate, A is duct cross sectional area, and v is average air speed.
- Cooling performance is commonly measured by COP = Qcold / Win, where COP is coefficient of performance, Qcold is heat removed from indoors, and Win is work input.
- A thermostat controls system operation by comparing measured indoor temperature to a setpoint and switching heating or cooling equipment as needed.
- Filters, ducts, dampers, coils, compressors, blowers, and vents must work together for efficient heat transfer and balanced airflow.
Vocabulary
- Thermostat
- A thermostat is a control device that senses temperature and turns heating or cooling equipment on or off to maintain a setpoint.
- Refrigerant
- A refrigerant is a working fluid that absorbs heat while evaporating and releases heat while condensing in a cooling cycle.
- Duct
- A duct is a passage that carries supply air or return air between HVAC equipment and rooms.
- Heat pump
- A heat pump is a system that uses a refrigeration cycle to move heat either into or out of a building.
- Ventilation
- Ventilation is the process of bringing in outdoor air and removing indoor air to improve air quality and control moisture.
Common Mistakes to Avoid
- Assuming colder supply air always means better cooling, because extremely low supply temperatures can reduce efficiency, cause icing, and create comfort problems.
- Ignoring return airflow, because a system cannot deliver balanced supply air to rooms if air cannot flow back to the unit properly.
- Treating heating and ventilation as separate problems, because temperature, humidity, airflow, and indoor air quality affect each other in one connected system.
- Using duct size alone to predict airflow, because actual airflow also depends on fan performance, pressure losses, bends, filters, and dampers.
Practice Questions
- 1 Air moves through a duct with cross sectional area 0.20 m^2 at an average speed of 4.0 m/s. Calculate the volumetric flow rate Q using Q = A v.
- 2 An HVAC system cools indoor air with mass 50 kg. If cp = 1000 J/kg C and the air temperature drops by 8 C, calculate the heat removed using Q = mcpΔT.
- 3 A building has some rooms that are too warm and others that are too cool even though the thermostat is set correctly. Explain how duct layout, dampers, insulation, and return airflow could each contribute to this problem.
