An inclined plane is a simple machine that changes how forces act by spreading a vertical rise over a longer distance. It is one of the best physics examples for connecting gravity, normal force, friction, and acceleration in one picture. Students use inclined planes to learn how to break forces into components and predict motion.
This topic matters because the same ideas apply to ramps, roads, slides, conveyor systems, and engineering design.

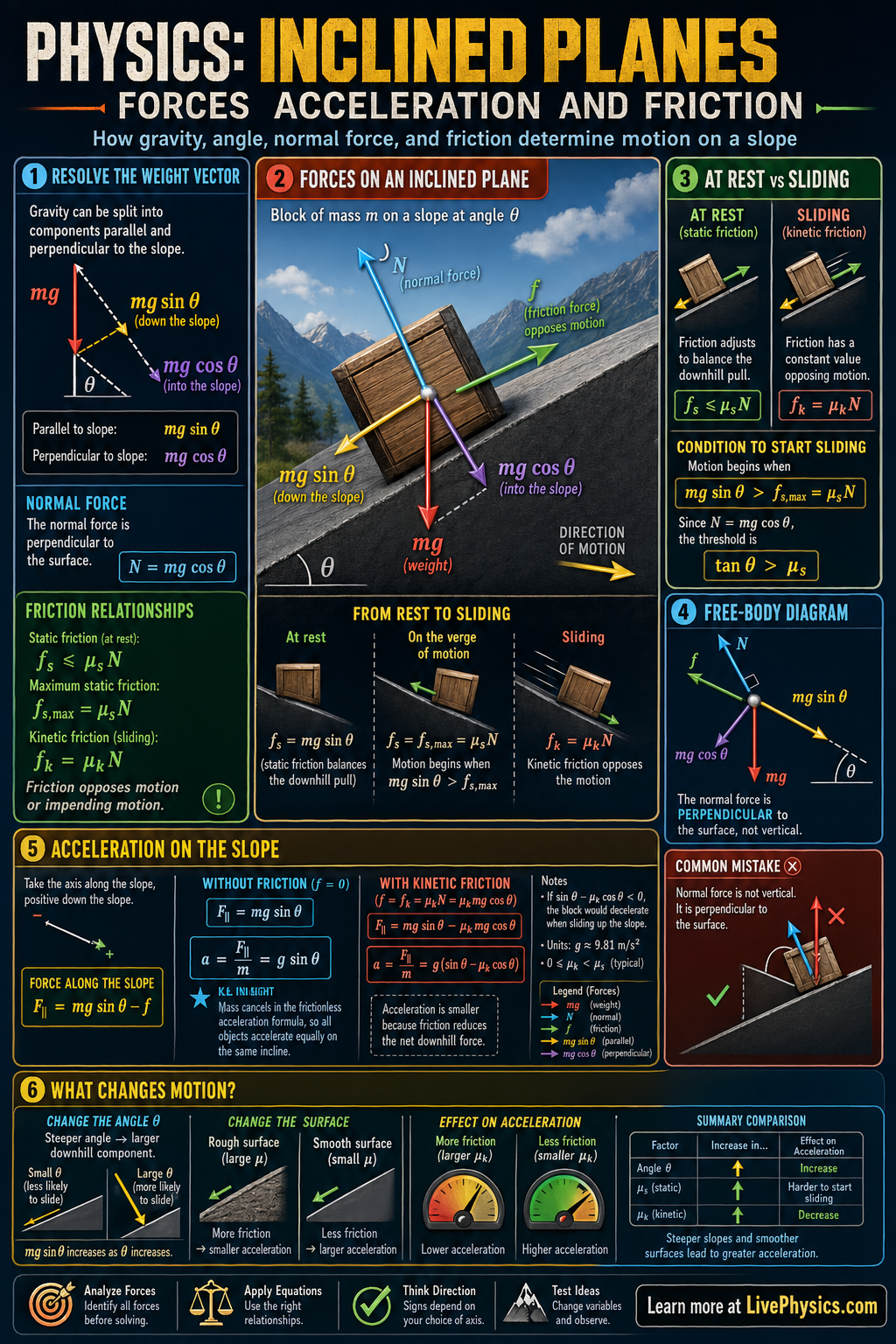

On an incline, the weight of an object still points straight downward, but part of that weight acts parallel to the slope and part acts perpendicular to it. The parallel part tends to pull the object down the ramp, while the perpendicular part is balanced by the normal force from the surface. If friction is present, it opposes the direction of motion or attempted motion and changes the net force.
Using Newton's second law along the slope lets you calculate whether the block stays at rest, speeds up, or moves at constant velocity.
Understanding Inclined Planes
The most useful first step is choosing axes that match the ramp. Make one axis run along the surface and the other point straight out from it. This choice turns a two dimensional force problem into two simpler one dimensional problems.
The object usually cannot move through the solid ramp, so the perpendicular direction has zero acceleration. That condition tells you what the contact force must do.
The normal force is not always equal to the full weight. It changes when the ramp angle changes or when someone pushes the object partly into or away from the surface.
Friction needs careful thought because there are two different cases. Static friction acts before sliding begins. It takes whatever value is needed to prevent motion, up to a maximum value.
A block can therefore remain still on a shallow ramp even though gravity pulls it downhill. As the angle increases, the downhill pull grows. Sliding starts only when that pull becomes greater than the largest available static friction.
Kinetic friction applies after the block is sliding. It is often smaller than maximum static friction, which explains why an object may need a strong initial push but then continue moving more easily.
A steeper ramp does more than make an object move faster. It shifts more of gravity into the direction along the surface and less into the surface. Less force into the surface means a smaller normal force.
For a surface with the same friction coefficient, that can reduce friction at the same time that the downhill pull increases. In the ideal case with no friction, objects of different mass have the same acceleration down a given ramp.
A heavier object has a larger downhill gravitational force, but it has proportionally more inertia. The mass cancels when Newton's second law is used.
Real ramp problems often include a rope, a person pulling a crate, or a vehicle moving uphill. Draw every force before calculating anything. Decide the intended positive direction along the slope.
Then give each force a sign based on whether it points with or against that direction. Friction always opposes actual motion or the motion that would happen without friction. This is a common source of mistakes.
A box being pulled uphill has friction downhill. A box sliding downhill has friction uphill.
Pay attention to units, the angle used by a calculator, and whether the question describes rest, constant speed, or acceleration. Constant speed means the net force along the ramp is zero, even though several forces may still act.
Key Facts
- Weight acts downward with magnitude .
- Component of gravity parallel to the incline: .
- Component of gravity perpendicular to the incline: .
- If there is no acceleration perpendicular to the surface, .
- Kinetic friction magnitude is , and it acts opposite the motion.
- Net force along the slope gives acceleration: .
Vocabulary
- Inclined plane
- A flat surface tilted at an angle to the horizontal that changes how gravity affects motion.
- Normal force
- The support force exerted by a surface on an object, acting perpendicular to the surface.
- Static friction
- The friction force that prevents slipping and adjusts up to a maximum value before motion starts.
- Kinetic friction
- The friction force that acts between surfaces that are sliding past each other.
- Net force
- The overall force on an object found by adding all the forces with their directions.
Common Mistakes to Avoid
- Using as the force pulling the block down the slope, which is wrong because only the component parallel to the incline, , causes motion along the ramp.
- Setting the normal force equal to on an incline, which is wrong because the surface only balances the perpendicular component, so when there is no other vertical effect.
- Making friction point uphill in every problem, which is wrong because friction always opposes actual motion or the tendency to move, so its direction depends on the situation.
- Mixing up sine and cosine for force components, which is wrong because for an incline angle measured from the horizontal, is parallel to the slope and is perpendicular.
Practice Questions
- 1 A 5.0 kg block rests on a frictionless incline at 30 degrees. Find the component of gravity parallel to the incline and the acceleration of the block. Use .
- 2 A 10 kg box slides down a 25 degree incline with kinetic friction coefficient . Find the normal force, the friction force, and the acceleration. Use .
- 3 A block is placed on a rough incline and does not move even though gravity has a component down the slope. Explain how static friction and the net force account for this.
