Simple machines are tools that help us do work more easily. Young learners see them every day on playgrounds, in classrooms, and at home. A ramp helps move things up, and a seesaw helps lift one side with less effort.
Learning these tools helps children notice how the world around them works.

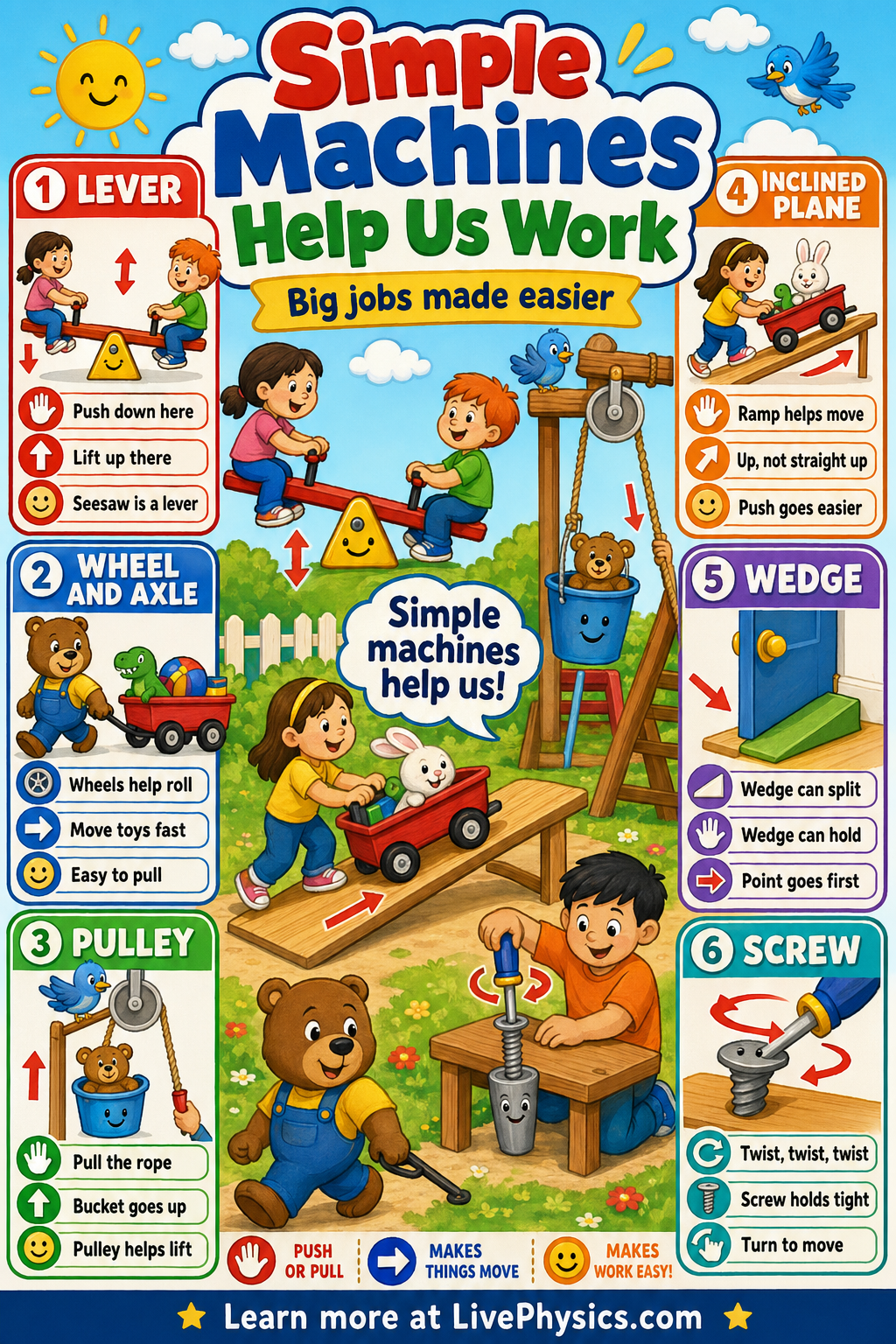

There are several kinds of simple machines, including levers, wheels and axles, pulleys, inclined planes, wedges, and screws. Each one changes how a push or pull works so a job feels easier. Children can connect these ideas to real objects like slides, doorknobs, scissors, and jar lids.
Seeing simple machines in daily life builds problem solving and observation skills.
Understanding Simple Machines
In physics, work happens when a force moves an object over a distance. Holding a heavy backpack still can make your muscles tired, but it does not count as work in the physics meaning because the backpack does not move. Simple machines do not create energy from nothing.
They trade one part of a job for another. A ramp needs less pushing force than lifting a box straight up, yet the box must travel farther along the ramp.
This trade is important. Less force usually means more distance, more time, or both.
The amount of help from a machine is called mechanical advantage. A long lever can give a person more turning effect with the same push. This is why a crowbar can lift something that is too heavy to lift by hand.
The fixed point of a lever is called the fulcrum. Its position matters greatly. Moving the fulcrum closer to the load makes the effort side longer and can reduce the force needed.
A wheel and axle works through a similar idea. Turning a large wheel moves a smaller axle with greater force, while a small wheel can make the axle turn farther or faster.
Pulleys show that machines can change the direction of a force. Pulling down on a rope is often easier than pulling up because body weight can help. A single fixed pulley mainly changes direction.
A system with several supporting rope sections can reduce the lifting force needed. The load then rises more slowly because more rope must be pulled. Screws are inclined planes wrapped around a cylinder.
Their spiral threads turn a twisting motion into forward motion. Closely spaced threads need less force for each turn, but require many turns to travel the same distance.
Real machines are not perfectly efficient because friction changes some useful energy into heat and sound. Rough ramps, rusty hinges, tight screws, and rubbing rope all need extra force. Lubricant can reduce friction in some moving parts, while tread on shoes or tyres increases friction when gripping is needed.
When studying simple machines, identify the load, the effort force, and the direction each moves. Notice the trade being made between force, distance, speed, and direction. Many tools combine several simple machines.
Scissors use levers and wedges. A bicycle uses wheels, axles, levers, gears, and chains. Looking for these parts makes complicated objects easier to understand.
Key Facts
- A simple machine helps make work easier by changing the size or direction of a force.
- A lever is a bar that moves around a fixed point, like a seesaw.
- A wheel and axle help things roll or turn, like a wagon or a doorknob.
- A pulley uses a wheel and rope to help lift things, like a flag on a pole.
- An inclined plane is a ramp that helps move objects up or down more easily.
- A wedge or screw helps split, cut, or hold things together, like a knife or a jar lid.
Vocabulary
- Simple machine
- A simple machine is a basic tool that helps us do work more easily.
- Lever
- A lever is a stiff bar that pivots to help lift or move something.
- Pulley
- A pulley is a wheel with a rope that helps lift things.
- Ramp
- A ramp is a slanted surface that helps move objects up or down.
- Wheel and axle
- A wheel and axle is a round wheel attached to a rod that helps things move or turn.
Common Mistakes to Avoid
- Thinking every tool is a simple machine, but many tools are made from two or more simple machines working together. A bicycle or scissors is more complex than one simple machine alone.
- Believing simple machines remove the need for force, but they only make the job easier in a different way. You still need to push, pull, or lift.
- Mixing up a ramp and a ladder, because both help you go up. A ramp is a sloped surface, while a ladder has separate steps.
- Calling only big machines useful, which misses many everyday examples. Small objects like jar lids, doorknobs, and toy wagons also show simple machines.
Practice Questions
- 1 Name two simple machines you might find on a playground and tell what each one helps you do.
- 2 A child uses a ramp to roll a toy box into a wagon instead of lifting it straight up. What simple machine is the ramp, and how does it help?
- 3 A flag is hard to lift by hand, but it is easier with a rope over a wheel. Which simple machine is being used, and why does it help?
