Dams and Hydroelectric Power
Water Pressure, Turbines, and Generators
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets

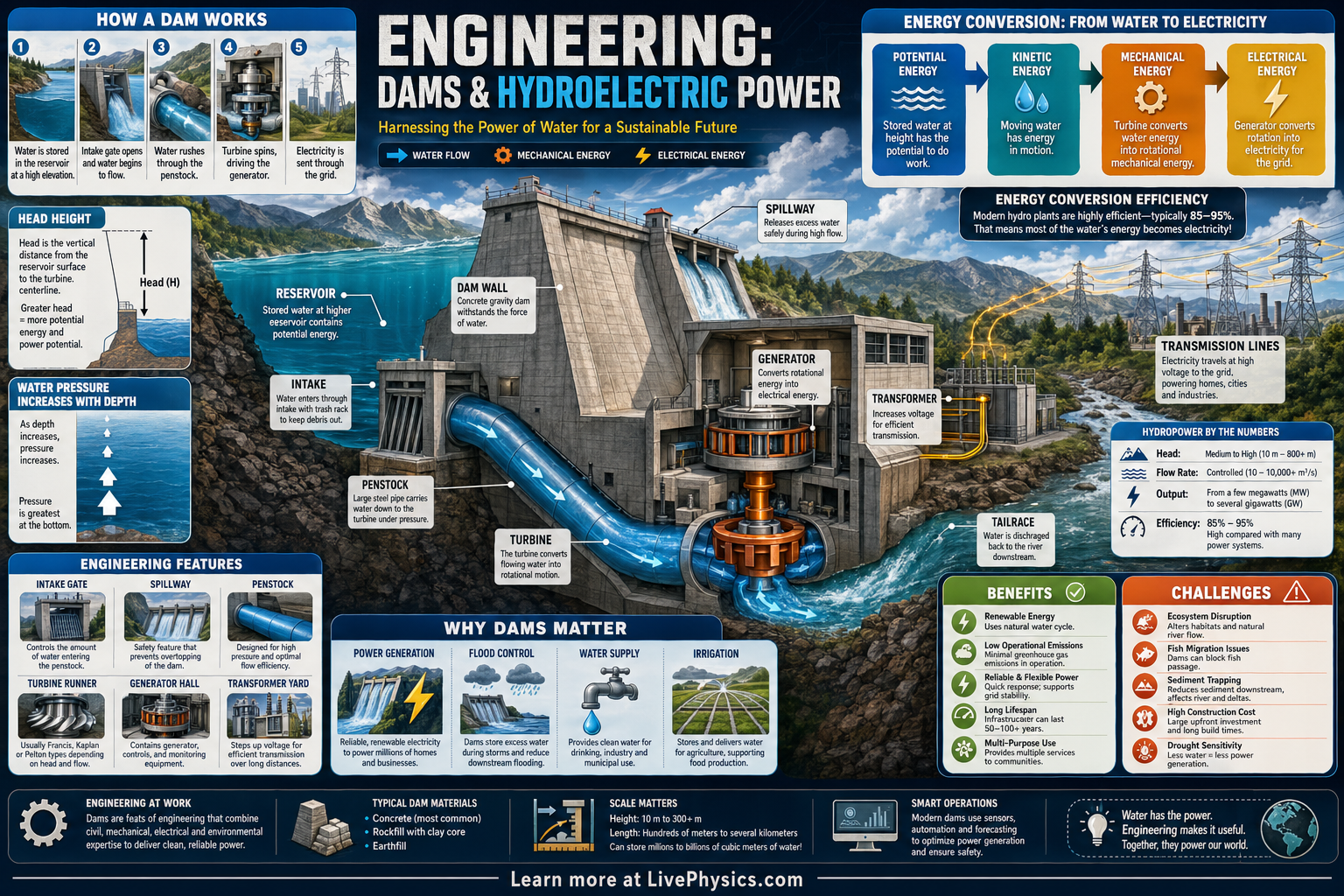

Dams and hydroelectric power systems convert the energy of stored water into useful electricity. They matter because they can produce large amounts of power without burning fuel during operation, and they also help with water storage, flood control, and irrigation. A dam creates a height difference that gives water gravitational potential energy. When that water is released in a controlled way, the energy can be transferred to turbines and generators.
Inside a hydroelectric plant, water flows from the reservoir through an intake and down a penstock toward a turbine. The moving water spins the turbine, which turns a generator and produces electrical energy by electromagnetic induction. A transformer then raises the voltage so electricity can travel efficiently through transmission lines. Spillways and control gates are also essential because they safely manage excess water and protect the dam structure.
Key Facts
- Gravitational potential energy of stored water is PE = mgh.
- Hydroelectric power depends on flow rate and height drop: P = rho g Q h eta.
- Typical symbols are rho for water density, g for gravitational field, Q for volume flow rate, h for head, and eta for efficiency.
- Water pressure increases with depth according to p = rho g h.
- A turbine converts fluid energy to rotational mechanical energy, and a generator converts mechanical energy to electrical energy.
- Transformers reduce transmission losses because for a given power, higher voltage means lower current, using P = IV.
Vocabulary
- Reservoir
- A reservoir is the large body of stored water held behind a dam.
- Head
- Head is the vertical height difference that gives water usable energy in a hydroelectric system.
- Penstock
- A penstock is a large pipe or tunnel that carries water from the reservoir to the turbine.
- Turbine
- A turbine is a rotating machine that is spun by moving water and delivers mechanical power.
- Spillway
- A spillway is a controlled channel that lets excess water flow safely past the dam.
Common Mistakes to Avoid
- Assuming the dam itself makes electricity, which is wrong because the electricity is produced by the generator after water spins the turbine.
- Ignoring the role of head, which is wrong because a large flow rate alone does not guarantee high power if the height drop is small.
- Thinking all reservoir water goes through the turbines, which is wrong because some water may be released through spillways or other outlets for safety and control.
- Forgetting efficiency in power calculations, which is wrong because real turbines and generators lose some energy to friction, turbulence, and electrical resistance.
Practice Questions
- 1 A hydroelectric station has a head of 40 m and water flow rate Q = 120 m^3/s. If rho = 1000 kg/m^3, g = 9.8 m/s^2, and eta = 0.90, calculate the electrical power output using P = rho g Q h eta.
- 2 Water enters a turbine from a reservoir surface 55 m above it. If 1.5 x 10^6 kg of water is released, calculate the change in gravitational potential energy using PE = mgh with g = 9.8 m/s^2.
- 3 Explain why transmission lines from a hydroelectric plant use transformers to raise voltage before sending electricity long distances.
