A power bank is a portable energy storage system that lets a phone charge when a wall outlet is not available. Inside the case are rechargeable battery cells, control electronics, voltage conversion circuits, and safety sensors. The main engineering challenge is to move energy efficiently while keeping voltage, current, and temperature within safe limits.
Understanding the parts helps explain why some power banks charge faster, run hotter, or store more usable energy than others.
Most power banks store energy in lithium ion or lithium polymer cells at about 3.7 V per cell, but phones usually receive power through USB at 5 V or higher for fast charging. A boost converter raises the battery voltage to the required USB output voltage, while a charging controller communicates with the phone and limits current. Protection circuits stop charging or discharging if voltage, current, or temperature becomes unsafe.
The phone has its own charging circuit too, so charging is a controlled transfer of energy between two smart devices.

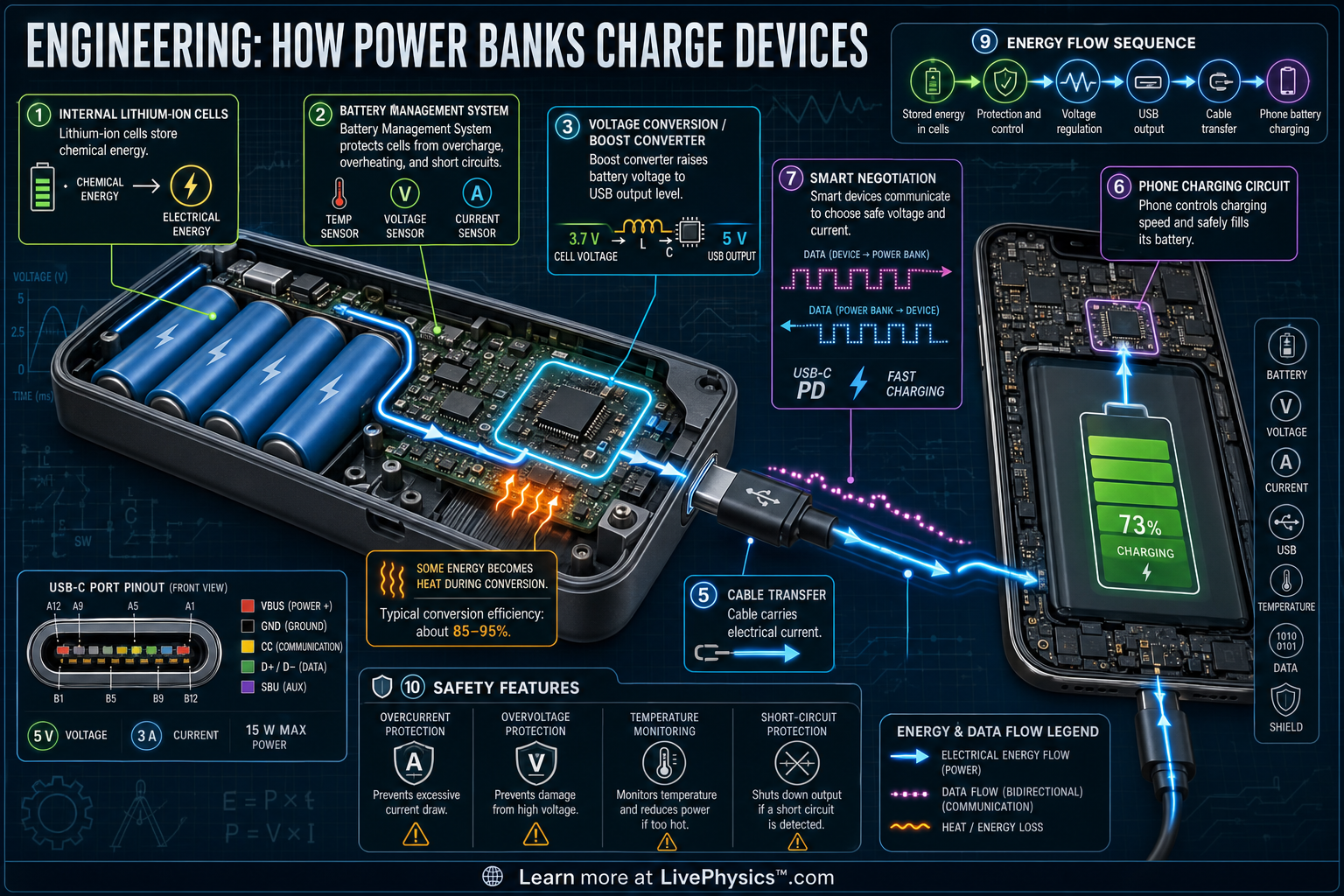

Understanding How Power Banks Charge Devices
Battery cells do not behave like perfectly steady tanks of electricity. Their voltage falls as they discharge, and it falls more when a device draws a large current. A power bank may use cells in parallel to increase capacity and share the current load.
Larger models may use groups of cells arranged to suit the electronics inside. The battery management system watches each group.
In designs with several series cells, it can balance them so that one cell does not become overcharged or overdrained before the others. Cell matching matters because a weak cell can limit the useful life of the whole pack.
Charging a phone happens in stages. At first, the phone may accept a fairly high current because its battery is low. This is called the constant current stage.
As the phone battery approaches full charge, its charging circuit reduces the current while holding the battery at a safe final voltage. This is the constant voltage stage. The last few percent can therefore take much longer than the first half of a charge.
A phone screen may show one hundred percent before the charging process fully finishes, since the software rounds the displayed value. This protects the battery from being pushed too hard near full charge.
The number printed in milliamp hours can be misleading when comparing power banks. It describes charge capacity at the cells' own voltage, not necessarily the energy delivered through a USB port. Energy is lost as heat in the converter, cables, switches, and battery cells.
Output energy may be lower still when a power bank runs hot or supplies a fast charge. A useful comparison uses watt hours, because watt hours include both voltage and capacity. It is normal for a ten thousand milliamp hour model to give a phone with a smaller printed battery rating fewer than two complete charges.
Fast charging depends on a conversation between the power bank and the device. With USB-C, small signal connections can identify cable capability and request a suitable power level. If either device does not support the same charging standard, they fall back to a safer basic mode.
The cable is important. A thin, damaged, or low quality cable has electrical resistance. Resistance causes a voltage drop and turns some energy into heat.
A cable can therefore make charging slower even when the power bank has a high watt rating. Shorter cables usually waste less energy than very long ones.
Heat is one of the clearest warning signs to notice. Mild warmth during use can be normal, especially during fast charging. Strong heat, swelling, a chemical smell, damaged ports, or a cracked case are reasons to stop using the power bank.
Lithium cells age faster when kept very hot, fully charged for long periods, or deeply discharged repeatedly. Students can test ideas safely by comparing charging time with different approved cables, checking output labels, and observing how a phone changes its charging speed near full battery. The important lesson is that charging is controlled energy transfer, not simply electricity flowing until a battery is full.
Key Facts
- Electrical power is P = IV, where P is power in watts, I is current in amperes, and V is voltage in volts.
- Energy stored in a battery can be estimated by E = VQ, where Q is charge capacity in ampere hours.
- A 10000 mAh power bank rated at 3.7 V stores about 37 Wh of energy because 3.7 V × 10 Ah = 37 Wh.
- A boost converter raises voltage, such as from 3.7 V battery output to 5 V USB output, while reducing available current.
- Efficiency is η = useful output energy / input energy, so real power banks deliver less energy than the cells store.
- USB fast charging uses higher voltage or current, such as 9 V at 2 A for 18 W, when both devices agree to the charging mode.
Vocabulary
- Lithium ion cell
- A rechargeable battery cell that stores chemical energy and releases it as electrical energy.
- Boost converter
- An electronic circuit that increases a lower DC voltage to a higher DC voltage.
- Charging controller
- A chip or circuit that manages voltage, current, and communication during charging.
- Capacity
- The amount of electric charge a battery can store, often measured in milliampere hours.
- Efficiency
- The fraction of input energy that becomes useful output energy instead of being lost as heat.
Common Mistakes to Avoid
- Treating mAh as total energy is wrong because mAh does not include voltage. Compare power banks using watt hours when the voltages are different.
- Assuming a 10000 mAh power bank can fully charge a 5000 mAh phone twice is wrong because voltage conversion and heat losses reduce usable output.
- Using any cable for fast charging is wrong because thin or low quality cables can limit current and cause extra voltage drop.
- Ignoring heat during charging is wrong because high temperature reduces battery life and can trigger safety circuits that slow or stop charging.
Practice Questions
- 1 A power bank cell pack is rated 3.7 V and 10000 mAh. Estimate its stored energy in watt hours.
- 2 A phone charges at 9 V and 2 A. What charging power in watts is delivered to the phone?
- 3 A power bank and phone both support fast charging, but the phone charges slowly with a certain cable. Explain two engineering reasons the cable or control circuit could limit charging speed.
