Heat Transfer
Conduction Convection and Radiation
Related Tools
Related Labs
Related Worksheets

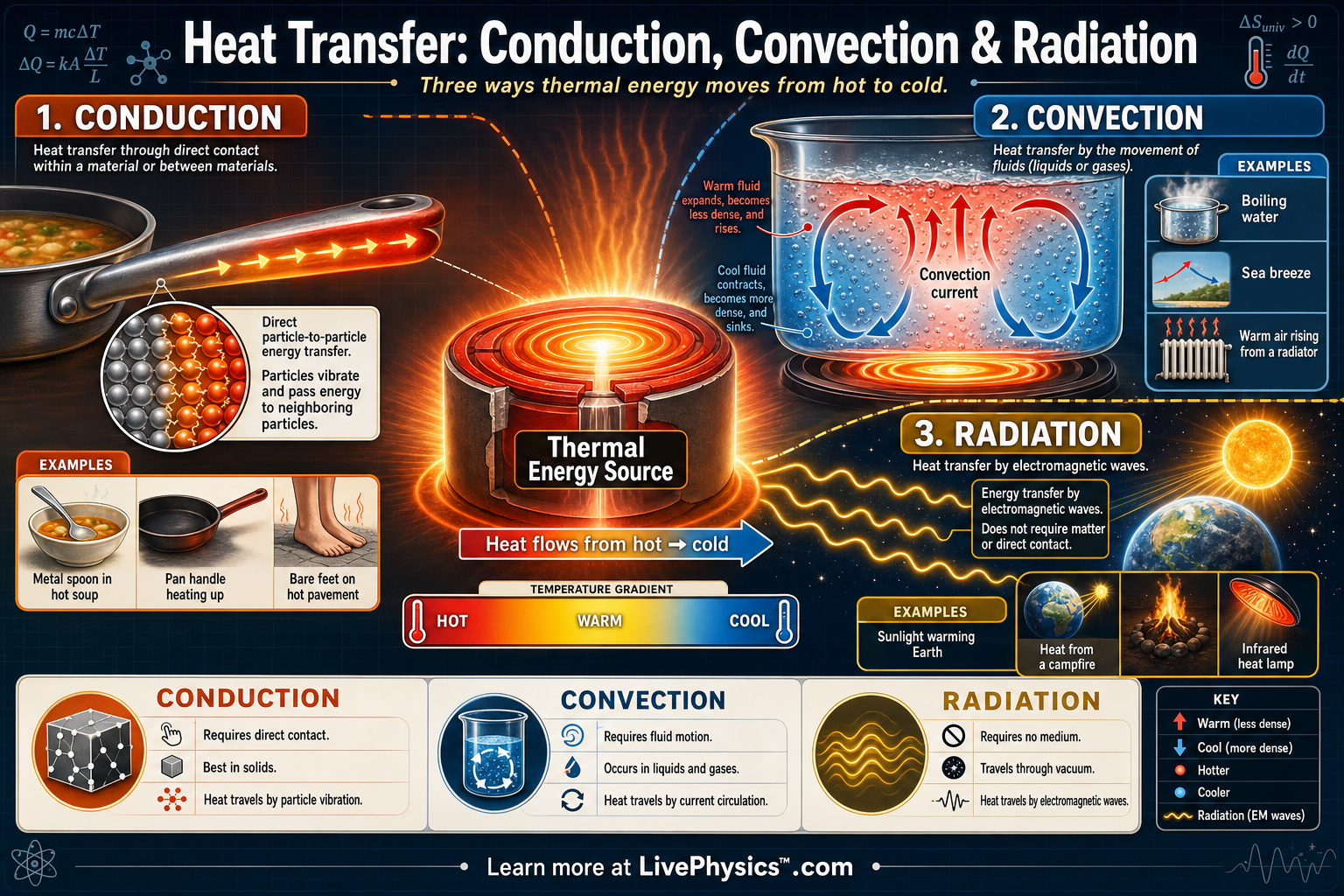

Heat transfer is the movement of thermal energy from a warmer object or region to a cooler one. It explains everyday events like a metal spoon getting hot in soup, warm air rising above a heater, and sunlight warming your skin. Understanding conduction, convection, and radiation helps students predict how energy moves in solids, liquids, gases, and empty space. These ideas are important in engineering, weather, cooking, home insulation, and climate science.
Conduction happens when particles or free electrons pass energy through direct contact, especially in solids. Convection happens when a fluid carries heat as warmer, less dense material rises and cooler, denser material sinks. Radiation happens when energy travels as electromagnetic waves, so it does not require matter. In real systems, all three modes often occur at the same time, but one mode may dominate depending on the material, temperature difference, and geometry.
Key Facts
- Heat flows naturally from higher temperature to lower temperature.
- Conduction rate through a flat wall: P = kA(Delta T)/L.
- Convection heat transfer: P = hA(T_surface - T_fluid).
- Thermal radiation power: P = epsilon sigma A(T^4 - T_env^4).
- Good conductors such as metals have high thermal conductivity k, while insulators such as foam have low k.
- Convection requires a fluid, but radiation can travel through a vacuum.
Vocabulary
- Thermal energy
- Thermal energy is the internal energy associated with the random motion of particles in a substance.
- Conduction
- Conduction is heat transfer through direct contact between particles or through mobile electrons in a material.
- Convection
- Convection is heat transfer by the bulk motion of a liquid or gas.
- Radiation
- Radiation is heat transfer by electromagnetic waves emitted by objects because of their temperature.
- Thermal conductivity
- Thermal conductivity is a material property that measures how easily heat flows through a substance by conduction.
Common Mistakes to Avoid
- Confusing heat with temperature is wrong because heat is energy in transit, while temperature measures average particle kinetic energy.
- Saying cold flows into hot objects is wrong because heat transfer is described as thermal energy moving from warmer regions to cooler regions.
- Assuming conduction only happens in metals is wrong because all materials conduct heat to some degree, although metals usually conduct much better than plastics or air.
- Forgetting that radiation needs no air is wrong because thermal radiation travels as electromagnetic waves and can move through the vacuum of space.
Practice Questions
- 1 A 0.020 m thick window has area 1.5 m^2 and thermal conductivity 0.80 W/(m K). If the inside is 22 C and the outside is 2 C, what is the conductive heat transfer rate through the window?
- 2 A hot plate loses heat to air by convection with h = 12 W/(m^2 K), area 0.50 m^2, surface temperature 90 C, and air temperature 25 C. What is the convection heat transfer rate?
- 3 A metal pot, boiling water, and a glowing stove burner are all involved in heating soup. Identify where conduction, convection, and radiation occur, and explain which mode is most important for moving heat through the water.
