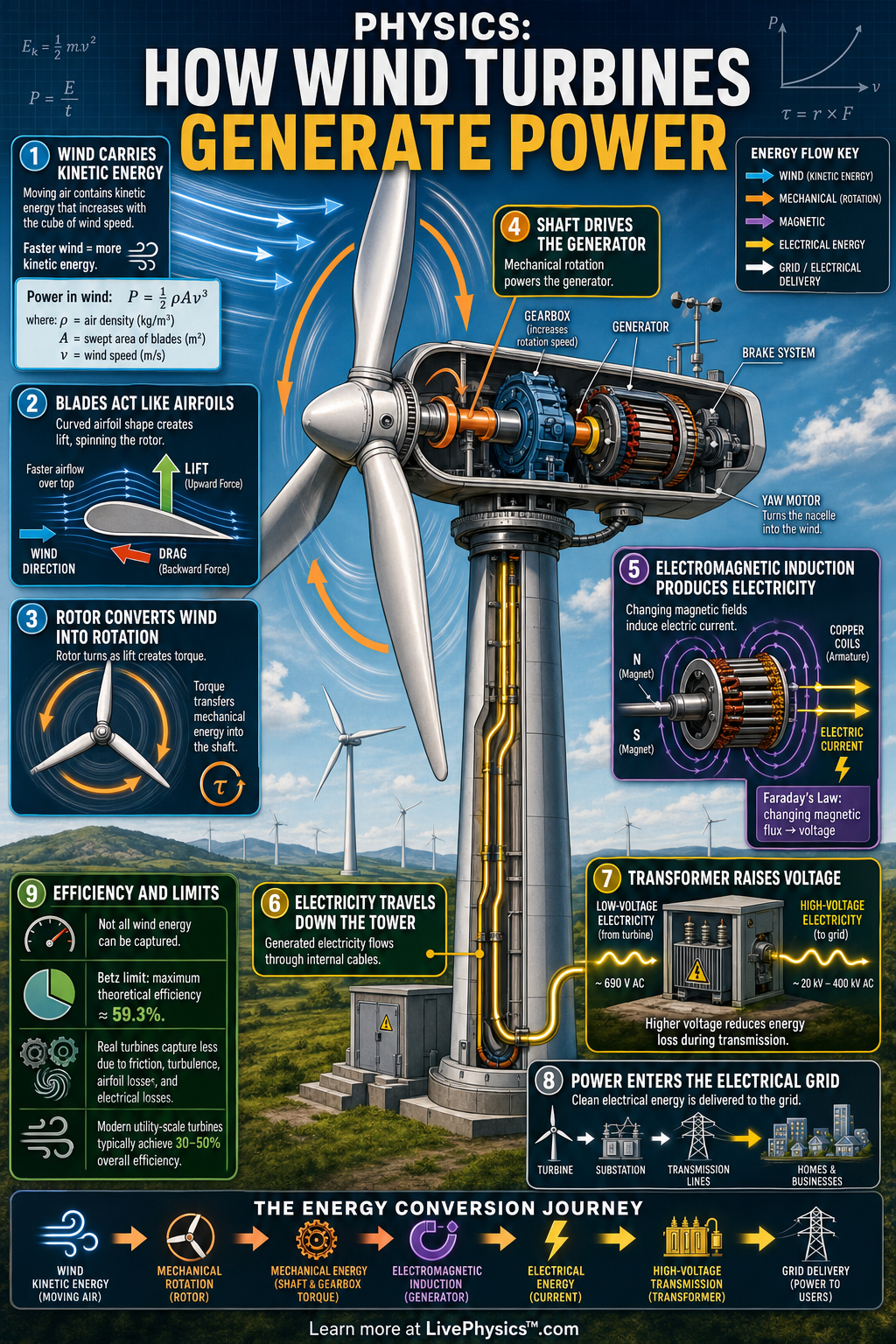

How Wind Turbines Generate Power
Wind Turbines Generate Power
Related Tools
Related Labs
Related Worksheets
Wind turbines generate electric power by taking kinetic energy from moving air and converting it into rotational motion. This matters because wind is a renewable energy source that produces electricity without burning fuel during operation. The amount of power available in wind depends strongly on wind speed, so small increases in wind speed can greatly increase possible energy output. A turbine is designed to capture some of that energy while letting enough air continue moving past the blades.
Key Facts
- Wind power available: Pwind = 1/2 ρ A v^3
- Swept area of the rotor: A = πr^2
- Mechanical power captured: Pcaptured = Cp(1/2 ρ A v^3)
- Tip speed ratio: λ = blade tip speed / wind speed = ωr / v
- Electrical power output: Pelectric = η Pcaptured
- No wind turbine can capture all wind energy because the Betz limit gives Cp,max = 0.593
Vocabulary
- Kinetic energy
- Kinetic energy is the energy an object or fluid has because it is moving.
- Swept area
- Swept area is the circular area covered by the rotating turbine blades.
- Generator
- A generator is a device that converts mechanical rotation into electrical energy using electromagnetic induction.
- Power coefficient
- The power coefficient is the fraction of available wind power that the turbine rotor captures.
- Betz limit
- The Betz limit is the theoretical maximum fraction of wind power a turbine can extract, equal to about 59.3 percent.
Common Mistakes to Avoid
- Using blade length as the swept area is wrong because the rotor captures wind across a circle, so A = πr^2 must be used.
- Forgetting that wind power depends on v^3 is wrong because doubling wind speed increases available power by a factor of eight, not two.
- Assuming the turbine converts 100 percent of wind power into electricity is wrong because real turbines lose energy in aerodynamics, friction, gearing, and electrical conversion.
- Confusing energy and power is wrong because energy is the total amount transferred while power is the rate of energy transfer, measured in watts.
Practice Questions
- 1 A wind turbine has blade radius 20 m. What is its swept area? Use A = πr^2 and π = 3.14.
- 2 Air density is 1.2 kg/m^3, wind speed is 10 m/s, and swept area is 500 m^2. What wind power is available using Pwind = 1/2 ρ A v^3?
- 3 Explain why a wind turbine placed at a site with slightly higher average wind speed can produce much more electricity over a year.
