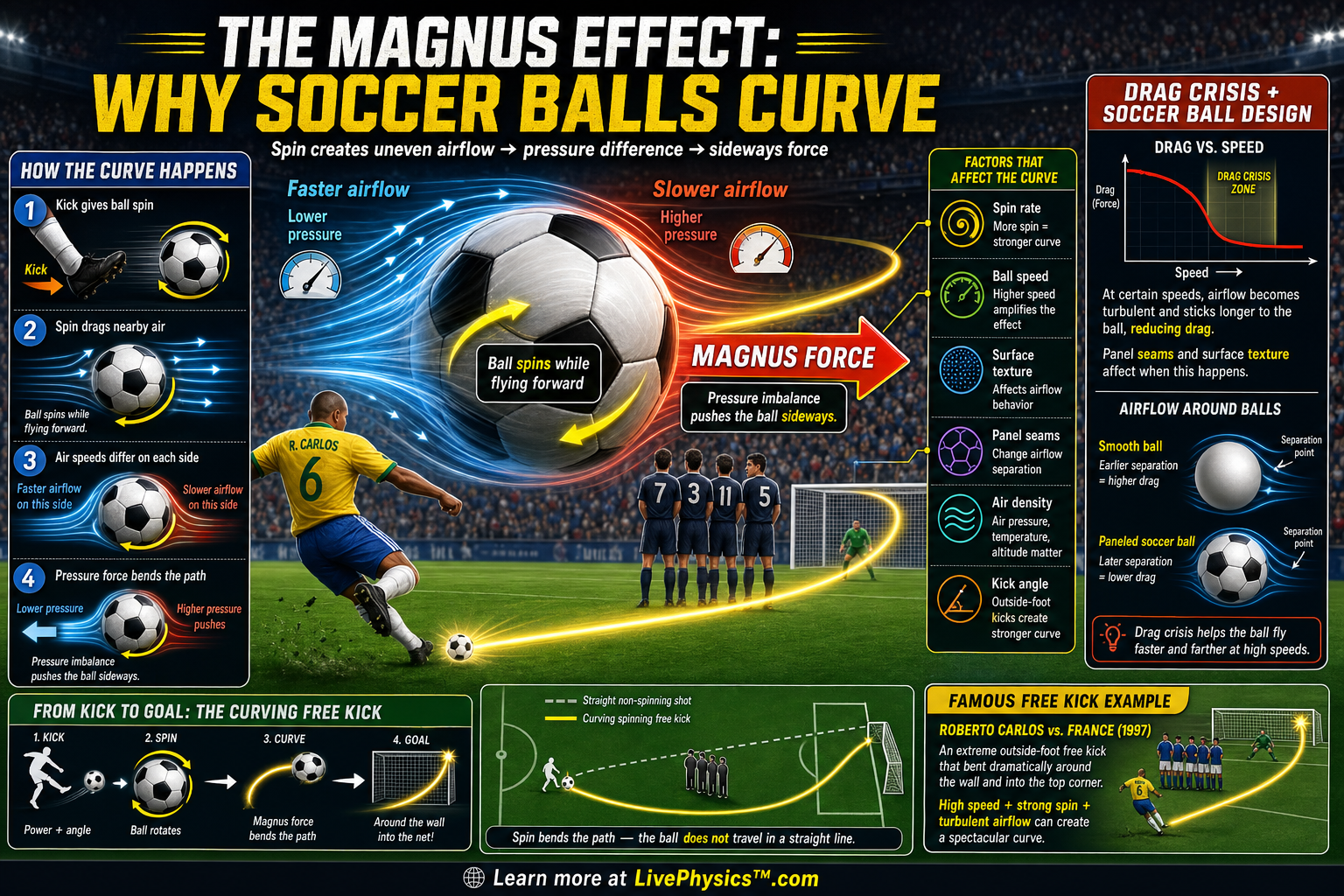

The Magnus Effect, Why Soccer Balls Curve
Spin, air pressure, and the drag crisis
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
A curving free kick is a physics lesson in motion, air, and spin. When a player strikes the side of a soccer ball, the ball travels forward while also rotating. That spin changes how air flows around the ball, creating a sideways force called the Magnus force. This is why a shot can start outside the goal, bend around a defensive wall, and still swerve into the net.
The effect happens because the spinning surface drags nearby air more strongly on one side than the other. On one side, the ball’s surface motion helps the airflow, while on the opposite side it fights the airflow, producing different speeds and pressures. The pressure difference pushes the ball sideways during flight, so its path curves. At high speeds, the ball’s seams and panels also affect drag, and near the drag crisis a small change in speed can strongly change how far and how sharply the ball flies.
Key Facts
- Magnus force is the sideways lift force on a spinning ball moving through air.
- For a rotating ball, F_M is roughly proportional to air density, cross-sectional area, speed squared, and spin effect: F_M ∝ ρAv^2.
- Newton’s second law gives sideways acceleration: a_side = F_M / m.
- Higher spin rate usually means more curve, if the ball keeps enough forward speed.
- Drag force opposes motion and is often modeled as F_D = 1/2 ρC_DAv^2.
- A soccer ball near the drag crisis can suddenly experience lower drag as airflow becomes turbulent and stays attached longer.
Vocabulary
- Magnus effect
- The curving of a spinning object moving through a fluid because the spin creates unequal airflow and pressure on opposite sides.
- Magnus force
- The sideways force on a spinning ball that makes its path bend through the air.
- Drag
- The air resistance force that acts opposite the direction of a ball’s motion.
- Pressure difference
- A difference in air pressure between two sides of an object that can produce a net force.
- Drag crisis
- A speed range where airflow around a ball changes from mostly smooth to more turbulent, often causing a sudden drop in drag.
Common Mistakes to Avoid
- Thinking the ball curves because it is kicked in a curved path. The ball leaves the foot nearly tangent to its initial direction, and the curve develops because air exerts a sideways force during flight.
- Ignoring spin direction when predicting the curve. A clockwise and counterclockwise spin, viewed from above, produce opposite sideways Magnus forces.
- Assuming more speed always means more bending. Higher speed increases aerodynamic forces, but it also reduces flight time, so the total sideways deflection depends on both force and time in the air.
- Treating the soccer ball as perfectly smooth. Real panels, seams, and surface texture affect airflow, drag, and how the Magnus effect appears at game speeds.
Practice Questions
- 1 A 0.43 kg soccer ball experiences an average sideways Magnus force of 1.8 N during a free kick. What is its sideways acceleration?
- 2 A ball travels for 1.2 s and has an average sideways acceleration of 4.0 m/s^2. If it starts with zero sideways velocity, how far sideways does it deflect? Use x = 1/2 at^2.
- 3 A right-footed player strikes the right side of the ball so that, viewed from above, the ball spins counterclockwise. Explain which way the ball will curve and why the airflow becomes asymmetric.
