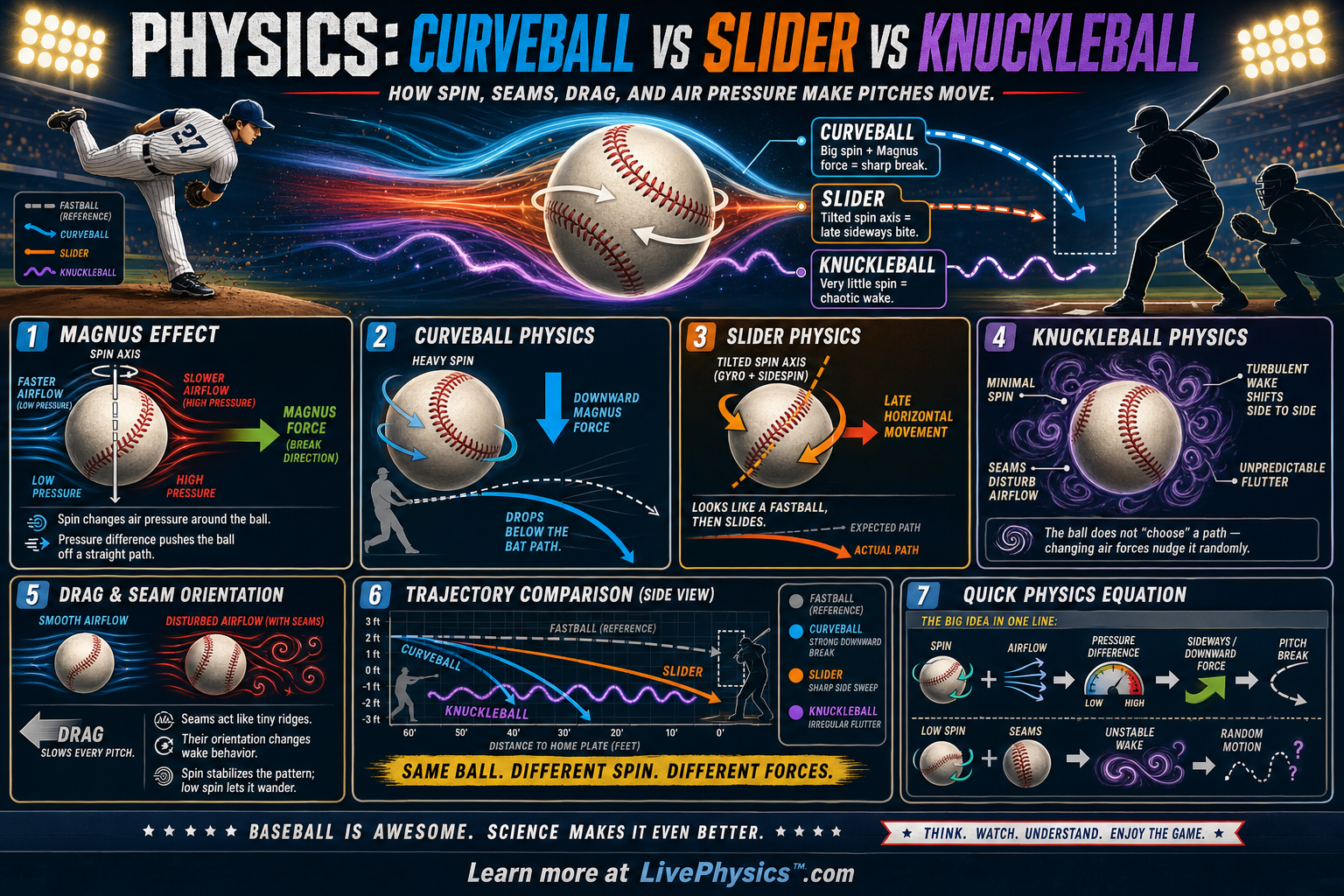

The Physics of a Curveball, Slider, and Knuckleball
Magnus force, drag, and turbulent wake
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
A baseball pitch is a fast-moving physics experiment, where speed, spin, seams, and air pressure shape the ball's path to the plate. Curveballs and sliders bend because the spinning ball pushes air differently on opposite sides, creating a sideways or downward force. Knuckleballs move unpredictably because they have very little spin, so the airflow around the seams changes from moment to moment. Understanding these pitches helps connect the excitement of baseball to forces, motion, and fluid dynamics.
Key Facts
- Drag force opposes motion and can be modeled as Fd = 1/2 ρ Cd A v^2.
- The Magnus force acts perpendicular to the ball's velocity and spin axis.
- For a curveball, topspin or tilted spin can create extra downward and sideways acceleration.
- A slider usually has faster speed and less vertical drop than a curveball, with a sharper lateral break.
- A knuckleball has very low spin, often less than 2 revolutions on the way to home plate.
- Time to plate can be estimated by t = d/v, where d is distance and v is average speed.
Vocabulary
- Magnus effect
- The Magnus effect is the force on a spinning ball caused by different airflow speeds and pressures on opposite sides of the ball.
- Drag
- Drag is the air resistance force that acts opposite the motion of the baseball and slows it down.
- Spin axis
- The spin axis is the imaginary line around which the baseball rotates as it travels.
- Turbulent wake
- A turbulent wake is the messy, swirling region of air behind a moving ball that can change the forces acting on it.
- Break
- Break is the sideways or downward change in a pitch's path compared with a straight pitch.
Common Mistakes to Avoid
- Thinking a curveball curves because it is thrown slower. Speed matters, but the main cause of the curve is the Magnus force from spin interacting with air.
- Drawing the Magnus force in the same direction as the ball's motion. The Magnus force is perpendicular to the velocity and depends on the spin axis.
- Assuming a knuckleball has no forces acting on it. It still has gravity and drag, but its low spin lets seam-driven airflow changes create irregular side forces.
- Ignoring the seams when comparing pitches. Seam orientation affects airflow, drag, and wake behavior, especially for sliders and knuckleballs.
Practice Questions
- 1 A pitch travels 18.4 m from mound to plate with an average speed of 40.0 m/s. Estimate the time the ball is in the air.
- 2 A curveball experiences an average sideways acceleration of 6.0 m/s^2 for 0.46 s. Using x = 1/2 at^2, estimate its sideways break in meters.
- 3 A curveball and a knuckleball are thrown at the same speed. Explain why the curveball follows a smoother bending path while the knuckleball may wobble unpredictably.
