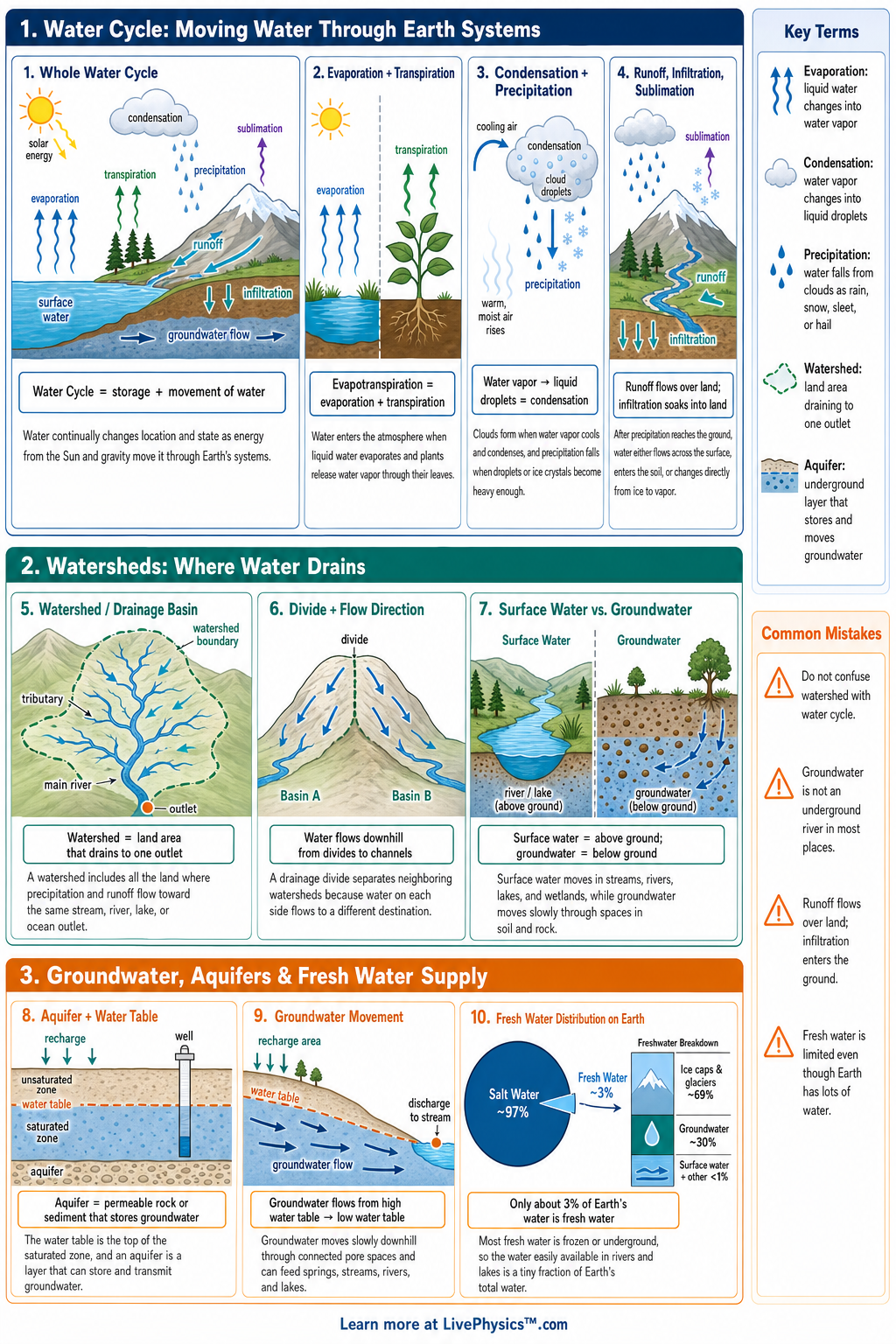

Water Cycle & Watersheds Cheat Sheet
A printable reference covering evaporation, condensation, precipitation, runoff, infiltration, watersheds, groundwater, and freshwater distribution for grades 3-10.
Related Tools
Related Labs
Related Worksheets
Related Infographics
The water cycle explains how water moves through the atmosphere, land, oceans, rivers, plants, and underground spaces. A watersheds cheat sheet helps students connect weather, landforms, rivers, soil, and human activity into one system. This topic is important because water movement affects floods, drinking water, erosion, ecosystems, and where people can live and farm. The most important processes are evaporation, condensation, precipitation, runoff, infiltration, transpiration, and collection. A watershed is the land area where water drains into the same river, lake, wetland, bay, or ocean. Groundwater forms when water soaks into soil and rock, then collects in aquifers. Most of Earth’s water is salt water, so protecting fresh water is essential.
Key Facts
- Evaporation changes liquid water into water vapor when energy from the Sun warms oceans, lakes, rivers, and wet soil.
- Condensation changes water vapor into liquid droplets or ice crystals, forming clouds, fog, or dew.
- Precipitation is water that falls from clouds as rain, snow, sleet, or hail when droplets or ice crystals become heavy enough.
- Runoff is water that flows over land into streams, rivers, lakes, or oceans when the ground cannot absorb all the water.
- Infiltration is water soaking into the ground, and percolation is the deeper movement of that water through soil and rock.
- A watershed is separated from nearby watersheds by high land called a divide, and all surface water in the watershed drains toward a common outlet.
- Groundwater is stored in pores and cracks below Earth’s surface, and an aquifer is a layer of rock or sediment that can hold and release usable water.
- About 97% of Earth’s water is salt water, about 3% is fresh water, and most fresh water is frozen in glaciers and ice caps.
Vocabulary
- Water cycle
- The continuous movement of water among Earth’s surface, atmosphere, living things, and underground areas.
- Watershed
- An area of land where water drains into the same stream, river, lake, wetland, bay, or ocean.
- Runoff
- Water that moves across the land surface instead of soaking into the ground.
- Infiltration
- The process in which water enters soil from the land surface.
- Aquifer
- An underground layer of rock, sand, or gravel that stores groundwater and can supply wells or springs.
- Transpiration
- The release of water vapor from plant leaves into the atmosphere.
Common Mistakes to Avoid
- Confusing evaporation and condensation is wrong because evaporation changes liquid water into gas, while condensation changes water vapor back into liquid droplets.
- Thinking all rain immediately enters rivers is wrong because some water infiltrates into the ground, some is used by plants, and some evaporates.
- Calling a watershed only a river is wrong because a watershed includes all the land area that drains water into that river or other outlet.
- Assuming groundwater is an underground lake is wrong because most groundwater fills tiny pores and cracks in soil, sediment, and rock.
- Forgetting that pollution follows water flow is wrong because oil, fertilizer, trash, and chemicals can be carried by runoff into streams, lakes, and groundwater.
Practice Questions
- 1 A storm drops 50 millimeters of rain on a town. If 20 millimeters infiltrates and 5 millimeters evaporates, how many millimeters become runoff or remain on the surface?
- 2 A watershed has three streams that carry 12 liters per second, 8 liters per second, and 15 liters per second into one river. What is the total streamflow entering the river?
- 3 About 3% of Earth’s water is fresh water. If a model represents all Earth’s water as 1,000 liters, how many liters represent fresh water?
- 4 Explain why paving land with roads and parking lots can increase flooding and reduce groundwater recharge in a watershed.
