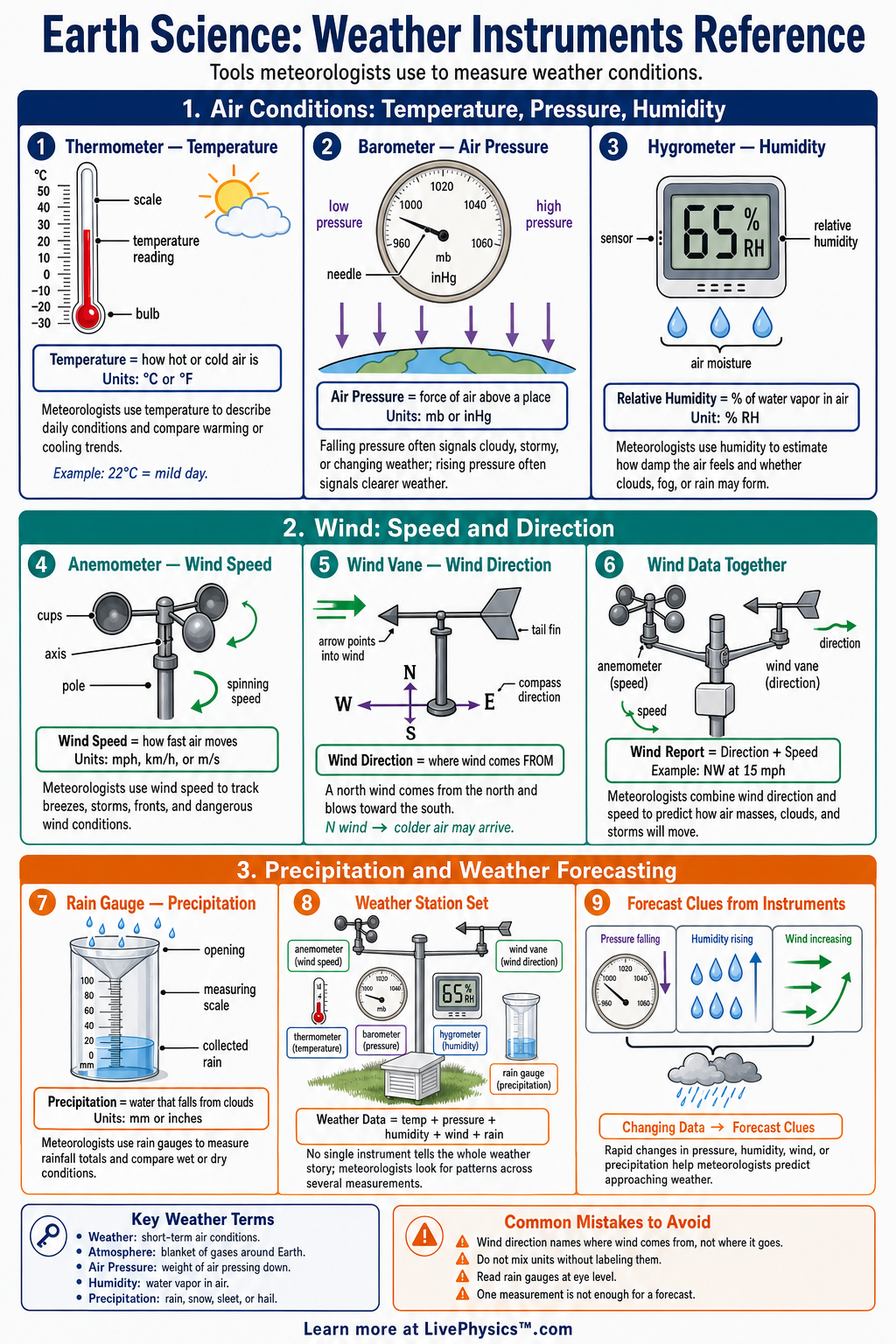

Weather Instruments Reference Cheat Sheet
A printable reference covering thermometers, barometers, anemometers, wind vanes, rain gauges, hygrometers, weather maps, and station models for grades 4-9.
Related Tools
Related Labs
Related Worksheets
Weather instruments help students measure and describe the atmosphere using real data. This reference covers the main tools meteorologists use to track temperature, air pressure, wind, humidity, precipitation, and cloud conditions. Students need these instruments to connect daily weather observations with patterns that can be used to make forecasts. A clear reference also helps students choose the correct tool for each weather variable. The core idea is that each instrument measures one main property of the atmosphere. A thermometer measures temperature, a barometer measures air pressure, an anemometer measures wind speed, and a wind vane shows wind direction. Rain gauges measure precipitation, while hygrometers or psychrometers measure humidity. Weather maps and station models combine these measurements so meteorologists can compare conditions across many locations.
Key Facts
- A thermometer measures air temperature, usually in degrees Celsius or degrees Fahrenheit, such as 20°C or 68°F.
- A barometer measures air pressure, and rising pressure often means clearer weather while falling pressure can mean clouds, wind, or storms.
- An anemometer measures wind speed, commonly in kilometers per hour, miles per hour, meters per second, or knots.
- A wind vane shows wind direction by pointing toward the direction the wind is coming from, such as north wind meaning wind from the north.
- A rain gauge measures liquid precipitation depth, usually in millimeters or inches, such as 12 mm of rain.
- Relative humidity tells how full the air is with water vapor, using the formula relative humidity = actual water vapor / maximum water vapor capacity x 100%.
- The dew point is the temperature at which air becomes saturated and water vapor begins to condense into liquid droplets.
- A station model is a compact weather symbol that can show temperature, pressure, wind speed, wind direction, cloud cover, and precipitation at one location.
Vocabulary
- Thermometer
- A thermometer is an instrument that measures air temperature using a liquid, digital sensor, or other temperature-sensitive material.
- Barometer
- A barometer is an instrument that measures atmospheric pressure, which is the force of air pressing on Earth.
- Anemometer
- An anemometer is an instrument that measures how fast the wind is moving.
- Wind vane
- A wind vane is an instrument that shows the direction from which the wind is blowing.
- Hygrometer
- A hygrometer is an instrument that measures the amount of water vapor in the air, often reported as relative humidity.
- Rain gauge
- A rain gauge is an instrument that collects and measures the depth of liquid precipitation that has fallen.
Common Mistakes to Avoid
- Confusing wind speed and wind direction is wrong because an anemometer measures speed while a wind vane shows direction.
- Reading wind direction as where the wind is going is wrong because wind direction is named for where the wind comes from.
- Using a thermometer in direct sunlight is wrong because the reading may show heating from sunlight instead of true air temperature.
- Forgetting units is wrong because 20°C, 20°F, 20 mm, and 20 km/h describe very different weather measurements.
- Assuming low pressure always means a storm is happening right now is wrong because falling or low pressure only shows that unsettled weather is more likely.
Practice Questions
- 1 A rain gauge collected 18 mm of rain during a storm. If 6 mm fell in the first hour, how many millimeters fell after the first hour?
- 2 A thermometer reads 12°C in the morning and 21°C in the afternoon. By how many degrees Celsius did the temperature increase?
- 3 An anemometer measures a wind speed of 24 km/h and a wind vane points north. What are the wind speed and wind direction?
- 4 Why would a meteorologist use several instruments together instead of relying on only one instrument to describe the weather?
