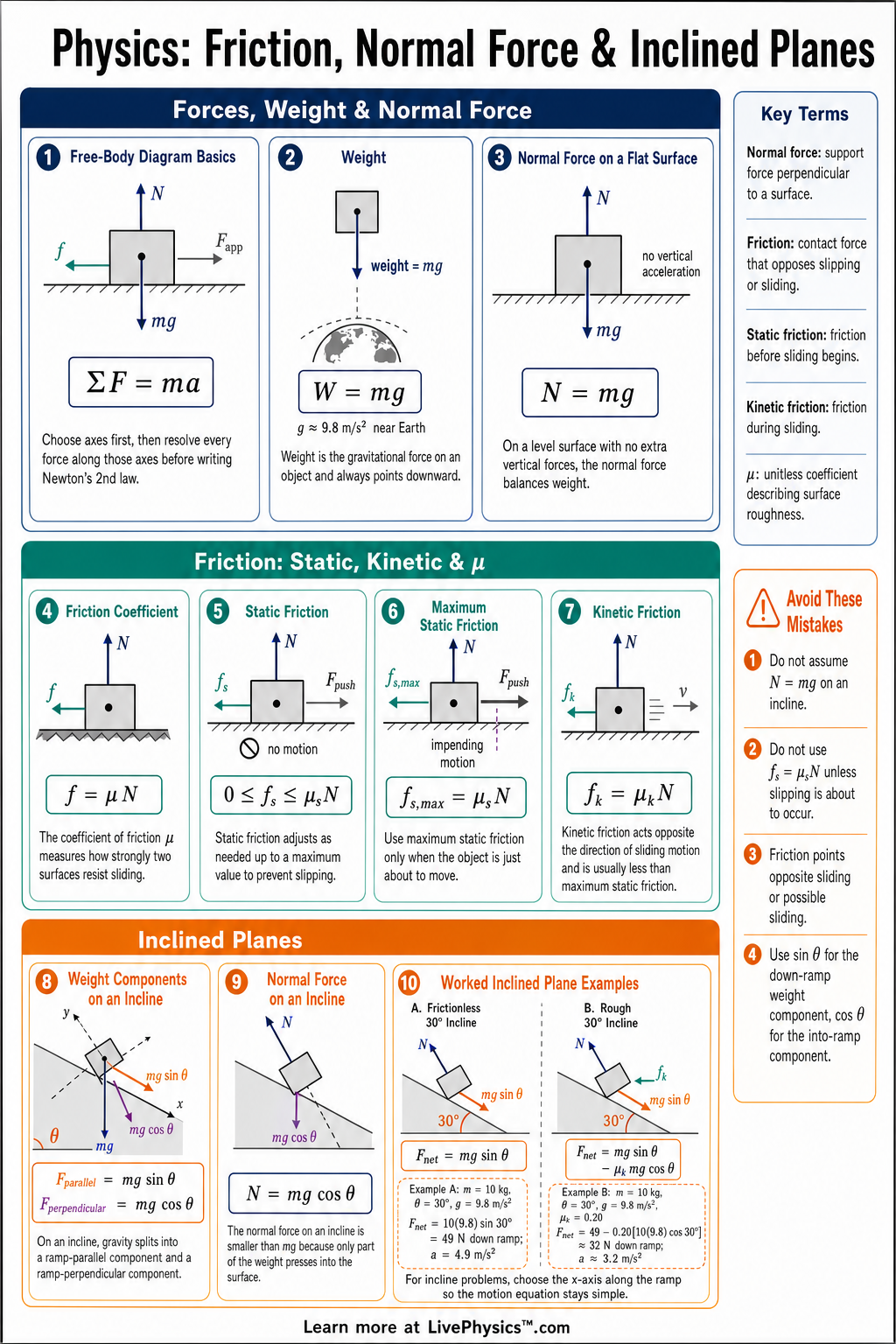

Friction, Normal Force & Inclined Planes Cheat Sheet

A printable reference covering friction, normal force, inclined planes, force components, and Newton’s second law for grades 9-12.

Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

This cheat sheet covers how friction, normal force, and gravity interact on flat surfaces and inclined planes. Students need these ideas to solve force problems, predict motion, and build accurate free-body diagrams. It is especially useful when choosing axes, separating weight into components, and deciding which friction formula applies.

Key Facts

The force of gravity on an object is its weight, given by $F_g = mg$ .
On a horizontal surface with no vertical acceleration, the normal force is $F_N = mg$ .
On an incline at angle $\theta$ with no acceleration perpendicular to the surface, the normal force is $F_N = mg\cos{\theta}$ .
The component of weight parallel to an incline is $F_{g,\parallel} = mg\sin{\theta}$ , directed down the slope.
The component of weight perpendicular to an incline is $F_{g,\perp} = mg\cos{\theta}$ , directed into the surface.
Kinetic friction is $f_k = \mu_k F_N$ and acts opposite the direction of sliding motion.
Static friction adjusts up to a maximum value of $f_s \leq \mu_s F_N$ and prevents slipping when possible.
Newton’s second law along any chosen axis is $\sum F = ma$ , so forces must be added with signs based on direction.

Vocabulary

Friction: Friction is a contact force that opposes relative motion or attempted motion between two surfaces.
Normal Force: The normal force is the support force exerted by a surface perpendicular to the surface.
Coefficient of Friction: The coefficient of friction, written $\mu$ , is a unitless number that describes how strongly two surfaces resist sliding.
Inclined Plane: An inclined plane is a tilted surface that changes how an object’s weight is split into parallel and perpendicular components.
Free-Body Diagram: A free-body diagram is a drawing that shows all external forces acting on one object.
Net Force: Net force is the vector sum of all forces on an object, written as $\sum F$ .

Common Mistakes to Avoid

Using $F_N = mg$ on an incline is wrong because the surface supports only the perpendicular component of weight, so usually $F_N = mg\cos{\theta}$ .
Pointing friction in the same direction as motion is wrong because kinetic friction opposes sliding, and static friction opposes the motion that would occur without it.
Using $f_s = \mu_s F_N$ for every static friction problem is wrong because static friction can be any value up to $f_{s,\max} = \mu_s F_N$ .
Mixing $\sin{\theta}$ and $\cos{\theta}$ for incline components is wrong because the downhill component is $mg\sin{\theta}$ and the perpendicular component is $mg\cos{\theta}$ when $\theta$ is measured from the horizontal.
Forgetting to choose positive directions is wrong because signs in $\sum F = ma$ determine whether forces speed up, slow down, or balance the object.

Practice Questions

1 A $12\,\text{kg}$ box rests on a horizontal floor. What is the normal force if $g = 9.8\,\text{m/s}^2$ ?
2 A $5.0\,\text{kg}$ block slides on a level surface with $\mu_k = 0.30$ . Find the kinetic friction force.
3 A $10\,\text{kg}$ crate is on a frictionless $30^\circ$ incline. Find $F_N$ and the component of gravity down the ramp.
4 A block rests without sliding on a rough incline. Explain how static friction changes as the incline angle increases.
