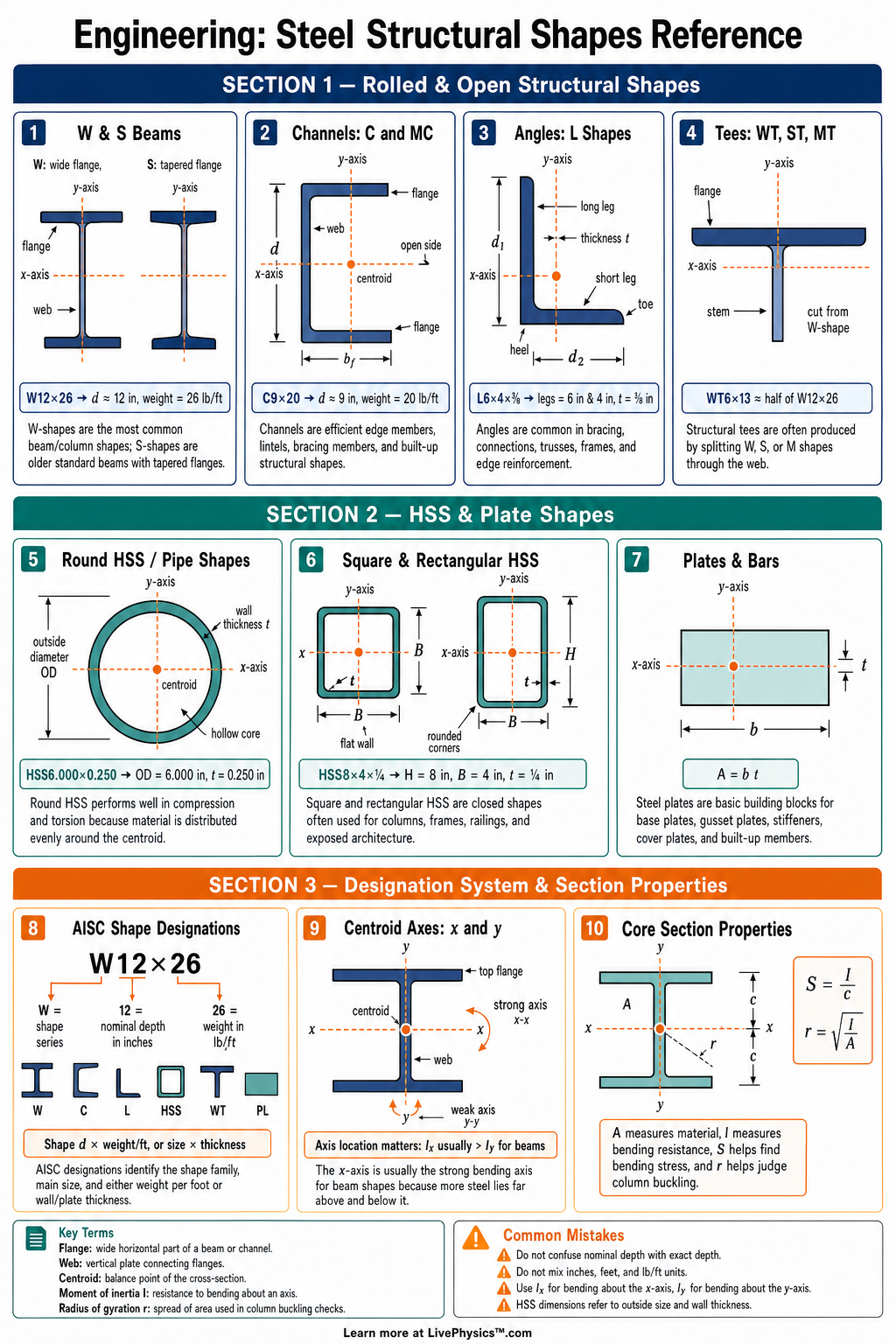

Steel structural shapes are standard manufactured forms used to build beams, columns, trusses, frames, platforms, and connections. This cheat sheet helps students recognize common steel shapes and understand why engineers choose one shape over another. It is useful for reading structural drawings, interpreting AISC shape names, and connecting geometry to strength.
The most important ideas are shape type, dimensions, weight per foot, and section properties such as area, moment of inertia, and section modulus. W-shapes are common for beams and columns because their flanges resist bending well. HSS shapes are closed tubes that work well in compression and torsion.
AISC designations such as W12x26 or HSS6x6x1/4 give key size information used in design and construction.
Key Facts
- A W-shape designation W12x26 means the shape is a wide-flange member about 12 inches deep and weighs 26 lb/ft.
- A channel designation C10x20 means the channel is about 10 inches deep and weighs 20 lb/ft.
- An angle designation L4x4x1/2 means the angle has two 4 inch legs and a 1/2 inch thickness.
- An HSS designation HSS6x6x1/4 means the hollow structural section is about 6 inches by 6 inches with a 1/4 inch wall thickness.
- A plate designation PL 1/2 x 8 means a flat steel plate is 1/2 inch thick and 8 inches wide.
- Cross-sectional area A is used in axial stress calculations with stress = force / area.
- Moment of inertia I describes resistance to bending deflection, and larger I usually means a stiffer member.
- Section modulus S is used for bending stress with bending stress = moment / section modulus.
Vocabulary
- Wide-flange shape
- A rolled steel member with two wide flanges and a web, commonly used for beams and columns.
- Channel
- A rolled steel shape with one web and two flanges on the same side, forming a C-shaped cross section.
- Angle
- A steel shape with two legs meeting at a right angle, often used for bracing, framing, and connections.
- Hollow Structural Section
- A closed steel tube with square, rectangular, or round shape that is useful for columns, trusses, and torsion-resistant members.
- Section modulus
- A section property that measures bending strength and is calculated as S = I / c.
- Moment of inertia
- A section property that measures how strongly a shape resists bending deflection about an axis.
Common Mistakes to Avoid
- Reading W12x26 as 12 inches wide by 26 inches deep is wrong because the second number is weight in pounds per foot, not a dimension.
- Assuming all steel shapes with the same depth have the same strength is wrong because flange width, web thickness, area, I, and S can be very different.
- Using the wrong axis for I or S is wrong because bending about the strong axis and weak axis gives very different results.
- Treating HSS wall thickness as exact without checking tables is risky because manufactured HSS dimensions may use design thickness values in manuals.
- Choosing a shape only by weight is wrong because the best member also depends on bending, compression, torsion, deflection, connections, and available sizes.
Practice Questions
- 1 A beam is labeled W16x31. About how deep is the beam, and how much does it weigh per foot?
- 2 A 20 ft long W12x26 beam is ordered. What is its approximate total weight in pounds?
- 3 A plate is labeled PL 3/8 x 10. Identify the plate thickness and width.
- 4 Why might an engineer choose an HSS column instead of a W-shape column in a visible building entrance?
Understanding Steel Structural Shapes Reference
A structural member does not use all of its steel equally. In a beam carrying a downward load, the material near the top is squeezed while the material near the bottom is stretched. Material close to the middle has much less bending stress.
This is why beam shapes place substantial material in flanges far from the center. The web mainly keeps those flanges separated and carries shear force.
Shear is greatest near supports, where the beam transfers load into walls, columns, or other beams. A beam may be strong enough against bending yet still need a thicker web or added stiffener plates to prevent web buckling near a heavy reaction.
Section properties depend on direction. A member can be very stiff when bent about its strong axis but much more flexible when turned ninety degrees. Students should picture a ruler held flat, then held on edge.
The same material bends differently because its shape is arranged differently relative to the load. Tables list properties for each principal axis, so choosing the wrong axis gives an unrealistic result. The radius of gyration is another useful property.
It describes how spread out the area is from an axis. Engineers use it when checking columns because a slender member tends to buckle sideways before the steel reaches its full compressive strength.
Columns, braces, and beams can fail in ways that are not obvious from a simple stress calculation. A long compression member may bow outward. A narrow beam flange may wrinkle under compression.
An open shape such as a channel or angle can twist when the load does not pass through the right location. Closed tubular sections resist twisting well because the material forms a continuous loop. Connections matter just as much as the member itself.
Bolts, welds, gusset plates, bearing surfaces, and bolt holes must all transfer forces safely. A strong beam connected by a weak plate is not a strong system.
Real structural drawings show more than member size. They show member marks, elevations, connection details, load paths, and notes about steel grade. A load path traces gravity loads from a floor or roof into beams, then columns, foundations, and soil.
Wind and earthquake loads follow different paths through braces, shear walls, frames, and foundations. When reading a shape table, check the units, the actual dimensions, the area, the relevant axis properties, and the listed weight. Weight affects shipping, lifting, cost, and the structure's own dead load.
Early shape selection is an informed estimate. Final design requires load combinations and code checks for strength, deflection, buckling, connection behavior, fire protection, and corrosion exposure.
