How an Electric Car Works

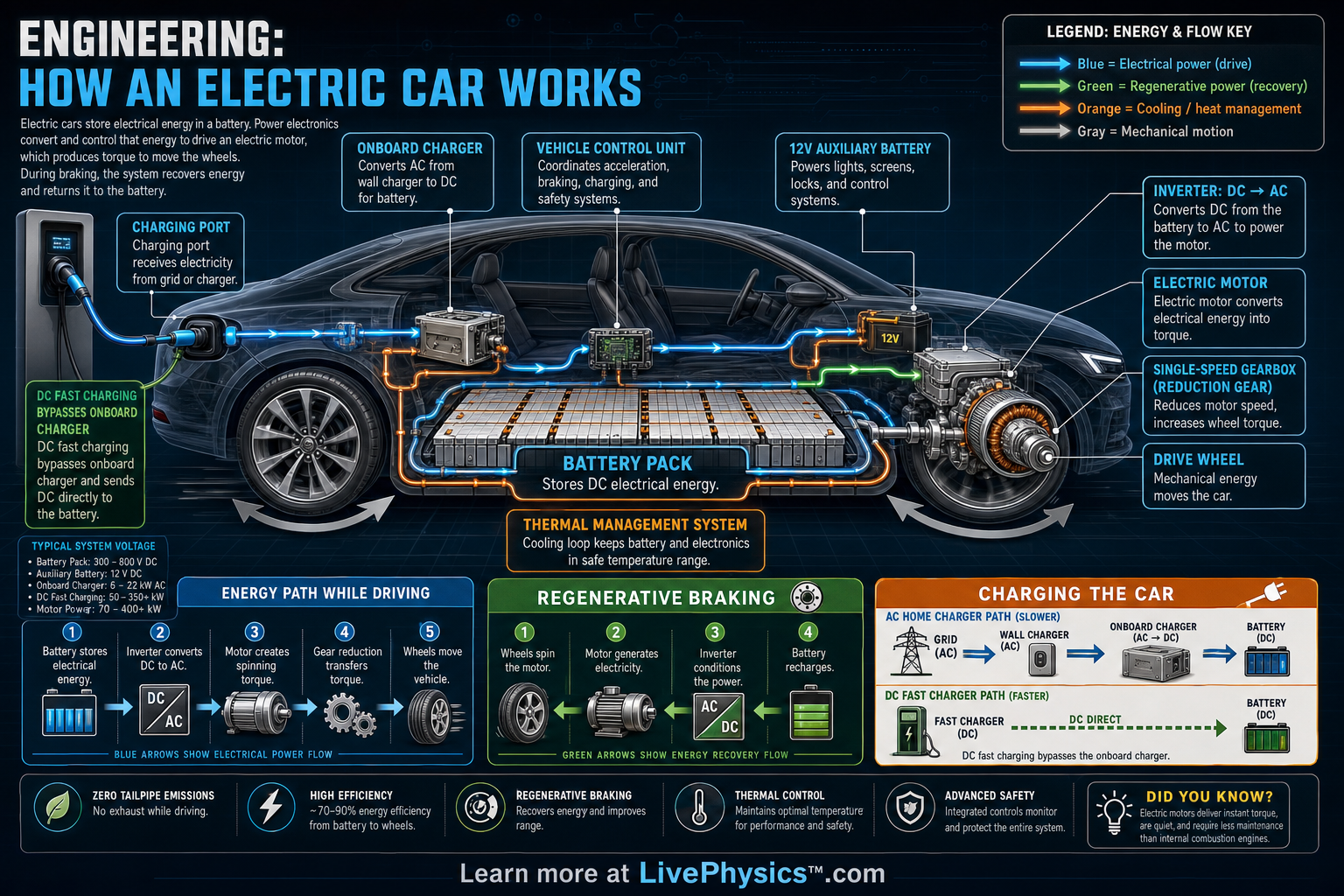

Battery pack, inverter, motor, and regenerative loop
Related Labs
Related Worksheets
Related Cheat Sheets
An electric car converts stored electrical energy into motion using a battery pack, power electronics, and one or more electric motors. Unlike a gasoline car, it does not need combustion, exhaust, or a multi-speed transmission to produce useful torque. This matters because electric drivetrains can be efficient, quiet, and responsive, with fewer moving parts. Understanding the energy path helps explain range, charging time, acceleration, and regenerative braking.
Key Facts
- Electrical power is P = VI, where P is power in watts, V is voltage, and I is current.
- Battery energy is often measured in kilowatt-hours: 1 kWh = 3.6 x 10^6 J.
- Driving range can be estimated by range = battery energy / energy use per distance.
- Motor mechanical power is P = τω, where τ is torque and ω is angular speed.
- Regenerative braking converts some kinetic energy back into electrical energy, but it is never 100% efficient.
- Charging time can be estimated by time = battery energy added / charging power.
Vocabulary
- Battery pack
- A large group of electrochemical cells that stores electrical energy for the vehicle.
- Inverter
- A power electronic device that converts direct current from the battery into alternating current for the motor.
- Electric motor
- A machine that converts electrical energy into rotating mechanical energy to drive the wheels.
- Regenerative braking
- A braking process in which the motor acts as a generator and returns some energy to the battery.
- Thermal management system
- A system of coolant loops, pumps, radiators, and sensors that keeps the battery, motor, and electronics within safe temperature limits.
Common Mistakes to Avoid
- Assuming the battery sends power straight to the wheels, which is wrong because power must pass through electronics and a motor before it becomes mechanical motion.
- Confusing energy with power, which is wrong because energy in kWh describes how much is stored while power in kW describes how fast it is used or delivered.
- Thinking regenerative braking fully recharges the car, which is wrong because friction, electrical resistance, battery limits, and tire losses waste part of the energy.
- Ignoring temperature effects, which is wrong because cold or hot batteries can charge more slowly, deliver less power, and lose efficiency.
Practice Questions
- 1 An electric car has a 75 kWh battery and uses 0.25 kWh per mile. Estimate its driving range in miles.
- 2 A charger supplies 11 kW of power. About how long does it take to add 44 kWh of energy, ignoring losses?
- 3 Explain why an electric car can produce strong acceleration from low speed without needing a traditional multi-speed transmission.
