Simple machines are basic mechanical devices that make work easier by changing the size or direction of a force. Engineers still use them today because almost every complex machine is built from these simple ideas. Cranes, elevators, robotic arms, and vehicle systems all rely on simple machines working together.
Understanding them helps students see how physics becomes real technology.

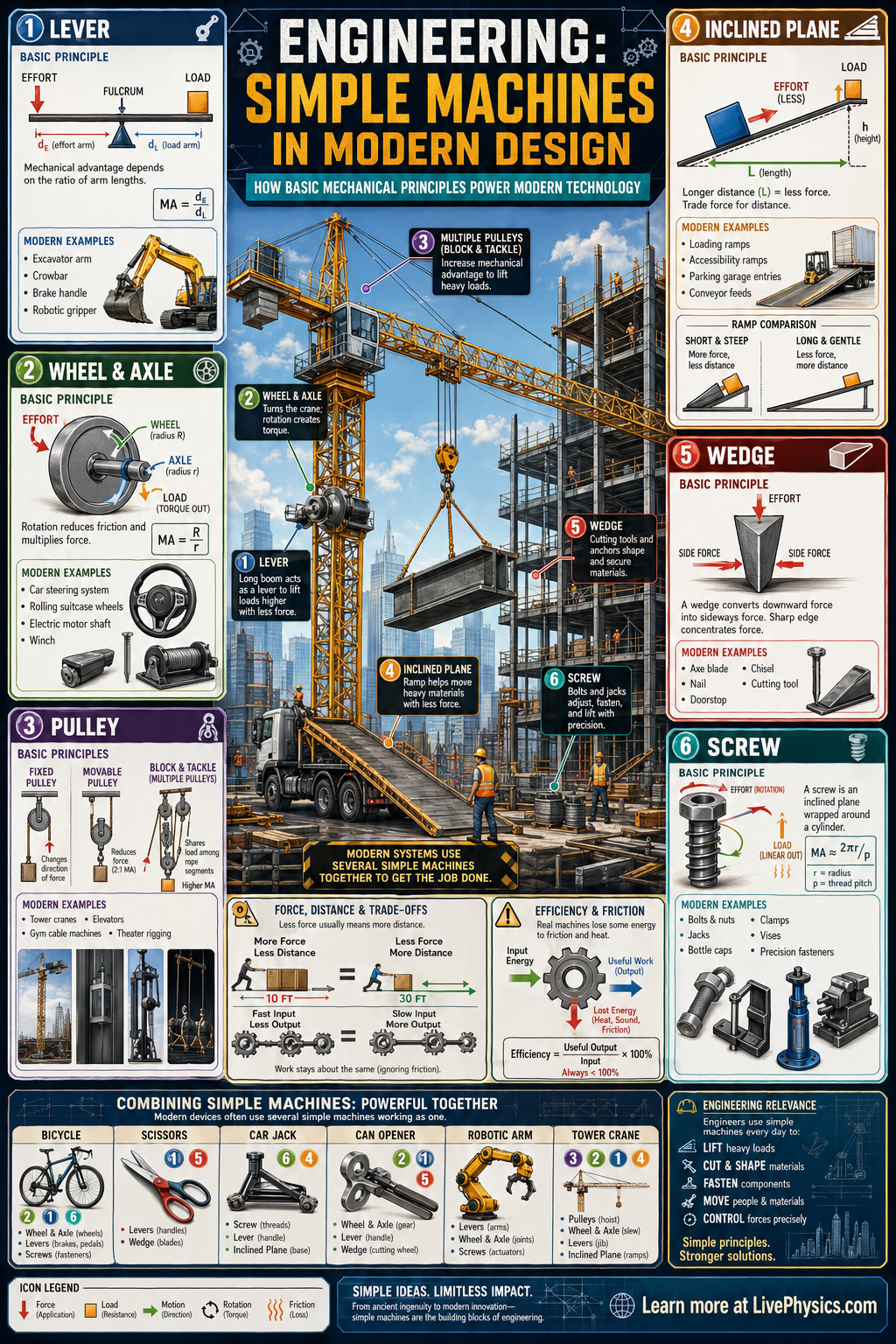

In modern design, engineers combine levers, pulleys, wheels and axles, inclined planes, screws, and wedges to solve practical problems. A construction crane, for example, uses pulleys to lift loads, levers to balance forces, and wheels and axles in its motor systems. These machines do not reduce the total work needed, but they let designers trade force for distance, speed, or direction.
This makes systems safer, more efficient, and better suited to human needs.
Understanding Mechanical Engineering: Simple Machines in Modern Design
A simple machine changes the way forces act, but every design has limits. Friction turns some useful input energy into heat. Rope bends over pulley wheels, gear teeth rub, bearings resist turning, and surfaces on a ramp scrape together.
Real machines therefore need more input work than the ideal calculations predict. Engineers reduce these losses with smooth bearings, lubrication, strong materials, and careful alignment.
They must still plan for wear, dirt, rust, and poor maintenance. A mechanism that works well in a clean classroom may fail at a building site or inside a farm machine.
Levers show why position matters as much as force. A long handle on a wrench lets a person create a large turning effect with a modest push. The same idea appears in bicycle brake handles, scissors, wheelbarrows, and robotic grippers.
Designers choose the pivot location to suit the job. A tool made to multiply force usually moves its load through a smaller distance. A tool made for speed or a wide movement needs a different arrangement.
Students should track three parts in every lever system. These are the pivot, the input force, and the load. This makes complicated linkages easier to understand.
Gears and pulley systems control motion as well as lifting force. Meshed gears reverse rotation direction. Different gear sizes can make an output shaft turn slower with greater turning force, or faster with less turning force.
Car transmissions use several gear ratios because a vehicle needs strong wheel turning force when starting, yet needs efficient rotation at cruising speed. Timing belts and chains keep parts moving in a fixed relationship.
In a pulley block, the load may be supported by several rope sections, but the free end of the rope must travel farther. This distance requirement affects drum size, cable length, motor speed, and the space available inside a machine.
Screws, wedges, and inclined surfaces are especially useful when a large force must be applied gradually or held in place. A screw converts turning motion into straight motion. Its thread acts like a ramp wrapped around a cylinder.
Fine threads move a small distance per turn and can provide strong clamping in a vice or bolt. Coarser threads move faster but may need more turning force. Wedges split, cut, or press materials apart in knives, axes, doorstops, and manufacturing presses.
Their angle matters. A narrow wedge can concentrate force well, though it may be less durable. When studying a modern mechanism, identify each simple machine, mark where motion enters and leaves, then notice the trade between force, distance, speed, and friction.
Key Facts
- Mechanical advantage tells how much a machine multiplies force: MA = output force / input force
- Work is force times distance: W = Fd
- In an ideal machine, input work equals output work: Fin din = Fout dout
- For a lever in balance, torques are equal: F1d1 = F2d2
- For an inclined plane, ideal mechanical advantage is MA = length / height
- For a pulley system, more supporting rope segments usually means greater mechanical advantage
Vocabulary
- Mechanical advantage
- Mechanical advantage is the factor by which a machine increases an input force.
- Lever
- A lever is a rigid bar that pivots around a fixed point called a fulcrum.
- Pulley
- A pulley is a grooved wheel with a rope or cable that changes the direction or size of a lifting force.
- Inclined plane
- An inclined plane is a sloped surface that reduces the force needed to raise an object.
- Torque
- Torque is the turning effect of a force applied at a distance from a pivot.
Common Mistakes to Avoid
- Thinking a machine reduces the total work required, which is wrong because an ideal machine only changes how force and distance are traded.
- Ignoring friction, which is wrong because real machines lose energy and have lower efficiency than ideal calculations predict.
- Using the wrong distance in lever problems, which is wrong because torque depends on the distance from the fulcrum, not the total length of the bar.
- Assuming every pulley gives the same mechanical advantage, which is wrong because the advantage depends on how many rope segments support the load.
Practice Questions
- 1 A lever has a 0.50 m effort arm and a 0.10 m load arm. If you push down with 80 N, what output force can the lever ideally produce?
- 2 A worker pushes a 600 N crate up a ramp that is 3.0 m long and 0.75 m high. What is the ideal mechanical advantage of the ramp, and what input force is needed if friction is ignored?
- 3 A construction crane uses pulleys, levers, and wheels and axles in one system. Explain how combining several simple machines can make lifting heavy materials safer and more efficient than using only one simple machine.
