The Human Voice as an Instrument
Vocal Anatomy and Sound Production
Related Tools
Related Worksheets
The human voice is a biological instrument that can produce a huge range of pitches, tones, and volumes. Unlike a violin or flute, the voice is built from living tissue that constantly adjusts itself while you speak or sing. Understanding how the voice works helps students connect physics, biology, and music in one system. It also explains why breath control, posture, and resonance matter so much in performance.

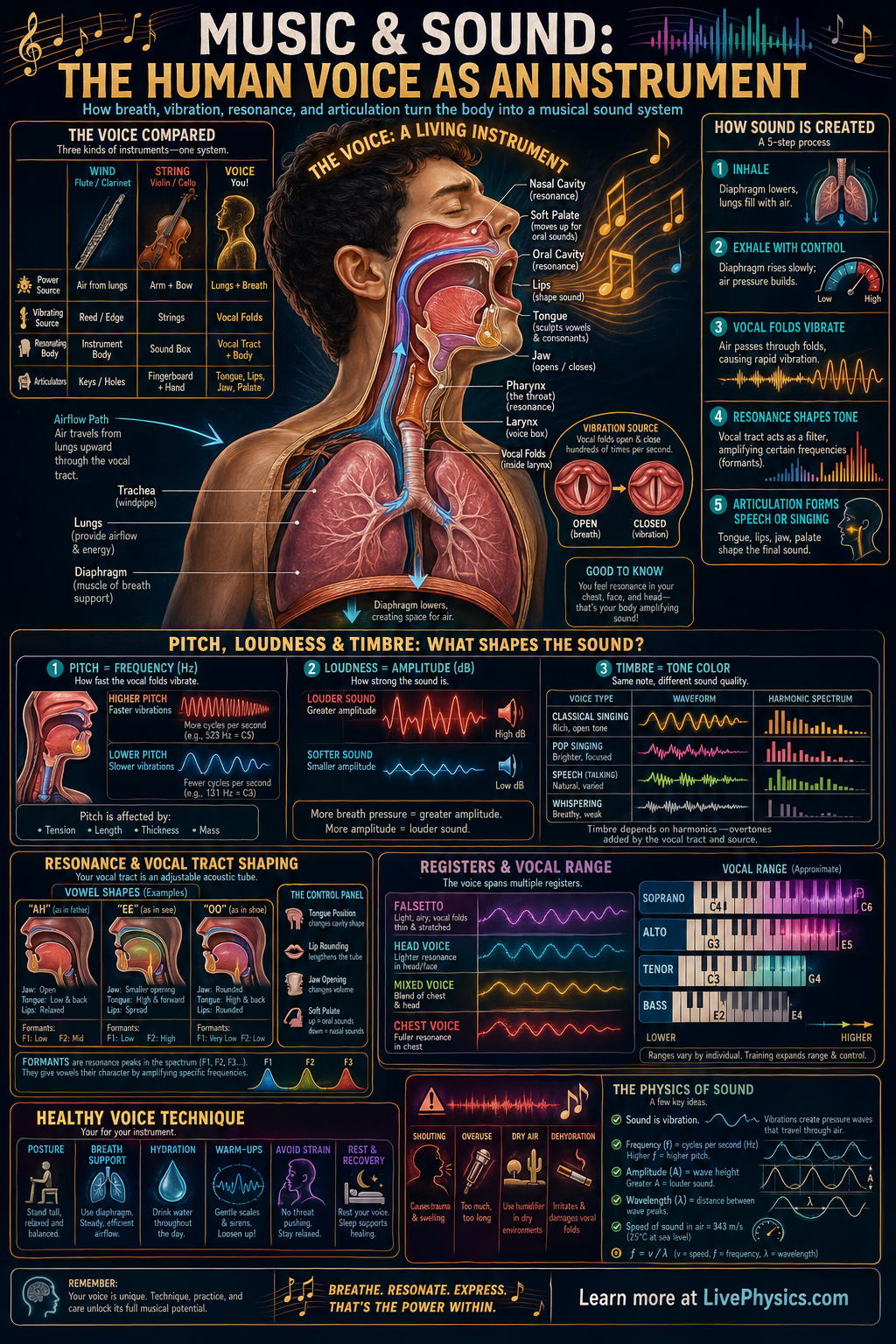

Voice production begins when air from the lungs moves upward through the trachea and sets the vocal folds into vibration inside the larynx. The vibration creates a basic sound, and then the throat, mouth, and nasal cavity shape that sound by resonance and articulation. Pitch depends mainly on how fast the vocal folds vibrate, while loudness depends largely on airflow and pressure. The final sound is a result of coordinated action between respiration, vibration, resonance, and precise movement of the tongue, lips, and jaw.
Key Facts
- Sound frequency determines pitch, and pitch increases as vocal fold vibration frequency increases.
- f = 1/T, where f is frequency and T is the period of one vibration cycle.
- Loudness is related to sound intensity, and higher breath pressure generally increases amplitude.
- The larynx contains the vocal folds, which open and close rapidly to create a periodic sound wave.
- Resonance in the vocal tract amplifies certain frequencies called formants, which shape vowel quality.
- v = fλ, so for a sound wave the wave speed equals frequency times wavelength.
Vocabulary
- Vocal folds
- Two bands of tissue in the larynx that vibrate as air passes through them to produce sound.
- Larynx
- The structure in the throat that houses the vocal folds and controls sound production.
- Resonance
- The strengthening of certain sound frequencies as vibrations interact with the vocal tract.
- Formant
- A resonant frequency of the vocal tract that helps determine the characteristic quality of a vowel sound.
- Amplitude
- The size of a sound wave's vibration, which is related to how loud the sound is.
Common Mistakes to Avoid
- Thinking the lungs create pitch, which is wrong because the lungs mainly provide airflow while pitch is set mostly by vocal fold vibration rate.
- Assuming louder sound always means higher pitch, which is wrong because loudness depends mainly on amplitude and pressure while pitch depends on frequency.
- Believing the mouth alone makes the voice, which is wrong because sound starts at the vocal folds and is only shaped later by the vocal tract.
- Ignoring resonance when comparing voices, which is wrong because two people can sing the same pitch but sound different due to different vocal tract resonances.
Practice Questions
- 1 A singer produces a note at 220 Hz. What is the period T of one vocal fold vibration cycle? Use T = 1/f.
- 2 A vocal sound wave travels through air at 340 m/s and has a frequency of 680 Hz. What is its wavelength? Use v = fλ.
- 3 Two singers produce the same pitch, but one sounds brighter and more nasal. Explain how differences in resonance and vocal tract shape can cause this.
