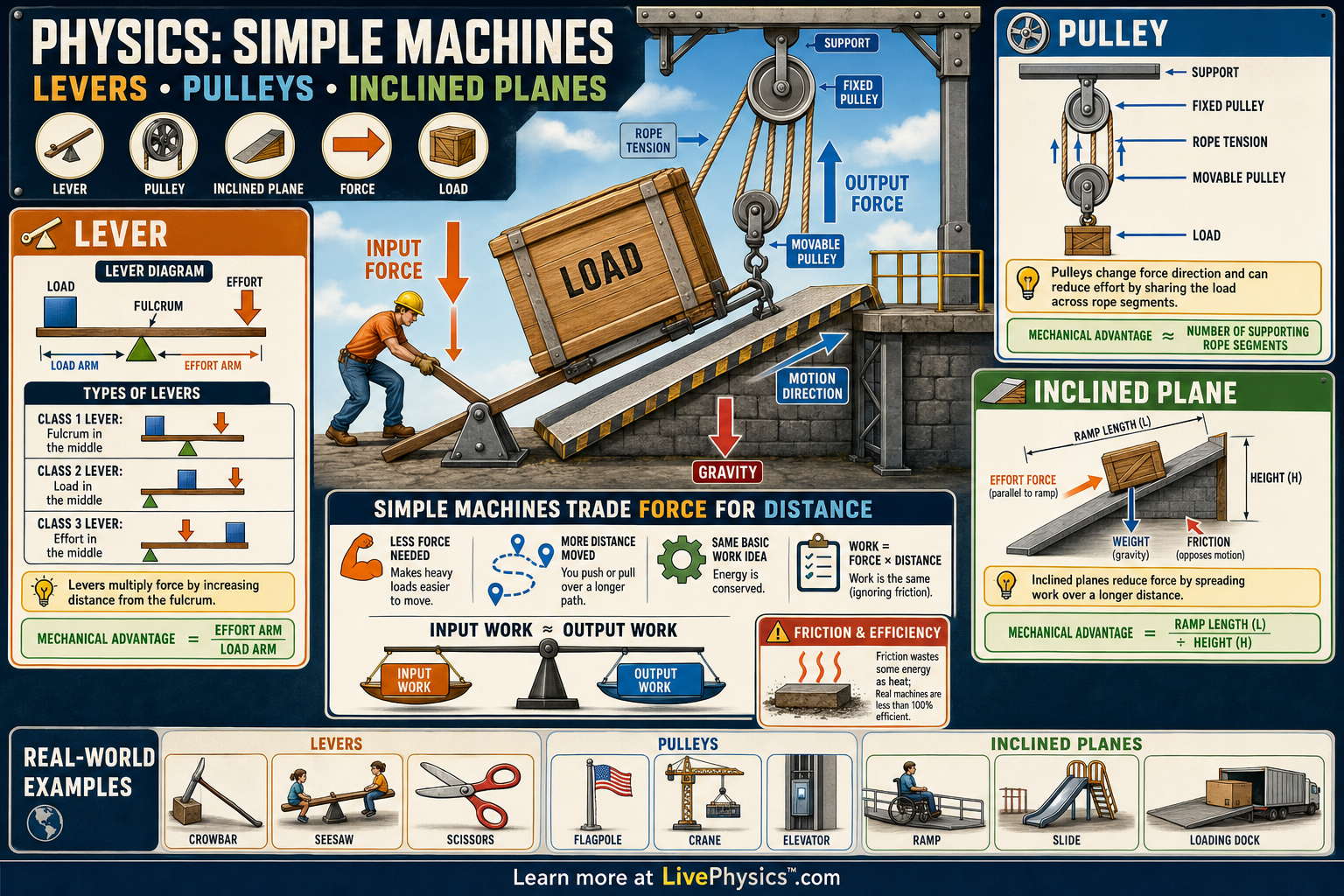

Click image to open full size
Simple Machines
Levers Pulleys and Inclined Planes
Related Tools
Related Labs
Related Worksheets
Simple machines are basic devices that make work easier by changing the size or direction of a force. Levers, pulleys, and inclined planes do not remove the need for work, but they let a smaller force act over a longer distance. This is why a worker can lift, pull, or move a heavy crate using tools instead of only muscle. Understanding simple machines helps explain real devices such as cranes, ramps, crowbars, wheelbarrows, and elevators.
The key idea is mechanical advantage, which compares the output force from a machine to the input force applied to it. In an ideal machine with no friction, the work input equals the work output, so Finput dinput = Foutput doutput. A lever uses rotation about a fulcrum, a pulley uses rope tension and support strands, and an inclined plane spreads a height change over a longer distance. Real machines lose some energy to friction, bending, and heat, so their efficiency is always less than 100 percent.
Key Facts
- Work is force times distance in the direction of motion: W = Fd.
- Ideal machines conserve work: Finput dinput = Foutput doutput.
- Mechanical advantage is the ratio of output force to input force: MA = Fout / Fin.
- For a lever in balance, torque in equals torque out: Fin din = Fout dout.
- For an ideal inclined plane, the input force is Fin = mg(h/L), where h is height and L is ramp length.
- For an ideal pulley system, mechanical advantage equals the number of rope segments supporting the load.
Vocabulary
- Simple machine
- A simple machine is a basic device that changes the size or direction of a force to make work easier.
- Mechanical advantage
- Mechanical advantage is the factor by which a machine multiplies an input force.
- Lever
- A lever is a rigid bar that rotates around a fixed point called a fulcrum.
- Pulley
- A pulley is a grooved wheel with a rope or cable that changes the direction of force or multiplies force.
- Inclined plane
- An inclined plane is a slanted surface that reduces the force needed to raise an object by increasing the distance over which the force is applied.
Common Mistakes to Avoid
- Assuming a simple machine reduces the total work required is wrong because an ideal simple machine trades force for distance while keeping work the same.
- Ignoring friction is wrong in real problems because friction increases the input force and lowers efficiency.
- Counting the wrong rope segments in a pulley system is wrong because only rope segments directly supporting the moving load contribute to mechanical advantage.
- Using the full lever length instead of the distance from the fulcrum is wrong because torque depends on the perpendicular distance from the pivot to the force.
Practice Questions
- 1 A 600 N crate is lifted with a lever. The load is 0.40 m from the fulcrum, and the effort is applied 1.60 m from the fulcrum. What input force is needed for balance if the lever is ideal?
- 2 A worker pushes a 500 N crate up a frictionless ramp that is 4.0 m long and 1.0 m high. What force parallel to the ramp is required?
- 3 A fixed pulley lets a student pull downward to lift a bucket upward, while a movable pulley system lets the student lift the same bucket with less force. Explain why the movable pulley reduces the needed force but does not reduce the total ideal work.
